250 Sport XS - Serial 1E051824 and Up - Shift Linkage

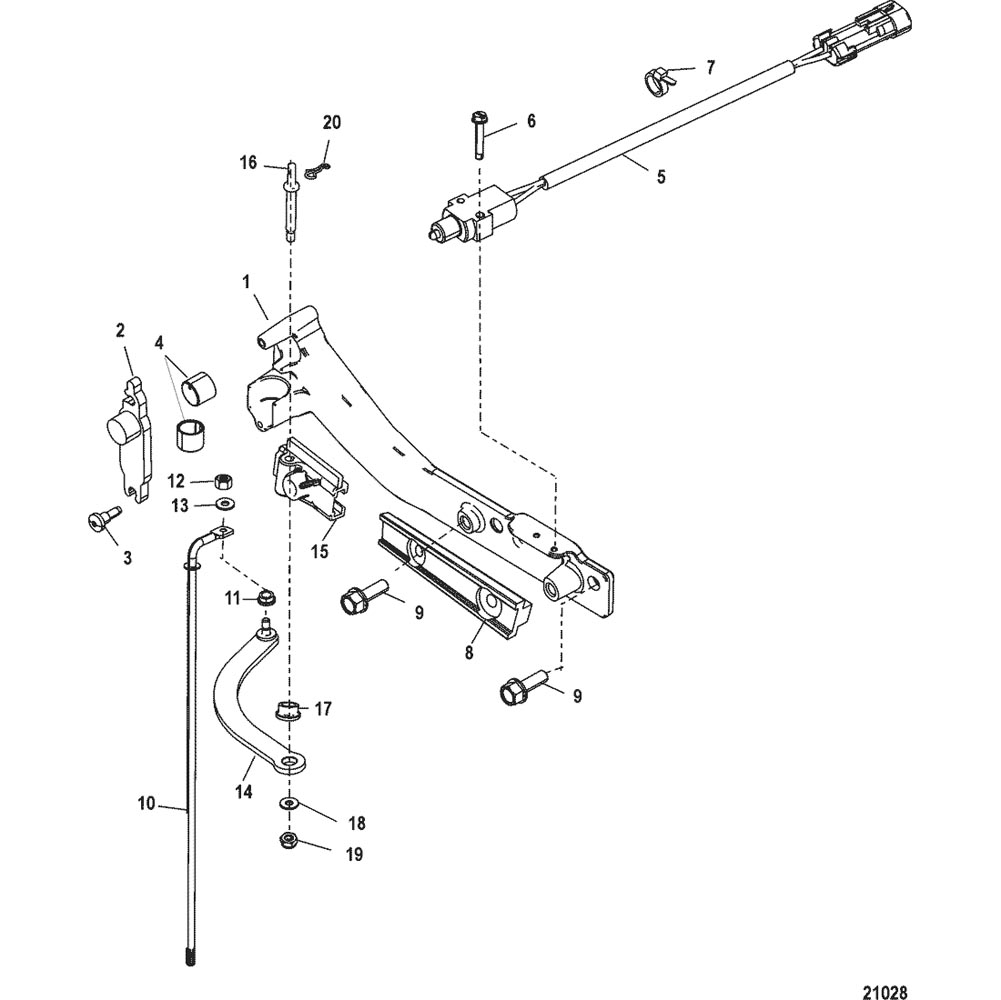

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 899080T01         BRACKET ASSEMBLY, Anchor 1
2 824016         LATCH 1
3 10-42975         DRIVE SCREW 2
4 824015         CUP, Barrel Retainer 2
5 87-8M0052939         SWITCH 1
6 10-82470620         SCREW, (M3.5 x 20) 2
7 54-816311T         TIE STRAP, (8.00 Inches) 1
8 8M0033943         SHIFT RAIL 1
9 8M0006893         SCREW, (M8 x 25 MM) 4
10 8M0026171         SHIFT SHAFT, Upper 1
10 8M0026172         SHIFT SHAFT, Upper 1
10 8M0026173         SHIFT SHAFT, Upper 1
11 23-892263         BUSHING 1
12 11-401386         NUT, (M6) Stainless Steel 1
13 12-69056         WASHER, (.255 x .620 x .030) Stainless Steel 1
14 899083         LINK, Shift 1
15 8M0085621         SLIDE, Shift 1 899082
16 8M0000793         PIN, Shift Link 1
17 23-896551         BUSHING 1
18 12-69056         WASHER, (.255 x .620 x .030) Stainless Steel 1
19 11-401386         NUT, (M6) Stainless Steel 1
20 8M0001157         PIN, Bow Tie Clip 1
