250 Sport XS - Serial 1E051824 and Up - Bottom Cowl

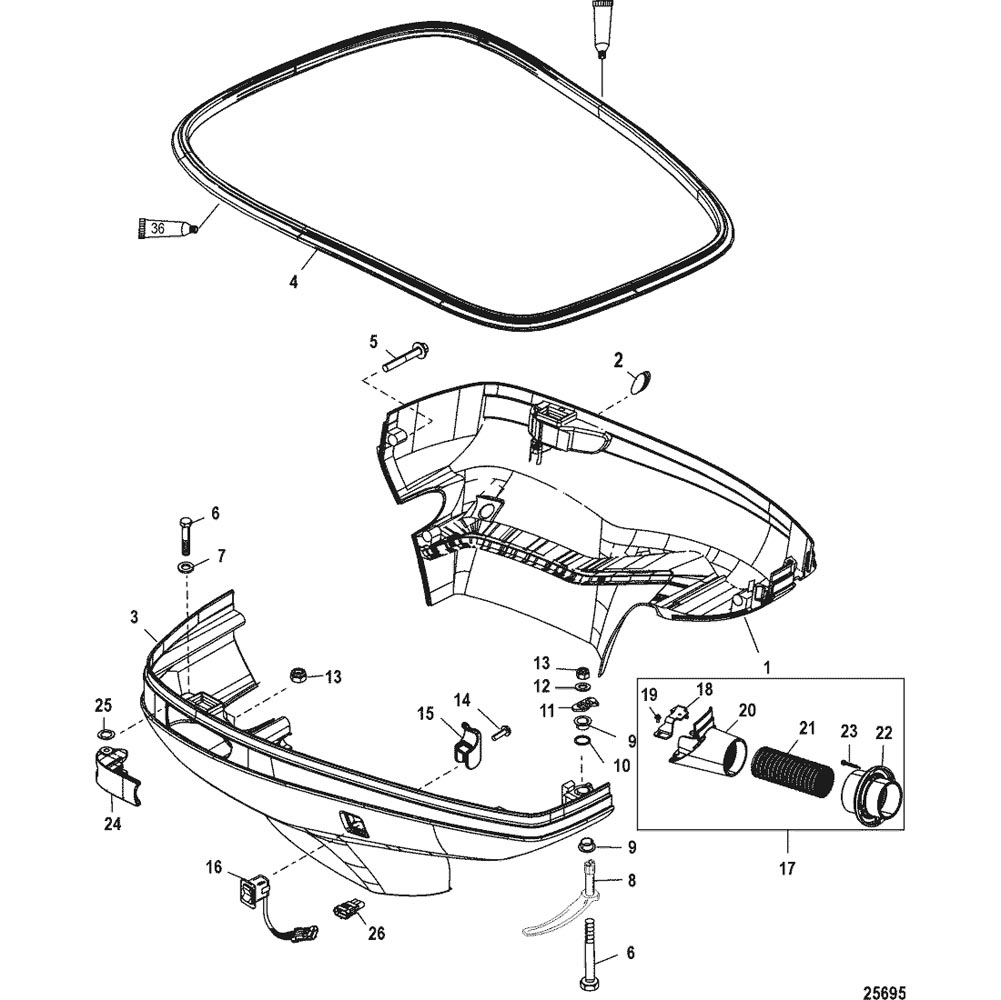

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Shift Linkage
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 113-8M0107324 | BOTTOM COWL, Port | 1 | 850302A07 | No Longer Available | ||||
| 2 | 854367001 | PLUG | 1 | ||||||
| 3 | 113-8M0107323 | BOTTOM COWL, Starboard | 1 | 850301A07 | No Longer Available | ||||
| 4 | 8M0043268 | SEAL, Cowl | 2 | 844155001 | |||||
| 5 | 10-82130040 | SCREW, (M6 x 40) | 4 | ||||||
| 6 | 10-824868 | SCREW, (M6 x 75) | 3 | ||||||
| 7 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 8 | 8M0053903 | FRONT HANDLE | 1 | 850684F1 | |||||
| 9 | 23-335891 | BUSHING | 2 | ||||||
| 10 | 25-48462 | O-RING, (.614 x .070) | 1 | ||||||
| 11 | 8219423 | PAWL | 1 | ||||||
| 12 | 12-69057 | WASHER, (.281 x .734 x .063) | 1 | ||||||
| 13 | 11-401366 | NUT, (M6) Stainless Steel | 3 | ||||||
| 14 | 10-8214281 | SCREW, (#10-16 x .625) | 1 | ||||||
| 15 | 54-822873 | CLIP | 1 | ||||||
| 16 | 87-8M0042300 | SWITCH, Trim | 1 | 896620001 | |||||
| 17 | 32-842756T01 | RIGGING KIT | 1 | ||||||
| 18 | 842744002 | BRACKET | 1 | ||||||
| 19 | 10-82130012 | SCREW, (M6 x 12) | 3 | ||||||
| 20 | 843185T02 | COUPLER | 1 | ||||||
| 21 | 32-842756005 | HOSE | 1 | ||||||
| 22 | 843174002 | COUPLER | 1 | ||||||
| 23 | 10-47994 | SCREW, (#10 x 1.50) | 4 | ||||||
| 24 | 852361T1 | HANDLE, Cowl | 2 | No Longer Available | |||||
| 24 | 852361T02 | HANDLE | 2 | ||||||
| 25 | 13-29402 | WAVE WASHER | 2 | ||||||
| 26 | 822447T01 | CAP ASSEMBLY, Connector - 3 Pin Male | 1 |
