250 Sport XS - Serial 1E051824 and Up - Throttle Linkage

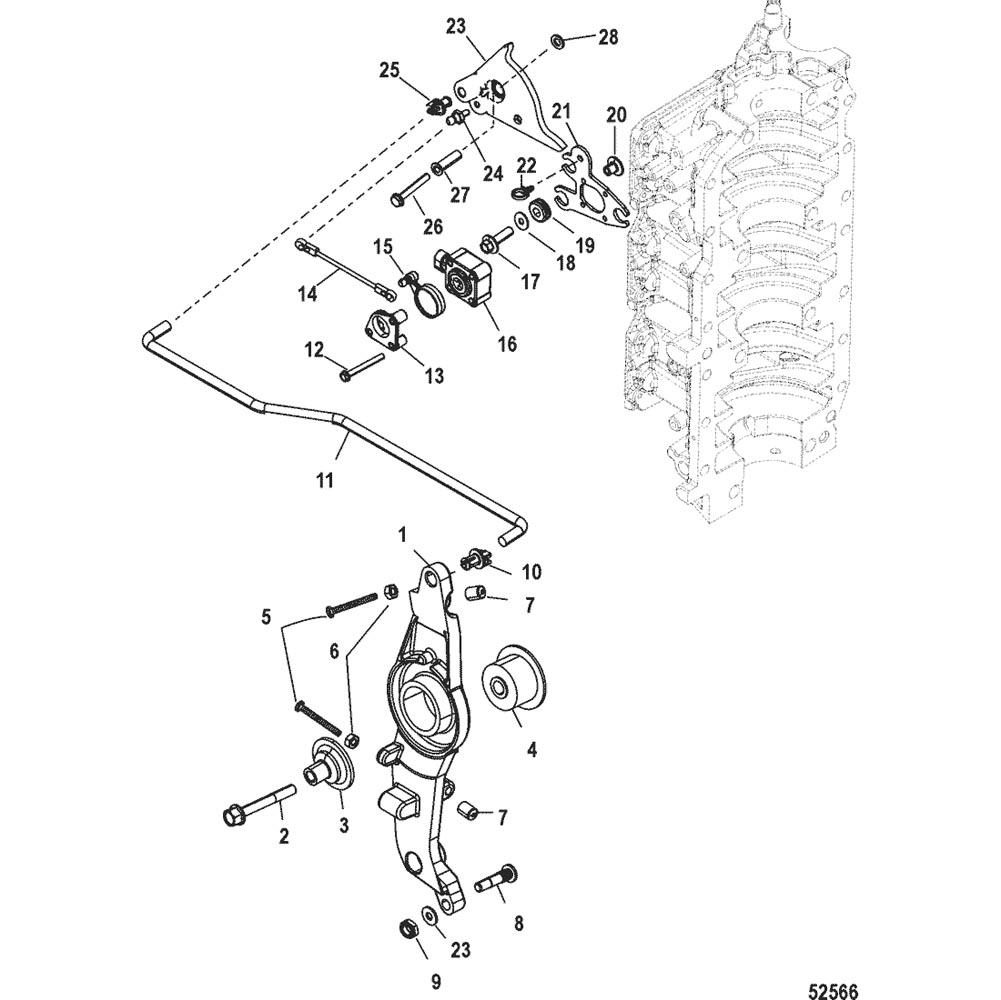

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Shift Linkage
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0040987 | LEVER | 1 | 8252682 | |||||
| 2 | 10-81893460 | SCREW, (M8 x 60) | 1 | ||||||
| 3 | 23-887605 | BUSHING | 1 | ||||||
| 4 | 23-821113 | BUSHING | 1 | ||||||
| 5 | 10-40124 | SCREW, (M6 x 55) | 2 | ||||||
| 6 | 11-400212 | NUT, (M6) Stainless Steel | 2 | ||||||
| 7 | 42942 | CAP | 2 | ||||||
| 8 | 42927 | INSERT | 1 | ||||||
| 9 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 10 | 23-932481 | BUSHING | 1 | ||||||
| 11 | 884834 | LINK | 1 | ||||||
| 12 | 10-40011113 | SCREW, (M5 x 45) Stainless Steel | 3 | ||||||
| 13 | 8582261 | COVER | 1 | ||||||
| 14 | 8M0008111 | LINK | 1 | ||||||
| 15 | 883081 | LEVER | 1 | ||||||
| 16 | 83295211 | INDICATOR, Throttle Position | 1 | ||||||
| 17 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 18 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 19 | 25-834985 | GROMMET | 3 | ||||||
| 20 | 23-856954 | BUSHING | 3 | ||||||
| 21 | 8544862 | BRACKET | 1 | ||||||
| 22 | 54-858932 | CLIP | 1 | ||||||
| 23 | 8M0065991 | CAM ASSEMBLY | 1 | ||||||
| 24 | 8235694 | --BALL, Threaded | 1 | ||||||
| 25 | 23-932481 | --BUSHING | 1 | ||||||
| 26 | 10-40011155 | SCREW, (M8 x 55) Stainless Steel | 1 | ||||||
| 27 | 23-8807371 | BUSHING | 1 | ||||||
| 28 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 |
