250 Sport XS - Serial 1E051824 and Up - Air Hoses

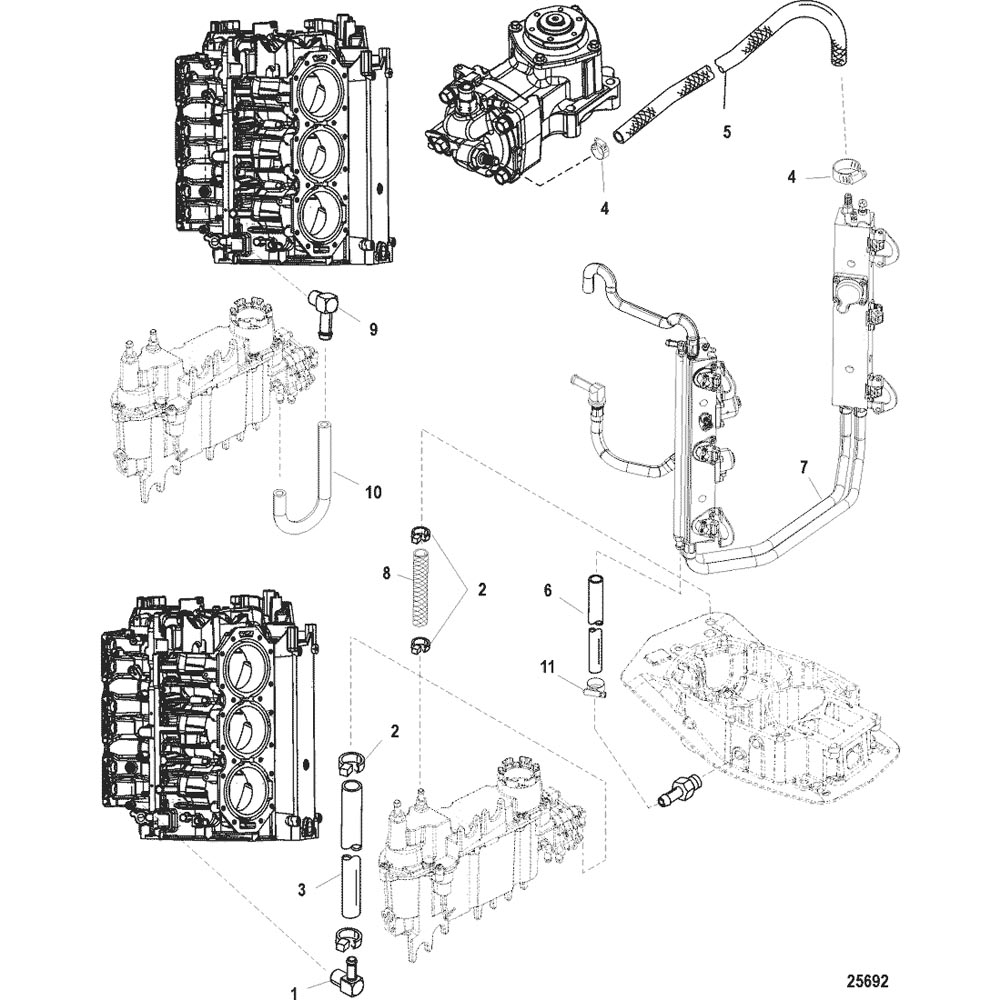

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Shift Linkage
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-856842 | ELBOW | 1 | ||||||
| 2 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 3 | 32-8M0108349 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 8 Inches) | 1 | 830757130 | |||||
| 4 | 54-856880 | CLAMP, Hose (15.3) | 2 | ||||||
| 5 | 32-8567631 | HOSE ASSEMBLY | 1 | ||||||
| 6 | 32-889314 | HOSE, Air By-Pass | 1 | ||||||
| 7 | 32-804829 | HOSE ASSEMBLY, Air Balance | 1 | No Longer Available | |||||
| - | 804532 | --O-RING KIT | 1 | ||||||
| 8 | 32-8M0116380 | HOSE/SLEEVE | 1 | 888827 | |||||
| 9 | 22-875271 | FITTING, 90 Degree - Brass (.125-27) | 1 | ||||||
| 10 | 32-887630 | HOSE, Molded | 1 | ||||||
| 11 | 54-815504104 | CLAMP, Worm Gear | 1 | ||||||
| - | 61-841017A52 | POWERHEAD ASSEMBLY | 1 |
