250 Sport XS - Serial 1E051824 and Up - Gear Housing(Driveshaft) Standard-Sportmaster

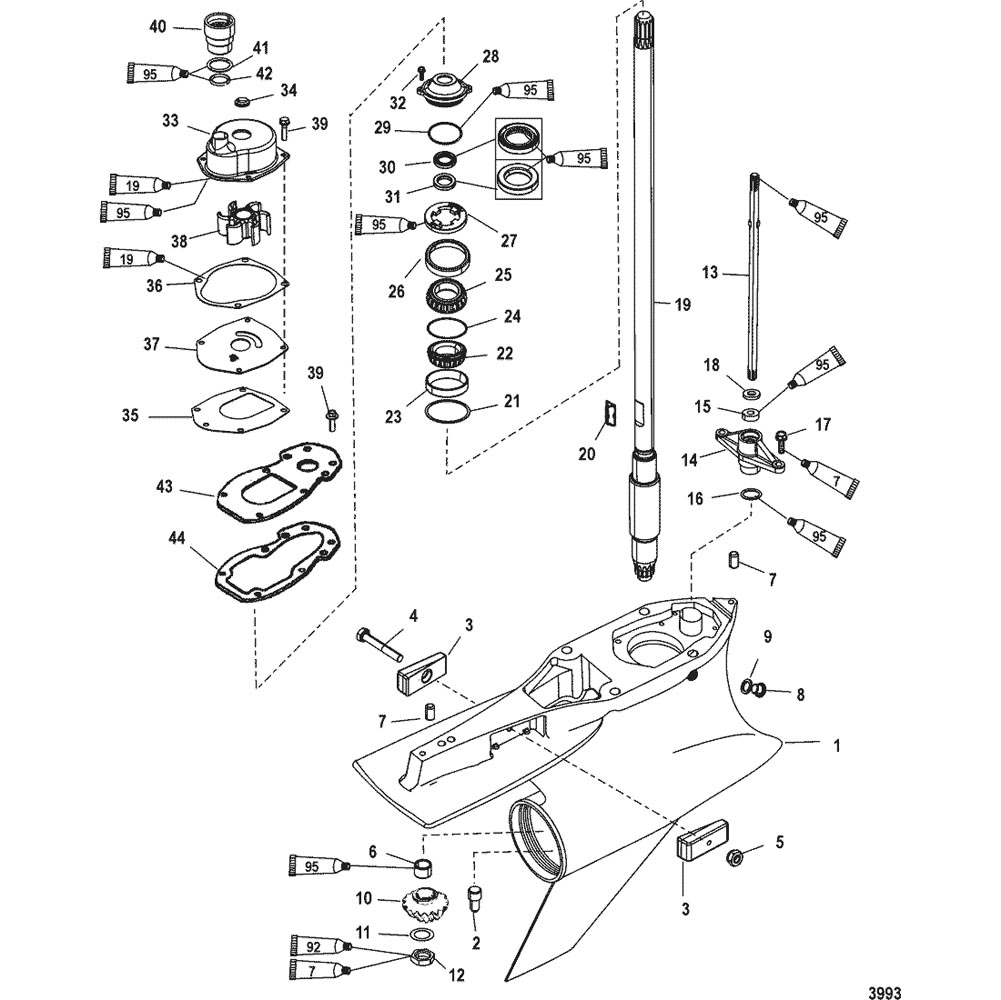

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Shift Linkage
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1688-840306T14 | GEAR HOUSING ASSEMBLY, Complete, With Torque Tab (1.62:1 Long Standard) | 1 | ||||||
| 1 | 1688-840306T3 | GEAR HOUSING ASSEMBLY, Basic, With Torque Tab | 1 | ||||||
| 2 | 17-379721 | PIN | 1 | ||||||
| 3 | 97-826134Q | ANODE | 2 | ||||||
| 4 | 10-4000333 | SCREW, (M6 x 40) | 1 | ||||||
| 5 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 6 | 31-42647A1 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 7 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 8 | 10-79953Q04 | SCREW KIT, Drain | 1 | ||||||
| 9 | 12-191833 | SEAL | 1 | ||||||
| 10 | NSS | Pinion Gear | 1 | Not Sold Separate | |||||
| 11 | 12-92721 | WASHER | 1 | ||||||
| 12 | 11-35921 | NUT, (.625-18) | 1 | ||||||
| 13 | 824145 | SHIFT SHAFT | 1 | ||||||
| 14 | 848836A1 | BUSHING ASSEMBLY | 1 | ||||||
| 15 | 26-8164641 | SEAL, Oil | 1 | ||||||
| 16 | 25-36318 | O-RING, (.799) | 1 | ||||||
| 17 | 10-82130016 | SCREW, (M6 x 16) | 2 | ||||||
| 18 | 12-77674 | WASHER | 1 | ||||||
| 19 | 45-881938 | DRIVESHAFT | 1 | ||||||
| 20 | 28-8M0032833 | KEY | 1 | 43037 | |||||
| 21 | 15-38657A1 | SHIM ASSEMBLY | AR | No Longer Available | |||||
| 22 | 31-48939A2 | BEARING, Tapered Roller | 1 | ||||||
| 23 | NSS | Cup | 1 | Not Sold Separate | |||||
| 24 | 15-42637A1 | SHIM SET | AR | No Longer Available | |||||
| 25 | 31-36387A1 | BEARING ASSEMBLY, Roller/Cup | 1 | ||||||
| 26 | NSS | Cup | 1 | Not Sold Separate | |||||
| 27 | 8245191 | RETAINER | 1 | ||||||
| 28 | 840836A2 | CARRIER ASSEMBLY | 1 | ||||||
| 29 | 25-896523 | O-RING, (2.175 x .175) | 1 | 90011 | |||||
| 30 | 26-66302 | SEAL, Oil | 1 | ||||||
| 31 | 26-66302 | SEAL, Oil | 1 | ||||||
| 32 | 10-82130016 | SCREW, (M6 x 16) | 2 | ||||||
| 33 | 817275A1 | HOUSING KIT, Water Pump | 1 | ||||||
| 34 | 26-816575A2 | SEAL KIT | 1 | ||||||
| 35 | 27-430331 | GASKET | 1 | ||||||
| 36 | 27-8172771 | GASKET | 1 | ||||||
| 37 | 8172761 | FACEPLATE | 1 | ||||||
| 38 | 47-43026T2 | IMPELLER | 1 | ||||||
| 39 | 10-82130020 | SCREW, (M6 x 20) | 6 | ||||||
| 40 | 832942A1 | COUPLING ASSEMBLY | 1 | ||||||
| 41 | 25-21836 | O-RING, (.796 x .139) | 1 | ||||||
| 42 | 25-35027 | O-RING, (1.046) | 1 | ||||||
| 43 | 848834 | PLATE, Water Passage | 1 | ||||||
| 44 | 27-848835 | GASKET | 1 | ||||||
| - | 26-816575A6 | SEAL KIT, Gear Housing | 1 | ||||||
| - | 817275A5 | REBUILD KIT, Water Pump | 1 |
