250 Sport XS - Serial 1E051824 and Up - Fuel Pump

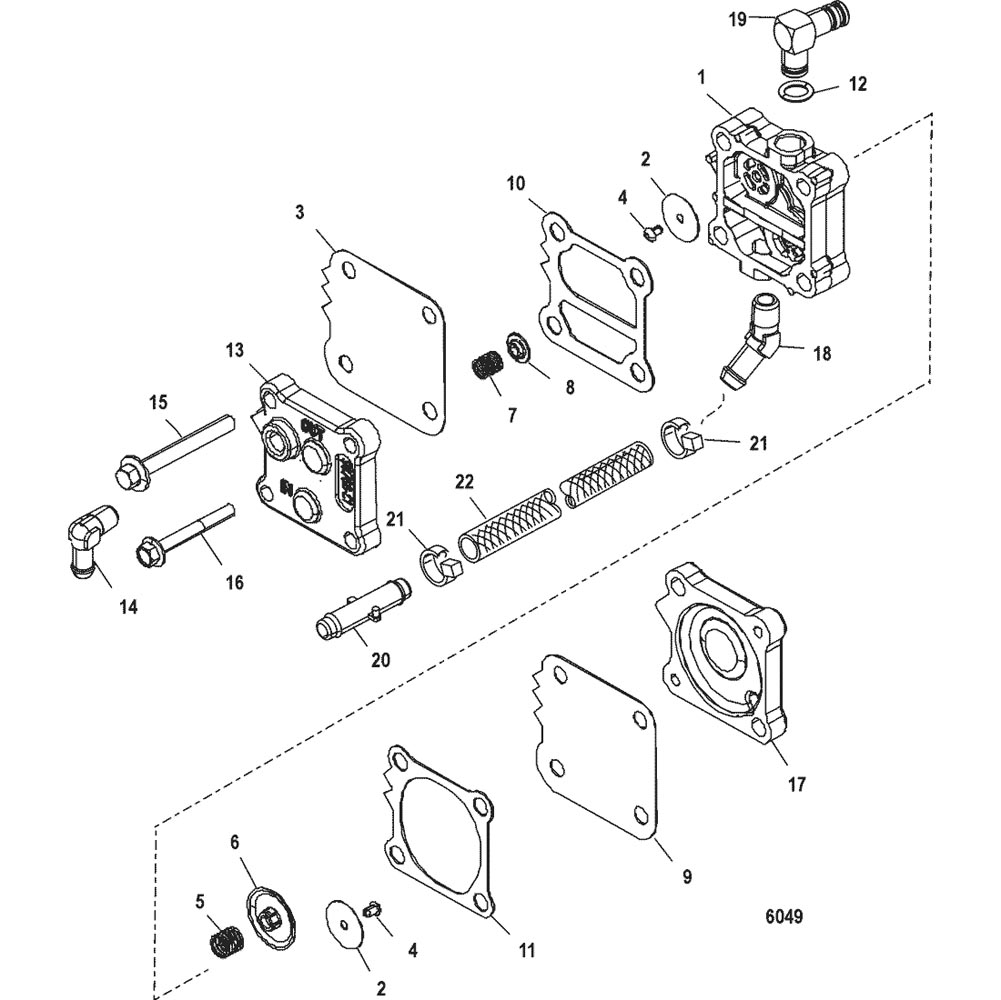

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Shift Linkage
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 14360T74 | PUMP ASSEMBLY, Fuel | 1 | ||||||
| 1 | NSS | Fuel Pump | 1 | Not Sold Separate | |||||
| 2 | 21-857005A1 | DIAPHRAGM KIT | 1 | ||||||
| 3 | NSS | Diaphragm | 1 | Not Sold Separate | |||||
| 4 | NSS | Retainer | 2 | Not Sold Separate | |||||
| 5 | NSS | Spring | 1 | Not Sold Separate | |||||
| 6 | NSS | Cap | 1 | Not Sold Separate | |||||
| 7 | NSS | Spring | 1 | Not Sold Separate | |||||
| 8 | NSS | Cap | 1 | Not Sold Separate | |||||
| 9 | NSS | Diaphragm | 1 | Not Sold Separate | |||||
| 10 | NSS | Gasket-Boost | 1 | Not Sold Separate | |||||
| 11 | NSS | Gasket-Pulse | 1 | Not Sold Separate | |||||
| 12 | 25-805063 | O-RING, (.301 x .070) | 1 | ||||||
| 13 | 987752 | PLATE | 1 | ||||||
| 14 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 15 | 10-82104540 | SCREW, (M5 x 40), Fuel Pump | 2 | ||||||
| 16 | 10-82130050 | SCREW, (M6 x 50), Pump to Crankcase | 2 | ||||||
| 17 | 144303 | BASE | 1 | ||||||
| 18 | 22-782792 | FITTING, Elbow 45 Degree (1.25) | 1 | ||||||
| 19 | 22-888493 | ELBOW | 1 | ||||||
| 20 | 22-822769 | CONNECTOR | 1 | ||||||
| 21 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 22 | 32-8M0043979 | HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) | 1 | 856822A2 | |||||
| - | 27-841220A03 | GASKET SET, Powerhead | 1 | 832933A05 |
