250 Sport XS - Serial 1E051824 and Up - Electrical Plate Components

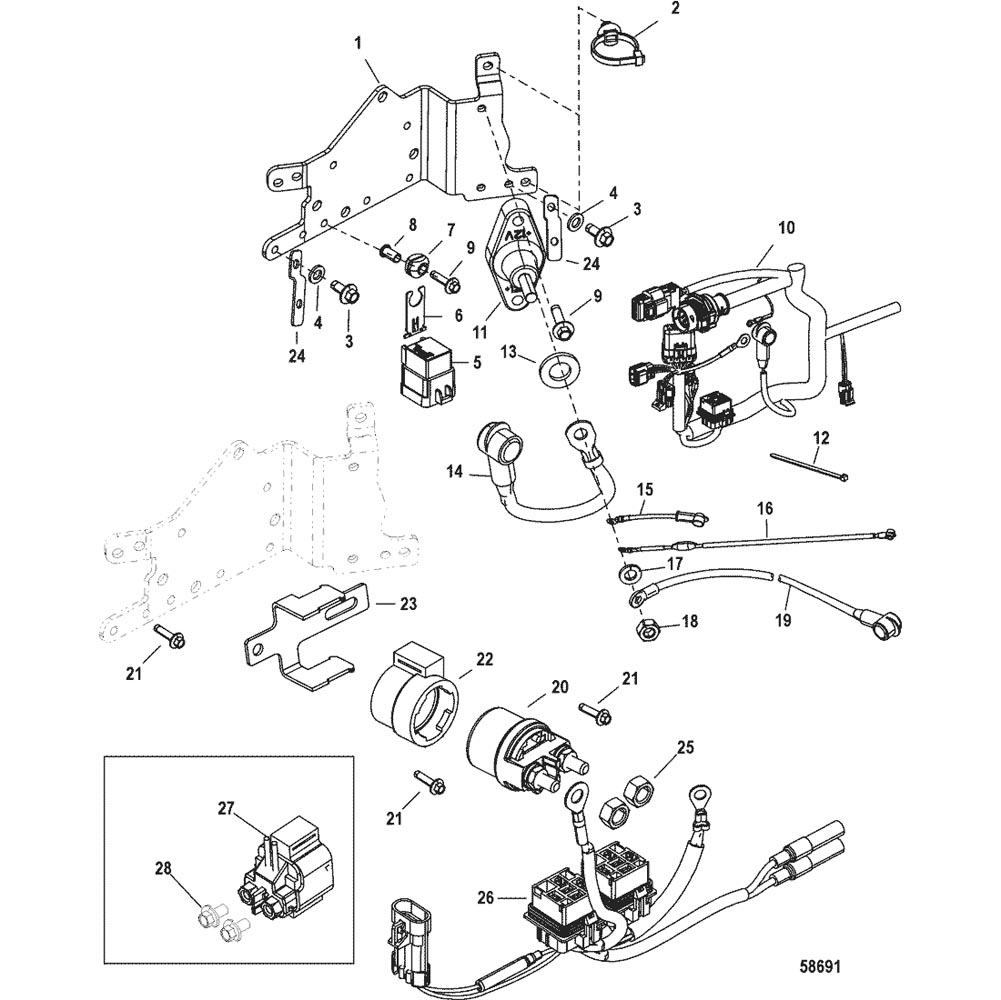

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Shift Linkage
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Electrical Plate Assembly-Complete | 1 | Not Sold Separate | |||||
| 1 | 899071T01 | PLATE | 1 | ||||||
| 2 | 54-899145 | CLIP, Tie Strap | 2 | ||||||
| 3 | 10-82129114 | SCREW, (M6 x 14) | 2 | ||||||
| 4 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 5 | 882751A1 | RELAY ASSEMBLY | 3 | ||||||
| 6 | 828102 | BRACKET | 3 | ||||||
| 7 | 25-818967 | GROMMET | 3 | ||||||
| 8 | 23-818968 | BUSHING | 3 | ||||||
| 9 | 10-82129125 | SCREW, (M6 x 25 MM) | 5 | ||||||
| 10 | 84-8M0065142 | HARNESS ASSEMBLY, Engine | 1 | ||||||
| - | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 83296920 | |||||
| - | 88-8329692 | FUSE, Mini - Gray - 2 Ampere | 1 | ||||||
| - | 88-832969T05 | FUSE, Mini - Tan - 5 Ampere | 1 | 8329695 | |||||
| - | 879346A49 | HARNESS REPAIR KIT, Direct Injector | 1 | ||||||
| - | 879346A50 | HARNESS REPAIR KIT, Fuel Injector | 1 | ||||||
| - | 84-881262A2 | HARNESS ASSEMBLY, Alternator | 1 | ||||||
| - | 84-879346A41 | HARNESS ASSEMBLY, Throttle Position Sensor | 1 | 878073A2 | |||||
| 11 | 85-875302A1 | HOT STUD ASSEMBLY | 1 | ||||||
| 12 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 13 | 12-85172 | WASHER | 1 | ||||||
| 15 | 84-93388A17 | CABLE ASSEMBLY, (8.50 Inches) | 1 | ||||||
| 16 | 84-878231A6 | HARNESS ASSEMBLY, Fuse - 100 Ampere | 1 | ||||||
| 17 | 13-26993 | LOCKWASHER, (.312) | 1 | ||||||
| 18 | 11-400213 | NUT, (M8) Stainless Steel | 1 | ||||||
| 19 | 84-88439A46 | CABLE ASSEMBLY, Battery - Positive | 1 | ||||||
| 20 | 825096T01 | SOLENOID, Starter, Design-I | 1 | No Longer Available | |||||
| 21 | 10-82129110 | SCREW, (M6 x 10) | 3 | ||||||
| 22 | 8M0010250 | BRACKET, Design-I | 1 | ||||||
| 24 | 858953 | BRACKET | 2 | ||||||
| 25 | 11-401386 | NUT, (M6) Stainless Steel, Design-I | 2 | ||||||
| 26 | 84-8M0065143 | HARNESS ASSEMBLY, Trim | 1 | ||||||
| 27 | 89-8M0098898 | RELAY | 1 | ||||||
| 28 | 10-8M0085874 | SCREW | 2 |
