Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Bell Housing

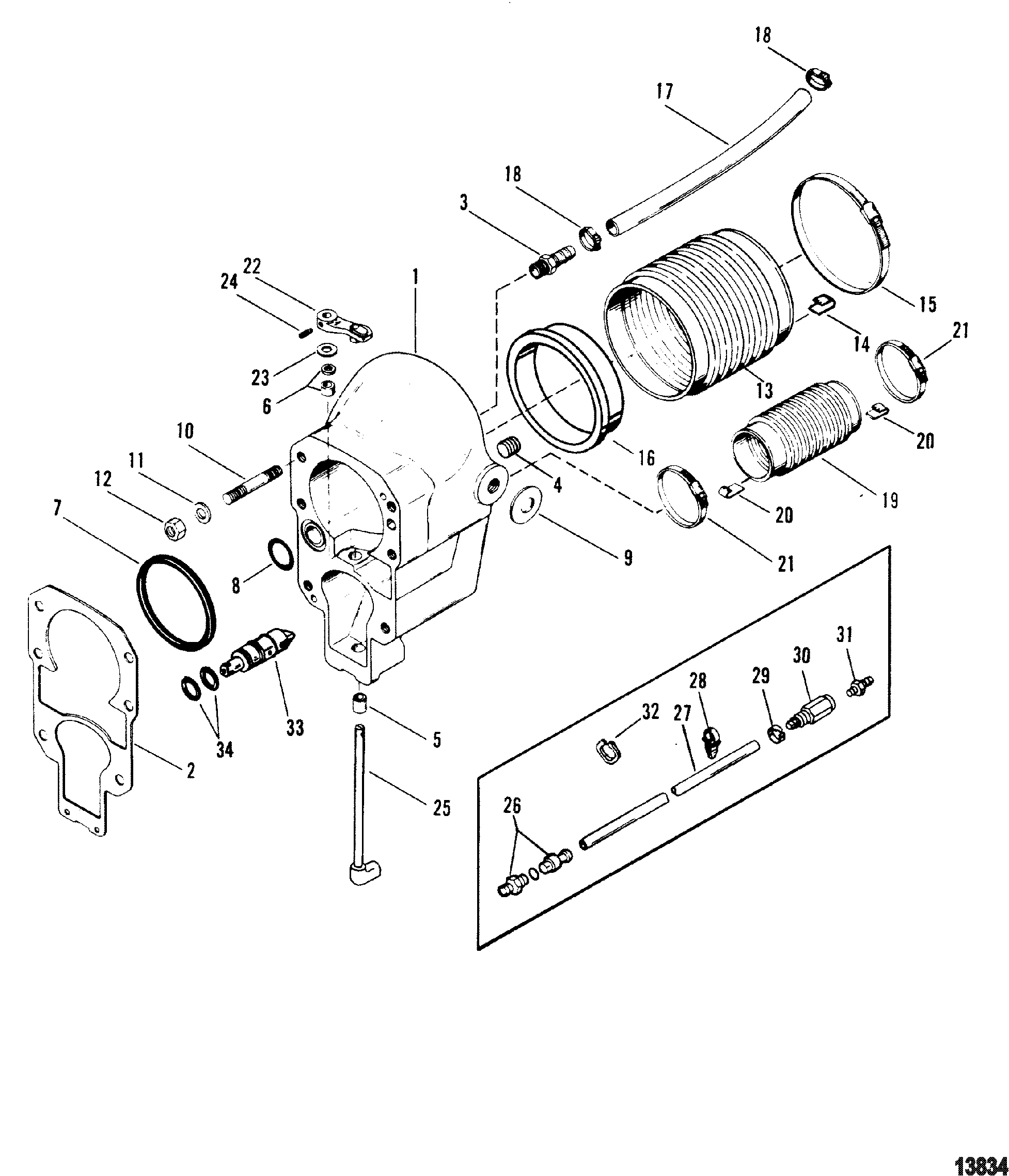

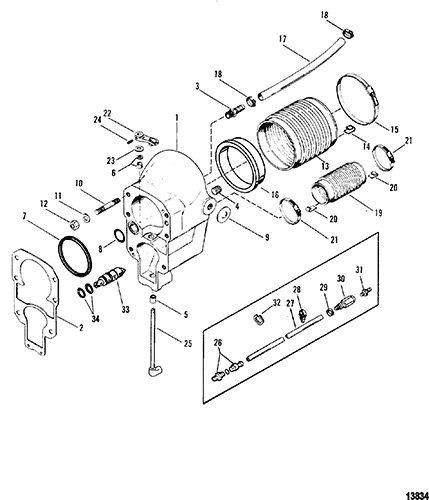

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806031A2 | BELL HOUSING ASSEMBLY | 1 | ||||||
| 2 | 27-94996Q2 | 676-9-62600 or 676-9-62601 |
GASKET KIT | 1 | 27-64818A3 | ||||
| 3 | 22-42683 | 700-13986 | CONNECTOR, (.750-14) | 1 | |||||
| 4 | 22-328022 | PLUG, Pipe (.125-27) | 1 | 22-32802 | |||||
| 5 | 23-814308 | BUSHING | 1 | ||||||
| 6 | 23-805041A2 | 676-9-72161 | 700-87561 | BUSHING/SEAL KIT, Oil | 1 | SN# F094774 & Below | |||
| 6 | 23-806036A1 | 676-9-72162 | 700-87562 | BUSHING/SEAL KIT, Oil | 1 | SN# F094775 & Up | |||
| 7 | 27-35982 | GASKET, Rubber | 1 | ||||||
| 8 | 25-33504 | 676-9-76502 | O-RING | 1 | |||||
| 9 | 12-72498 | WASHER, Synthane | 2 | ||||||
| 10 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 6 | ||||||
| 11 | 12-35935 | WASHER, (.435 x .875 x .105) Stainless Steel | 6 | ||||||
| 12 | 11-859116 | 700-21170 | NUT, (.4375-20) | 6 | 11-134391 | ||||
| 13 | 816431A1 | 676-9-72704 | 700-89180 | BELLOWS ASSEMBLY, Universal Joint | 1 | ||||
| 14 | 54-86049 | 676-9-73116 | 700-89440 | CLIP, Grounding | 1 | ||||
| 15 | 54-815504372 | 700-01100 | CLAMP, Worm Gear | 1 | |||||
| 16 | 816607 | 676-9-73117 | 700-89181 | SLEEVE | 1 | ||||
| 17 | 32-8M0062309 | HOSE | 1 | 32-4172533 | |||||
| 18 | 54-815504412 | CLAMP, Worm Gear | 2 | ||||||
| 19 | 18654A1 | 676-9-72703 | 700-89100 | BELLOWS ASSEMBLY | 1 | ||||
| 20 | 54-86049 | 676-9-73116 | 700-89440 | CLIP, Grounding | 2 | ||||
| 21 | 54-815504348 | 700-01070 | CLAMP, Worm Gear | 2 | |||||
| 22 | 45518A3 | 676-9-72153 | 700-21140 | LEVER ASSEMBLY | 1 | 45518A2 | |||
| 23 | 12-39116 | WASHER | 1 | ||||||
| 24 | 10-45590 | 700-21750 | SCREW, (.250-28) | 1 | |||||
| 25 | 816685 | 700-21419 | SHIFT SHAFT, Upper | 1 | |||||
| 26 | 22-815956A1 | COUPLING ASSEMBLY, Speedometer | 1 | ||||||
| 27 | 32-5495053 | TUBING, (53.00 Feet Bulk) | 1 | ||||||
| 28 | 54-12994 | CLIP | 1 | ||||||
| 29 | 865261 | CLAMP | 1 | 54-816606 | |||||
| 30 | 865261 | FITTING ASSEMBLY | 1 | 22-816594A1 | |||||
| 31 | 22-814382 | CONNECTOR | 1 | ||||||
| 32 | 54-818557 | CLAMP | 2 | ||||||
| 33 | 18920A1 | VALVE ASSEMBLY | 1 | (Use With Oil Reservoir) | |||||
| 34 | 25-48171 | 76-9-76550 | O-RING, (.364. x .070) | 2 | (Use With Oil Reservoir) |
