Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Transom Plate And Shift Cable

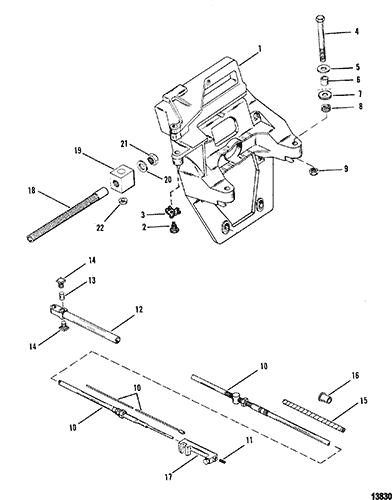

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 44117A8



PLATE ASSEMBLY, Transom 1

2 10-42253



BOLT 2

3 14-42254



WASHER 2

4 10-97934

700-19310
SCREW, (.500-20 x 5.370) Special 2

5 12-35777

700-19320
WASHER, (.5156 x 1.375 x .125) Aluminium 2

6 23-99299

700-19340
SPACER, (.520 x .870 x .630) 2

7 12-32834

700-30020
WASHER, (.9375 x 1.750 x .172) 2

8 13-33734

700-19330
LOCKWASHER, (.500) 2

9 11-863332

700-19350
NUT, (.500-20) 2 11-99298
10 865436A02

700-21451
CABLE ASSEMBLY, Shift 1 19543A4
11 10-31700
676-9-72152 700-21090
SCREW, (.250-28 x .750) 1

- 43433A01



GUIDE KIT 1

12 43433
676-9-72150 700-21430
GUIDE 1

13 43436

700-21432
ANCHOR 1

14 10-20518
676-9-72164 700-21433
SET SCREW, (#8-32) 2

15 38473

700-21462
WRAPPING, Spiral 1

16 14705

700-21463
INSERT 1

17 8507522



SLIDE 1 33981T1
18 96400



TUBE, Steering 1
(Non Power Steering)
19 95846         SWIVEL BLOCK 1
(Non Power Steering)
20 12-37985         WASHER 1   This Part is No Longer Available (Non Power Steering)
21 11-37984



NUT, (.875-14) 1
(Non Power Steering)
22 23-95803



BUSHING 2
(Non Power Steering)
