Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Power Steering Components

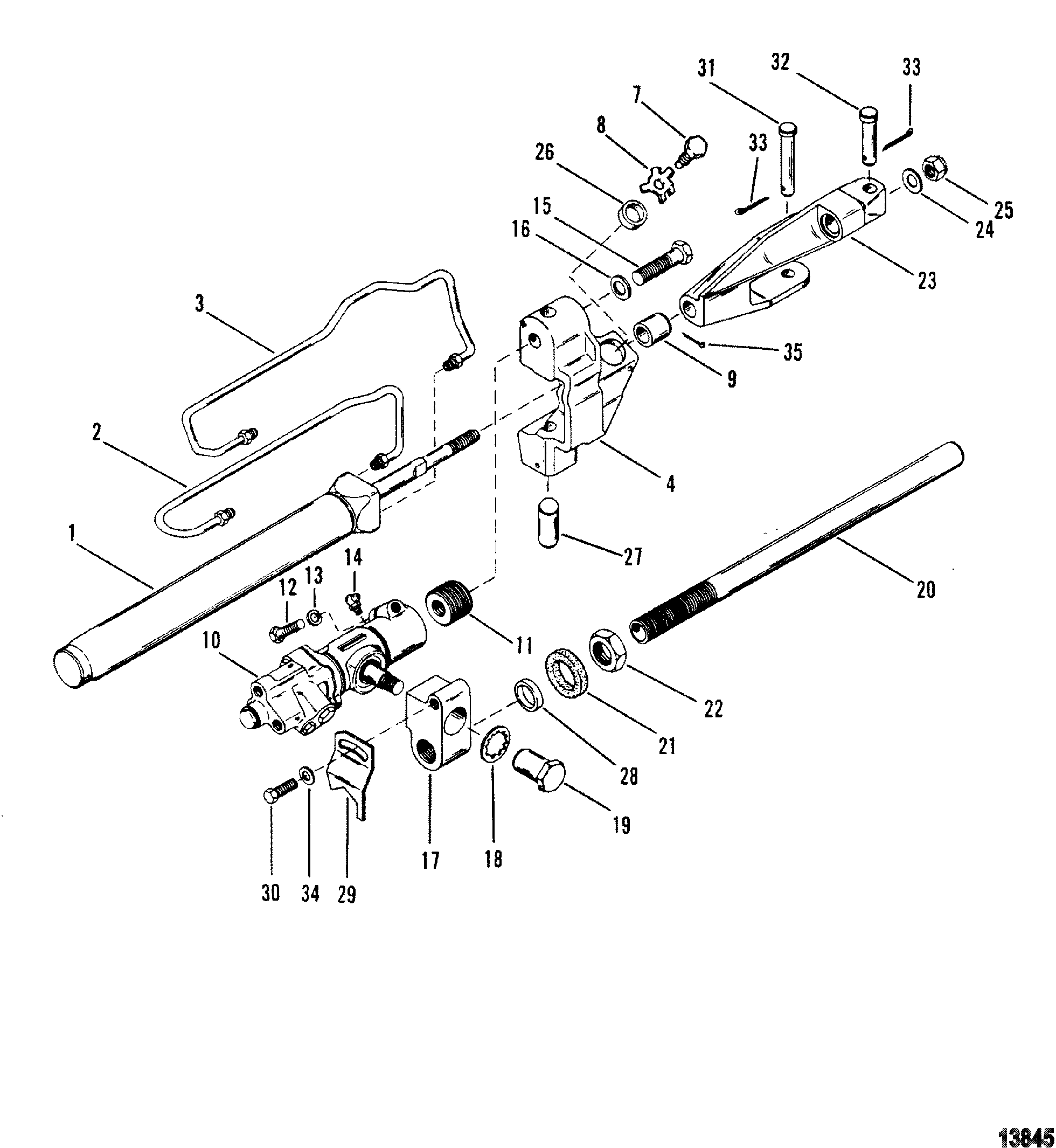

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 57969A12         CYLINDER ASSEMBLY, Booster (25- 58224A 1 Repair Kit) 1   This Part is No Longer Available
2 32-92054         TUBE 1

3 32-92055         TUBE 1

4 94953A1         BRACKET ASSEMBLY 1   This Part is No Longer Available
7 10-42253"p-40464-bolt-pivot-mercruiser-10-42253.aspx">10-42253         BOLT 2

8 14-42254         WASHER 2

9 23-88282         SLEEVE 1   This Part is No Longer Available
10 816458A1         VALVE ASSEMBLY (25- 58226A 1 Seal Repair Kit) 1   This Part is No Longer Available
11 88280         ADAPTOR 1   This Part is No Longer Available
12 10-37612         SCREW, (.375-16 x 1.250) 1

13 13-35048         LOCKWASHER, (.375) 1

14 22-67305         FITTING, Grease, Old Design 1
no longer made, limited availability
15 10-88281         SCREW, (.500-20 x 1.750) 1   This Part is No Longer Available
16 12-20959         WASHER 1

17 88285         ADAPTOR 1   This Part is No Longer Available
18 13-76629         LOCKWASHER, Internal Tooth (.750) 1

19 11-55111         NUT 1   This Part is No Longer Available
20 96511         TUBE ASSEMBLY, Steering 1 96511A1
21 88287         GUIDE 1   This Part is No Longer Available
22 11-32882         NUT, (.875-14) 1

23 95848A1         CLEVIS ASSEMBLY 1   This Part is No Longer Available
24 12-20086         WASHER, (.390 x .620 x .060) 1

25 11-69254         NUT 1

26 23-95803         BUSHING 2

27 17-88283         PIN, Retaining 2   This Part is No Longer Available
28 23-88286         BUSHING 1   This Part is No Longer Available
29 92766         LOCK 1   This Part is No Longer Available
30 10-41209         SCREW 1   This Part is No Longer Available
31 17-89229         PIN, Clevis 1
32 17-52798         PIN, Clevis 1
33 18-46950         COTTER PIN 2
34 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 1
35 18-34212         COTTER PIN 1
36 806034A2         ACTUATOR ASSEMBLY, Power Steering, Complete Parts are Not Sold Separate at This Time (New Design) 1
