Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Drive Shaft Housing And Drive Shaft

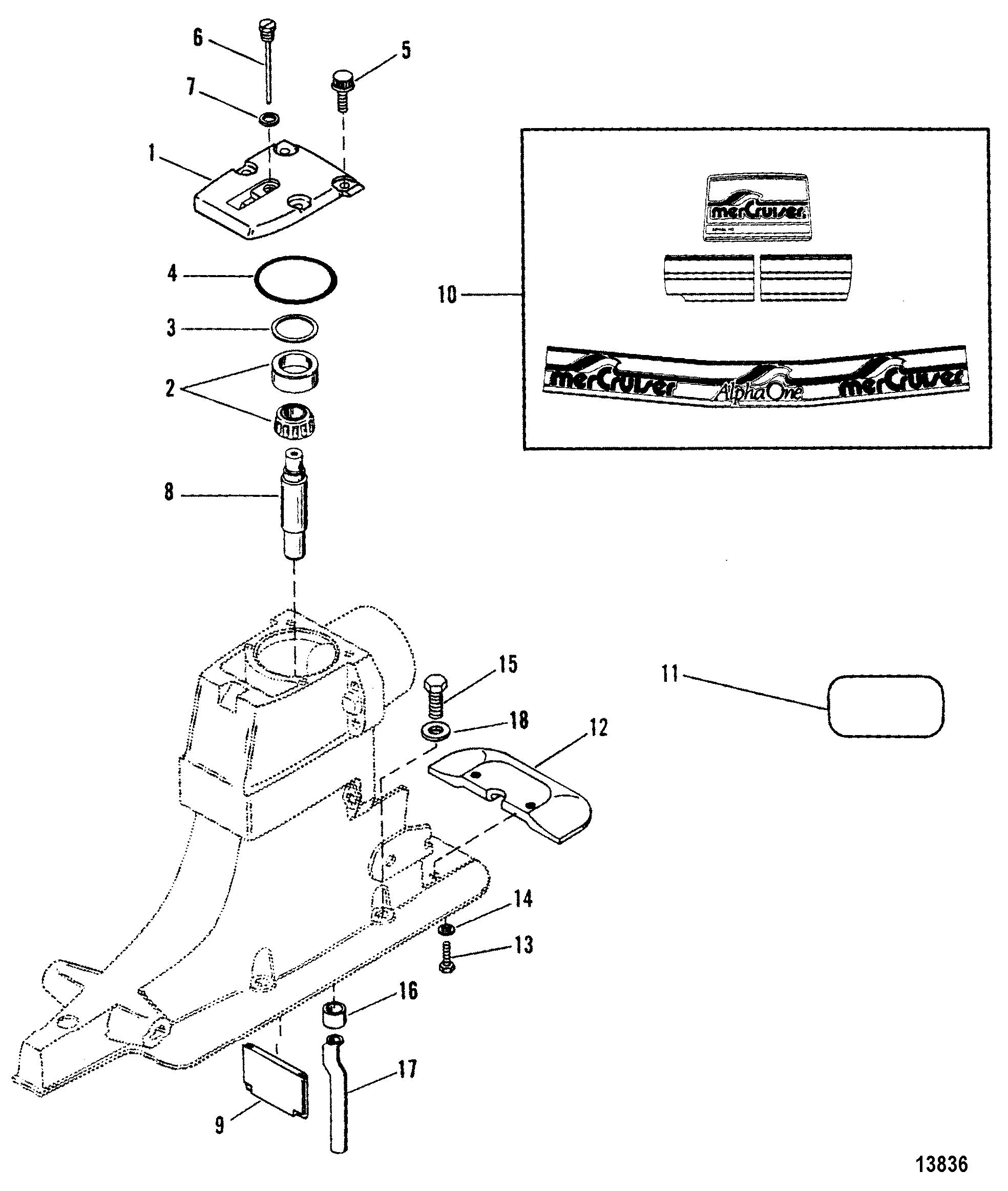

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18312A1 | TOP COVER, With Dipstick Hole | 1 | ||||||
| 1 | 828692A1 | TOP COVER, With Out Dipstick Hole | 1 | 18312A3 | |||||
| 2 | 31-61100A1 | 700-21510 | BEARING ASSEMBLY | 1 | |||||
| 3 | 15-45691A1 | 700-23260 | SHIM | AR | 3 | ||||
| 4 | 25-32546 | 676-9-76546 | 700-80420 | O-RING | 1 | 2 | |||
| 5 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | |||
| 6 | 10-79953Q04 | DIPSTICK ASSEMBLY | 1 | 816610A1 | (Old Design) | ||||
| 7 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 | (Old Design) | |||
| 8 | 45-557961 | DRIVESHAFT, Upper | 1 | ||||||
| 9 | 815932 | 700-10991 | FILLER WALL | 1 | |||||
| 10 | 37-817387A91 | DECAL SET | 1 | ||||||
| 11 | 37-13722A11 | DECAL SET, Engine Model | 1 | (2.5L/3.0L) | |||||
| 11 | 37-13722A13 | DECAL SET, Engine Model | 1 | (4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L) | |||||
| 12 | 821629Q1 | 700-12711 | ANODE ASSEMBLY | 1 | 821629A1 | ||||
| 13 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 2 | ||||
| 14 | 13-78968 | 676-9-78144 | LOCKWASHER, Internal (.250) | 2 | |||||
| 15 | 10-816601 | 700-28430 | SCREW, (.437-20 x 1.500) | 4 | |||||
| 16 | 26-88397 | 700-12831 | SEAL | 1 | 2 | ||||
| 17 | 32-860220 | 676-9-44010 | 700-12829 | TUBE, Water | 1 | 32-814384 | |||
| 18 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 4 | |||||
| 19 | 26-88397A1 | 700-87501 | SEAL KIT, Driveshaft Housing | 1 |
