Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Trim Cylinders And Hydraulic Hoses

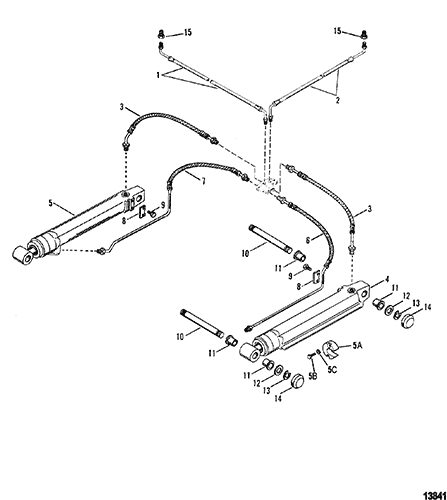

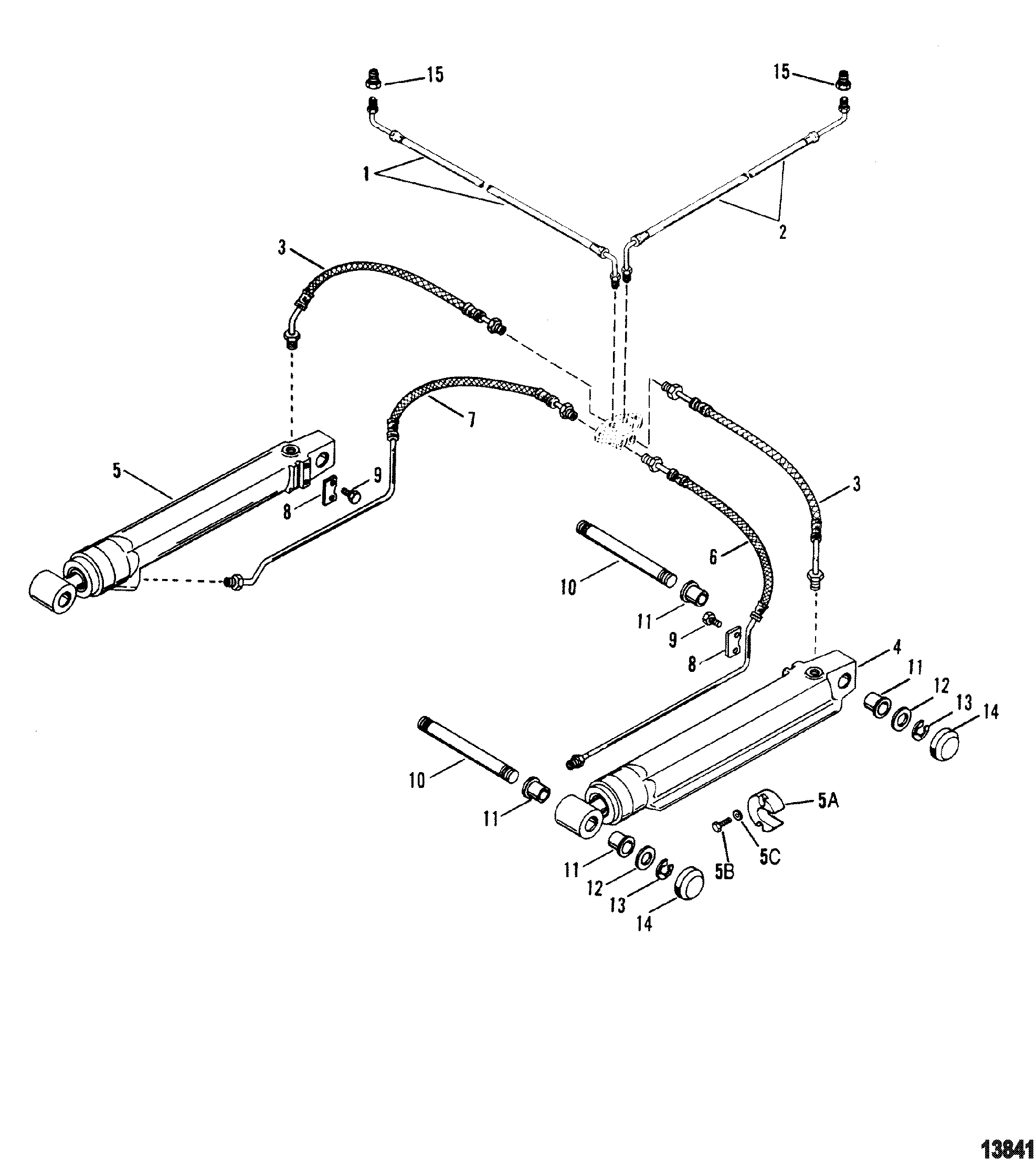

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-861127 | HOSE, Black, Connector To Pump (Black) | 1 | 32-95858 | |||||
| 2 | 32-861128 | HOSE, Gray, Connector To Pump (Gray) | 1 | 32-95859 | |||||
| 3 | 32-99904Q | HOSE, Trim Cylinder To Connector | 2 | 32-99904 | |||||
| 4 | 815954A7 | TRIM CYLINDER ASSEMBLY, Starboard | 1 | ||||||
| 5 | 815935A7 | TRIM CYLINDER ASSEMBLY, Port | 1 | ||||||
| - | 87399A3 | OVERHAUL KIT | 2 | ||||||
| - | 25-87400A2 | SEAL KIT | 2 | ||||||
| 5A | 806189Q1 | ANODE ASSEMBLY | 2 | 806189A1 | |||||
| 5B | 10-806290 | SCREW, (#10-32 x .625) | 4 | ||||||
| 5C | 13-69432 | 700-21491 | 525-13-69432 | LOCKWASHER, External (#10) | 4 | ||||
| 6 | 32-864960 | HOSE, Trim Cylinder, Starboard | 1 | 32-999021 | |||||
| 7 | 32-864959 | HOSE, Trim Cylinder, Port | 1 | 32-999031 | |||||
| 8 | 85060 | PLATE | 2 | ||||||
| 9 | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel | 4 | ||||||
| 10 | 17-815953A01 | PIN | 2 | 17-815953 | |||||
| 11 | 23-8159501 | BUSHING | 8 | 23-815950 | |||||
| 12 | 12-815952 | 700-21672 | WASHER | 4 | |||||
| 13 | 53-815949 | E RING | 4 | ||||||
| 14 | 19-815951 | 676-9-77201 | 700-26490 | CAP | 4 | ||||
| 15 | 22-805118 | FITTING, (.4375 UNS x .4375 Inverted Flare) | 2 | (With Out Screen) | |||||
| 15 | 22-808727 | CONNECTOR, (.437 UNF To .250 Inverted Flare) | 2 | (With Screen) |
