Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Gimbal Ring And Steering Lever

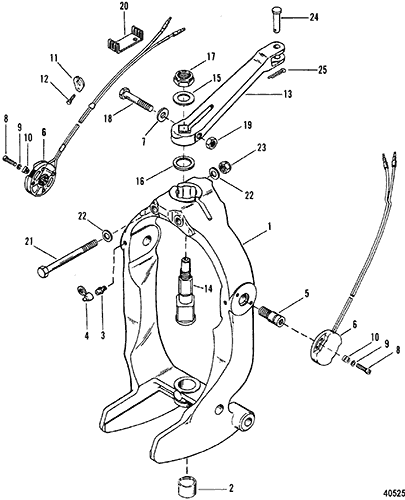

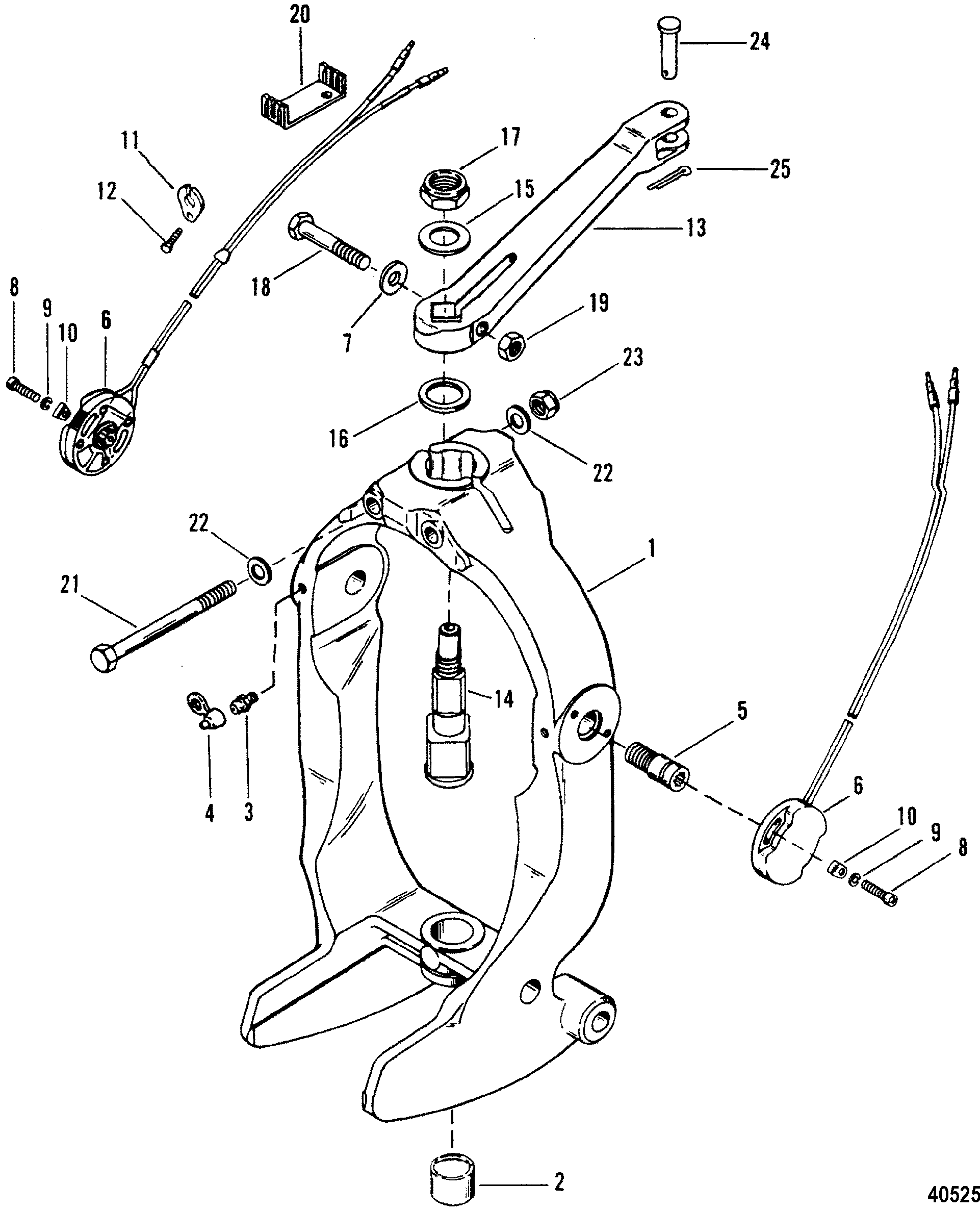

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| `X21 | 865328A01 | GIMBAL RING ASSEMBLY | 1 | 816461A2 | |||||
| 2 | 23-99352 | BEARING | 1 | ||||||
| 3 | 22-74036 | FITTING, Grease (.250-28) | 2 | ||||||
| 4 | 19-77633Q | LUBRICAP | 2 | 19-77633 | |||||
| 5 | 77123 | 676-9-73130 | PIN, Hinge | 2 | |||||
| 6 | 805320A03 | SWITCH ASSEMBLY | 1 | 805320A1 | |||||
| 7 | 12-861854 | 525-12-861854 | WASHER | 1 | 12-91964 | ||||
| 8 | 10-37978 | SCREW, (#10-32 x .750) Stainless Steel | 4 | ||||||
| 9 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 4 | ||||||
| 10 | 57008 | RETAINER | 4 | ||||||
| 11 | 54-12078 | CLAMP | 1 | ||||||
| 12 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 13 | 866322A01 | LEVER ASSEMBLY | 1 | 98262A1 | |||||
| 14 | 98230A1 | 676-9-73131 | SHAFT ASSEMBLY | 1 | |||||
| 15 | 12-85344 | WASHER, (.750 Inside Diameter) | 1 | ||||||
| 16 | 12-98548 | WASHER, (1.125 ) | 1 | ||||||
| 17 | 11-8M2014641 | NUT, (.750-16) | 1 | 11-25599 | |||||
| 18 | 10-807204 | SCREW, (.437-20 x 2.00) | 1 | 10-32995 | |||||
| 19 | 11-8M2008293 | NUT, (.437-20) | 1 | 11-98533 | |||||
| 20 | 79146 | RETAINER | 1 | ||||||
| 21 | 10-90126 | SCREW, (.375-24 x 3.750) | 2 | ||||||
| 22 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 4 | ||||||
| 23 | 11-862903 | NUT, (.375-24) | 2 | 11-134371 | |||||
| 24 | 17-52798 | PIN, Clevis | 1 | (Non Power Steering) | |||||
| 25 | 18-46950 | COTTER PIN | 1 | (Non Power Steering) |
