Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Oil Reservoir Components (Round Oil Bottle)

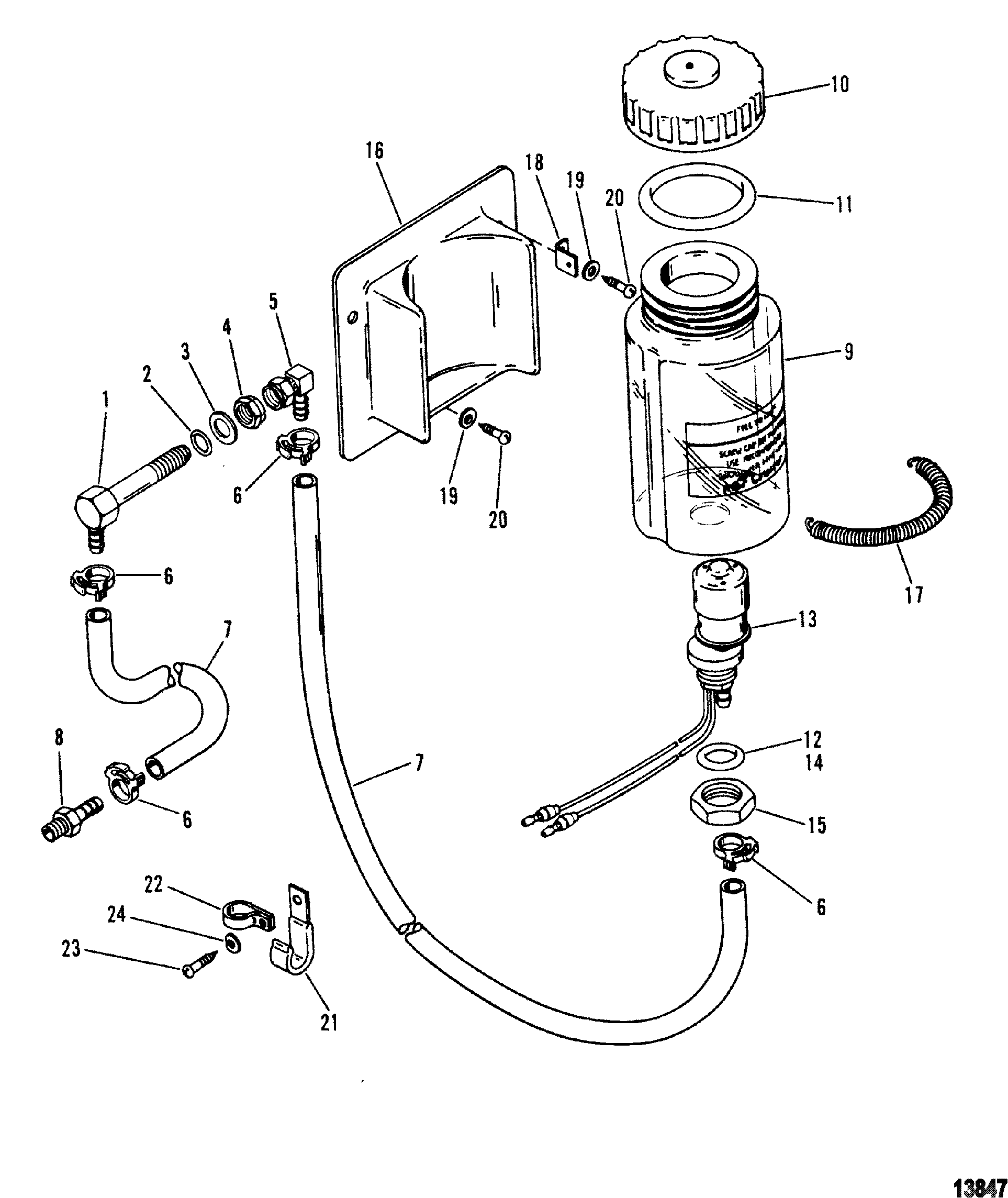

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: Round Oil Bottle | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-18922 | CONNECTOR | 1 | ||||||
| 2 | 25-201951 | O-RING | 1 | 25-20195 | |||||
| 3 | 12-861854 | 525-12-861854 | WASHER | 1 | 12-91964 | ||||
| 4 | 11-35053 | 525-11-35053 | NUT, (.437-20) | 1 | |||||
| 5 | 22-18923 | FITTING | 1 | ||||||
| 6 | 54-415825 | CLAMP, Nylon | 4 | ||||||
| 7 | 32-8M0062600 | HOSE, (54.00 Inches Bulk) | 1 | 32-1940971 | |||||
| 8 | 22-16739 | CONNECTOR | 1 | ||||||
| 9 | 806193A48 | BOTTLE ASSEMBLY | 1 | 19743A4 | This is a square bottle kit, it is the factory replacement for the round bottle which is no longer made. | ||||
| 10 | 36-19741A1 | CAP ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 11 | 25-19737 | O-RING | 1 | This Part is No Longer Available | |||||
| 12 | 25-30613 | 700-81170 | O-RING | 1 | |||||
| 13 | 87-19742A1 | SWITCH ASSEMBLY | 1 | No longer made, limited availability | |||||
| 14 | 25-30613 | 700-81170 | O-RING | 1 | |||||
| 15 | 11-19740 | NUT | 1 | This Part is No Longer Available | |||||
| 16 | 678961 | BRACKET | 1 | ||||||
| 17 | 24-67908 | SPRING | 1 | ||||||
| 18 | 67905 | RETAINER | 2 | ||||||
| 19 | 12-58198 | WASHER, (.188 x .438 x .050) | 3 | ||||||
| 20 | 10-60605 | SCREW, (#10-16 x .750) | 3 | ||||||
| 21 | 54-642351 | J CLIP | 1 | ||||||
| 22 | 54-23567 | CLIP | 1 | ||||||
| 23 | 10-60605 | SCREW, (#10-16 x .750) | 1 | ||||||
| 24 | 69205 | C WASHER | 1 | ||||||
