Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Drive Shaft Housing And Drive Gears

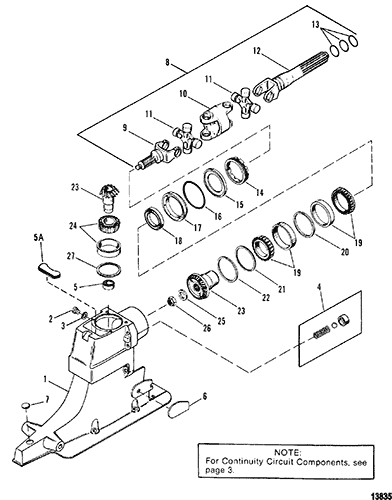

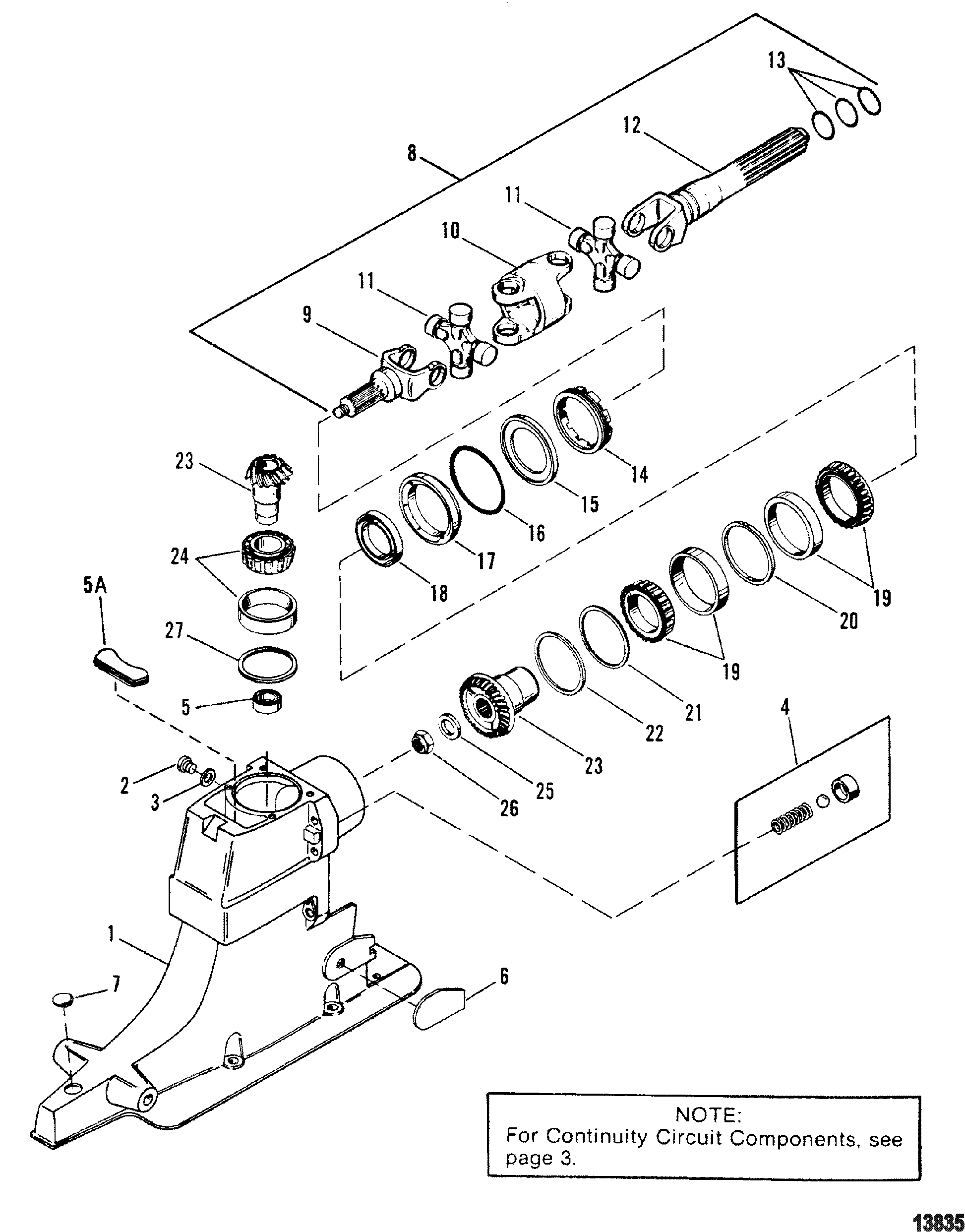

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1547-815930A7



HOUSING ASSEMBLY, Driveshaft 1

2 10-79953Q04



SCREW, (.375-16 x .250) 1 10-79953
3 12-191833


525-12-191833 WASHER, Fiber 1 12-19183 2
3 25-805726
676-9-76578

O-RING, Rubber OPT
2
4 24-17997A1

700-12930
SPRING KIT, Rubber 1

5 26-66302

700-85011
SEAL, Oil 1
SN# 0M400411 & Below
5 26-864319



SEAL, Oil 1
SN# 0M400412 & Up 2
5A 861738



PLUG 1 821564 No longer made, limited availability
6 8M2015937



WEAR PAD, Port 1 814386
6 879346T30



WEAR PAD, Starboard 1 814387
7 19-824928001


525-19-824928001 PLUG 1 19-32297
8 814819A2
676-9-72409 700-28050
UNIVERSAL JOINT 1 59830A5 (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
9 46020T02



YOKE, Gear End 1 46020T (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
10 393831



SOCKET, Center 1 39383T (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
11 75832T1
676-9-72405 700-28030
CROSS AND BEARING 2 75832A3 (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
12 59830A7



YOKE ASSEMBLY, Coupling End 1
(Coupling Yoke Has Two O-Rings) SN# D869999 & Below
13 25-25439
676-9-76505

O-RING, (.862 x .103) 2
(Coupling Yoke Has Two O-Rings) SN# D869999 & Below 2
8 814819A2
676-9-72409 700-28050
UNIVERSAL JOINT 1
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up
9 46020T02



YOKE, Gear End 1 46020T (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
10 393831



SOCKET, Center 1 39383T (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
11 805536A2
676-9-72406 700-28030
CROSS AND BEARING 2 805536A1 (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
12 814819A3
676-9-72401

YOKE, Coupler End 1
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up
13 25-25439
676-9-76505
O-RING, (.862 x .103) 2
(Coupling Yoke Has Three O-Rings) SN# D870000 & Up 2
13 25-35027
676-9-76507 700-81180 525-25-35027 O-RING, (1.046) 1
2
14 8168112
676-9-72154

RETAINER 1 8168111
15 35983
676-9-78105 700-28390
RING 1

16 25-70937
676-9-76551 700-82380
O-RING 1
2
17 66081A2

700-28370
CARRIER ASSEMBLY 1

18 26-823894
676-9-76102

SEAL, Oil 1
2
19 31-35988A12
676-9-75123 700-21520
BEARING KIT, Roller 1

20 23-35985



SPACER 1

21 15-35980A1

700-23280
SHIM SET AR
3
22 15-71013

700-28380
SHIM, Spacer 1

23 43-55778A3



GEAR KIT (2.40 Ratio) AR
(20-24 Gear Ratio) 3
23 43-55778A3



GEAR KIT (1.98 Ratio) AR
(20-24 Gear Ratio) 3
23 43-45814A5

700-11220
GEAR KIT (1.65 Ratio) AR
(24-24 Gear Ratio) 3
23 43-75325A3



GEAR KIT (1.84 Ratio) AR
(17-19 Gear Ratio) 3
23 43-18411A2



GEAR KIT (1.50 Ratio) AR
(20-22 Gear Ratio) 3
24 31-35990A1
676-9-75122

BEARING ASSEMBLY, Roller 1

24 31-32573A1

700-21560
BEARING ASSEMBLY, Roller (1.50 Ratio Only) 1

25 12-45810
676-9-78107 700-28330
WASHER 1

26 11-22339

700-28360 525-11-22339 NUT, (.625-18) 1

27 15-36178A02



SHIM SET AR 15-36178A1 3
28 26-88397A1

700-87501
SEAL KIT, Driveshaft Housing 1
