Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Gear Housing, Propeller Shaft - Standard Rotation

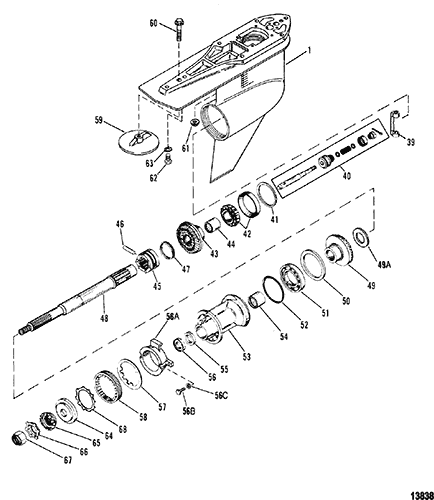

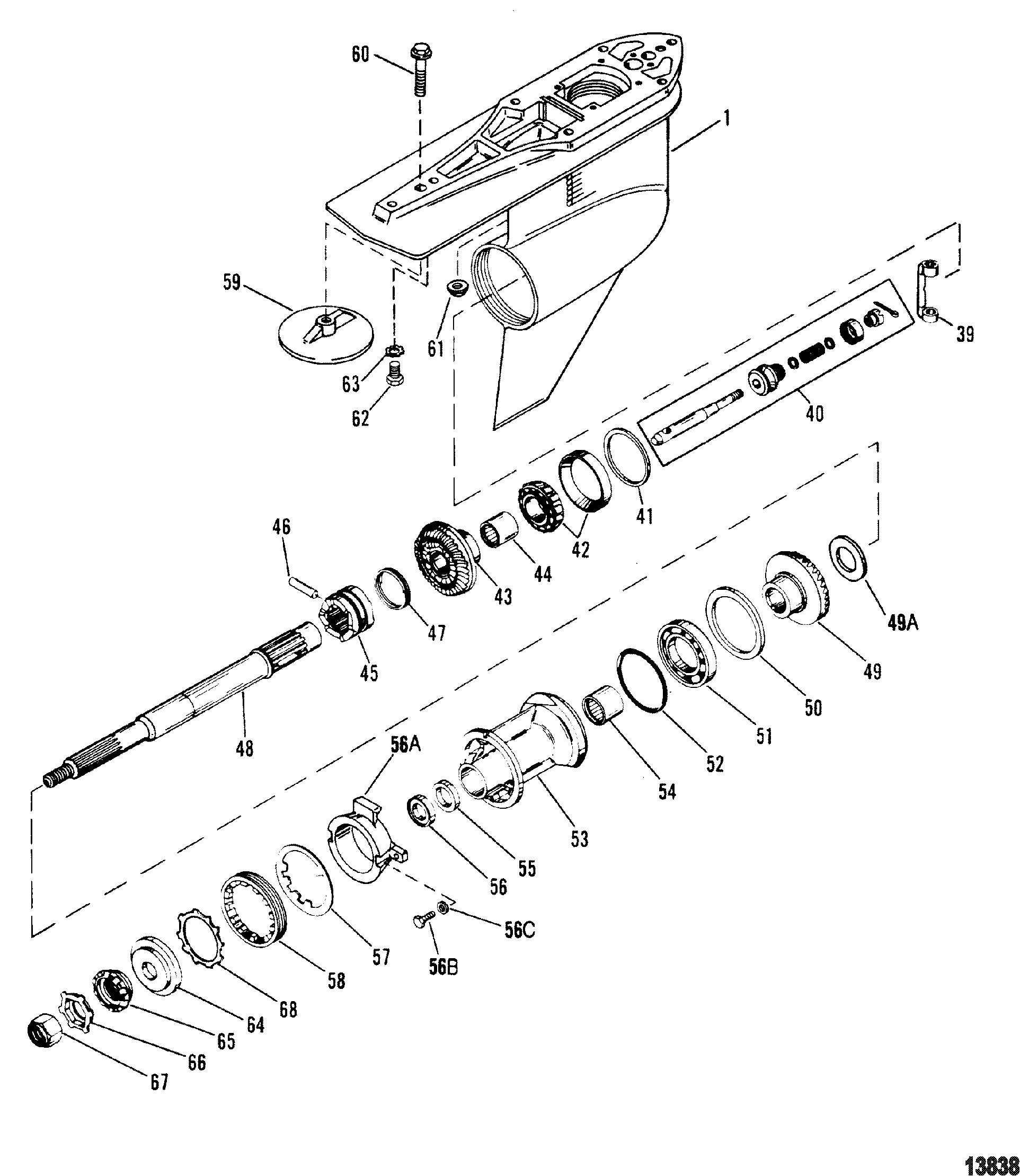

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1623-815822A53 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1623-815822A5 | |||||
| 1 | 1623-815822A30 | GEAR HOUSING ASSEMBLY | 1 | ||||||
| 39 | 76865 | CRANK, Shift | 1 | ||||||
| 40 | 818349T1 | 676-9-78133 | 700-11030 | SHIFT SPOOL KIT | 1 | 19755A2 | |||
| 41 | 15-47397A1 | 700-23220 | SHIM SET | AR | 3 | ||||
| 42 | 31-35928T1 | 676-9-75120 | 700-21590 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-35928A1 | |||
| 43 | NSS | NOT SOLD SEPARATE, Foward Gear | 1 | This Part is not sold separately (See Previous Page - Reference #14) | |||||
| 44 | 31-30895T | 676-9-75111 | 700-11420 | BEARING, Needle | 1 | 31-30895 | |||
| 45 | 52-853594T | 676-9-73474 | 700-11060 | SLIDING CLUTCH | 1 | 52-824112 | |||
| 46 | 17-30632 | 676-9-78111 | 700-21131 | PIN, Cross | 1 | No longer made, limited availability | |||
| 47 | 24-30893 | 676-9-78135 | 700-11050 | SPRING | 1 | ||||
| 48 | 44-824110 | 676-9-72450 | PROPELLER SHAFT | 1 | 44-660603 | ||||
| 49 | 43-824109A1 | GEAR ASSEMBLY, Reverse | 1 | (Not Used With 2.40:1 Ratio) | |||||
| 49A | 23-824108 | 700-11012 | SPACER | 1 | |||||
| 50 | 681001 | 676-9-78106 | RING, Thrust | 1 | |||||
| 51 | 30-88957T | 676-9-75114 | 700-21620 | BEARING, Ball | 1 | 30-88957A1 | |||
| 52 | 25-31534 | 676-9-76544 | 525-25-31534 | O-RING | 1 | 5 | |||
| 53 | 818763A10 | 676-9-72602 | 700-11405 | CARRIER ASSEMBLY, Bearing | 1 | ||||
| 54 | 31-30956T | 676-9-75112 | 700-11410 | BEARING, Needle | 1 | 31-30956 | |||
| 55 | 26-14077 | 676-9-76119 | 700-85130 | SEAL, Oil, Inside | 1 | 5 | |||
| 56 | 26-12224 | 676-9-76101 | 700-85700 | SEAL, Oil, Outside | 1 | 5 | |||
| 56A | 806105Q1 | 700-12702 | ANODE ASSEMBLY | 1 | 806105A1 | ||||
| 56B | 10-806290 | 700-12832 | 525-10-806290 | SCREW, (#10-32 x .625) | 2 | ||||
| 56C | 13-69432 | 700-21491 | 525-13-69432 | LOCKWASHER, External (#10) | 2 | ||||
| 57 | 14-18323 | 676-9-72640 | 525-14-18323 | TAB WASHER | 1 | ||||
| 58 | 8M2011027 | 700-21120 | 525-8M2011027 | RETAINER | 1 | 79448 | |||
| 59 | 76214Q5 | 700-12710 | 525-76214Q5 | ANODE KIT | 1 | 76214A5 | |||
| 59 | 31640Q4 | 700-12670 | TRIM TAB (1.98:1 Ratio Only) | 1 | 316404 | ||||
| 60 | 10-806327 | 700-21741 | 525-10-806327 | SCREW, (.437-14 x 1.750) | 1 | ||||
| 61 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 4 | 11-817618 | ||||
| 62 | 10-65210 | 525-10-65210 | SCREW, (.375-16 x 1.00) | 1 | |||||
| 63 | 13-35479 | 525-13-35479 | LOCKWASHER, (.375) | 1 | |||||
| 64 | 12-835467Q01 | 700-21301 | THRUST HUB | 1 | 13171 | ||||
| 65 | 12-31211Q03 | 700-21360 | WASHER, Splined | 1 | 12-31211A2 | ||||
| 66 | 14-816629Q | 700-21200 | TAB WASHER | 1 | 14-816629 | ||||
| 67 | 11-52707Q1 | 676-9-73960 | 700-21250 | 525-11-52707Q1 | PROP NUT KIT, (.750-16) | 1 | 11-52707A1 | ||
| 68 | 13-423511 | LOCKWASHER, Toothed | 1 | ||||||
| - | 43-13730A1 | GEAR SET | 1 | (2.4:1/14-28 Gear Ratio) | |||||
| - | 26-816575A3 | 676-9-74206 | 700-87511 | SEAL KIT, Gear Housing | 1 |
