600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Cylinder Head And Rocker Cover

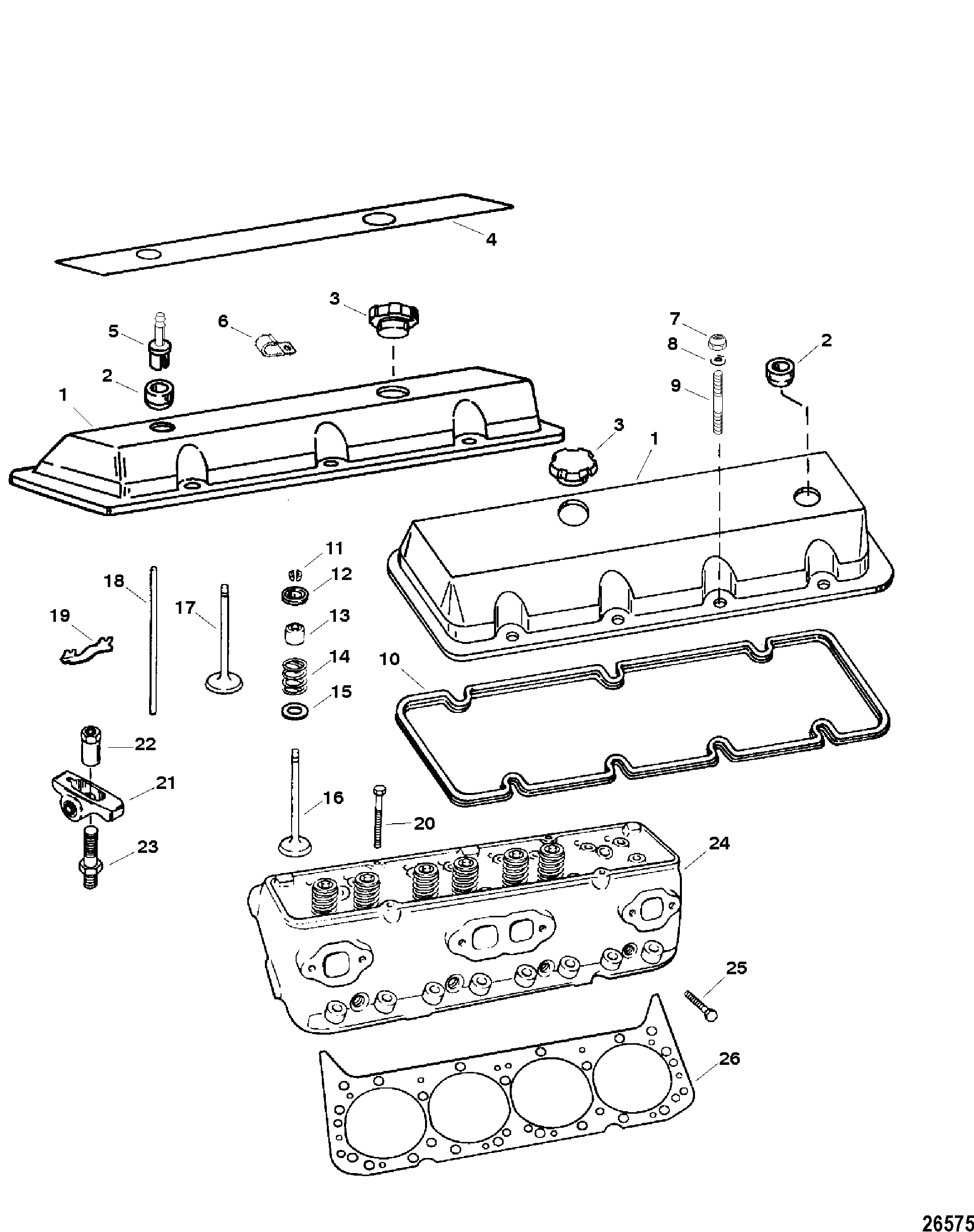

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 811587A2         COVER ASSEMBLY, Rocker Valve - Blue 2

2 25-811553         GROMMET, Rocker Cover 2
2
3 36-811569         CAP, Oil Tank 2

4 37-848590         DECAL 2   This Part is No Longer Available
5 22-8485571         FITTING 2 22-848557
6 54-642352         J CLIP 2

7 11-35888
676-9-72001 700-21180   NUT, (.250-28) 14

8 12-35462         WASHER, (.2656 x .625 x .0625) 14

9 16-56766         STUD, (.250-20/.250-28 x 1.380), Rocker Cover 14

10 27-811588         GASKET, Rocker Cover 2
2
11 96028         LOCK, Valve Stem 32

12 843376         RETAINER 16 98598
13 26-827645         SEAL, Valve 16 15832 2
14 24-13455T         SPRING 16 24-13455
15 15-845669         SHIM, Valve Spring (.015) AR 15-54531
15 15-77624         SHIM, Valve Spring (.030) AR

16 843080         VALVE, Exhaust 8 13024
17 986781         VALVE, Inlet 8

18 848263         PUSHROD, Valve 8
Inlet
18 848266         PUSHROD, Valve 8
Exhaust
19 845707         GUIDE, Push Rod 8 811586
20 10-8M0000482         BOLT, (4.125 Inch) 24 10-49105
21 845618T         ARM, Valve Rocker 16 848589
22 11-848610         NUT, Valve Rocker Arm 16

23 16-821836         STUD, Valve Rocker Arm 16

24 938-826363T3         HEAD ASSEMBLY, Cylinder 2 938-826363A1 This Part is No Longer Available
25 10-8M0000463         BOLT (2.00) 8 10-491061
26 879150139         GASKET, Cylinder Head 2 27-811546 2
- 27-827014A98         GASKET SET, Engine Overhaul 1 27-827014A97
