600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Sea Water Pump Assembly

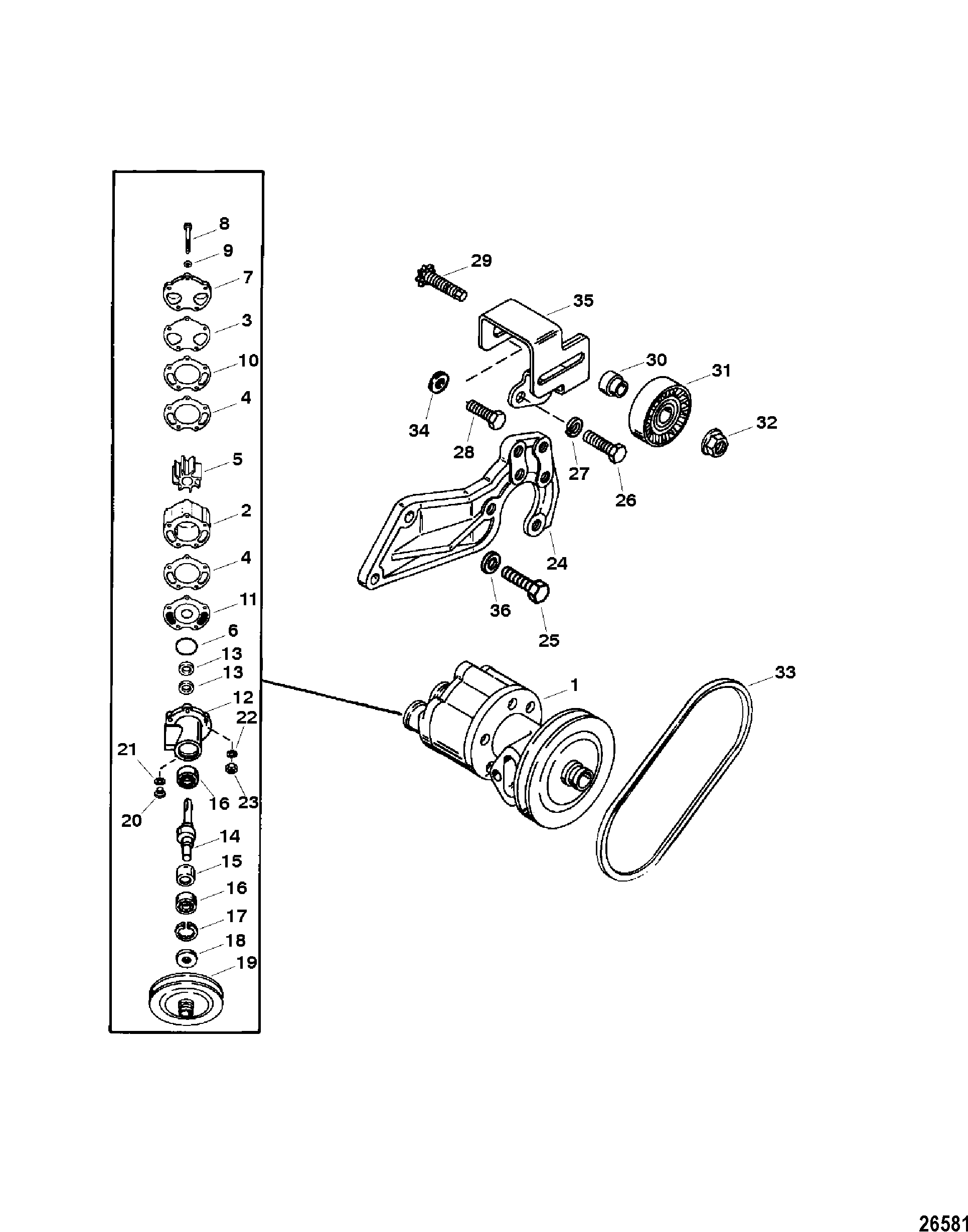

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-72774A82 | PUMP ASSEMBLY, Sea Water - Complete | 1 | ||||||
| - | 22-36382 | 700-21887 | FITTING, (.250-18) Brass | 2 | |||||
| 2 | 46-72774A89 | BODY/IMPELLER KIT, Sea Water Pump | 1 | ||||||
| 3 | 27-8052151 | GASKET, Cover To Outer Wear Plate | 1 | ||||||
| 4 | 27-94914 | 700-32730 | GASKET, Body To Wear Plate | 2 | |||||
| 5 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | 47-593621 | ||
| 6 | 25-94288 | QUAD RING, Pump Housing | 1 | ||||||
| 7 | 821707T1 | COVER, Water Pump | 1 | 8217071 | |||||
| 8 | 10-39001 | -SCREW, (.312-18 x 4.50) | 5 | ||||||
| 9 | 12-20084 | WASHER, (.328 x .562 x .062) | 10 | ||||||
| 10 | 94916 | WEAR PLATE, Outer | 1 | ||||||
| 11 | 94576 | WEAR PLATE, Inner | 1 | ||||||
| 12 | 818367A1 | HOUSING ASSEMBLY, Sea Water Pump | 1 | ||||||
| 13 | 26-90562 | 676-9-76107 | 700-85080 | SEAL, (1.254 x .312), Oil - Pump Shaft | 2 | ||||
| 14 | 818366A1 | SHAFT KIT | 1 | ||||||
| 15 | 818745A1 | RING KIT | 1 | ||||||
| 16 | 30-72961 | BEARING, Ball, Pump Shaft | 2 | ||||||
| 17 | 53-23720 | RING, Retaining, Ball Bearing | 1 | ||||||
| 18 | 26-806930 | SEAL, Oil - Pump Shaft | 1 | ||||||
| 19 | 8183651 | PULLEY, Blue | 1 | 8183652 | |||||
| 20 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) , Plug | 1 | 10-79953A2 | |||||
| 21 | 12-191833 | WASHER, Fiber | 1 | 12-19183 | |||||
| 22 | 13-39107 | 700-21496 | LOCKWASHER, (.312) | 5 | |||||
| 23 | 11-21908 | NUT, (.312-18) | 5 | ||||||
| 24 | 818368A1 | BRACKET KIT, Sea Water Pump | 1 | 823185A2 | |||||
| 25 | 10-66024 | SCREW, (.437-14 x 1.75) | 3 | ||||||
| 26 | 10-28782 | SCREW, (.312-18 x .880) | 2 | ||||||
| 27 | 13-26993 | LOCKWASHER, (.312) | 2 | ||||||
| 28 | 10-99204 | SCREW, (.437-14 x 1.00) | 1 | ||||||
| 29 | 43-8183812 | PINION STUD | 1 | ||||||
| 30 | 865193 | BUSHING | 1 | 818380T | |||||
| 31 | 8M6500024 | PULLEY | 1 | 818382 | |||||
| 32 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 1 | 11-817618 | ||||
| 33 | 57-69143Q | V BELT | 1 | 57-69143T | |||||
| 34 | 12-27025 | WASHER | 1 | ||||||
| 35 | 818379T | BRACKET, Idler | 1 | ||||||
| 36 | 12-45176 | WASHER, (.453 x .812 x .105) | 3 |
