600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Exhaust Header - Tailpipe Assembly

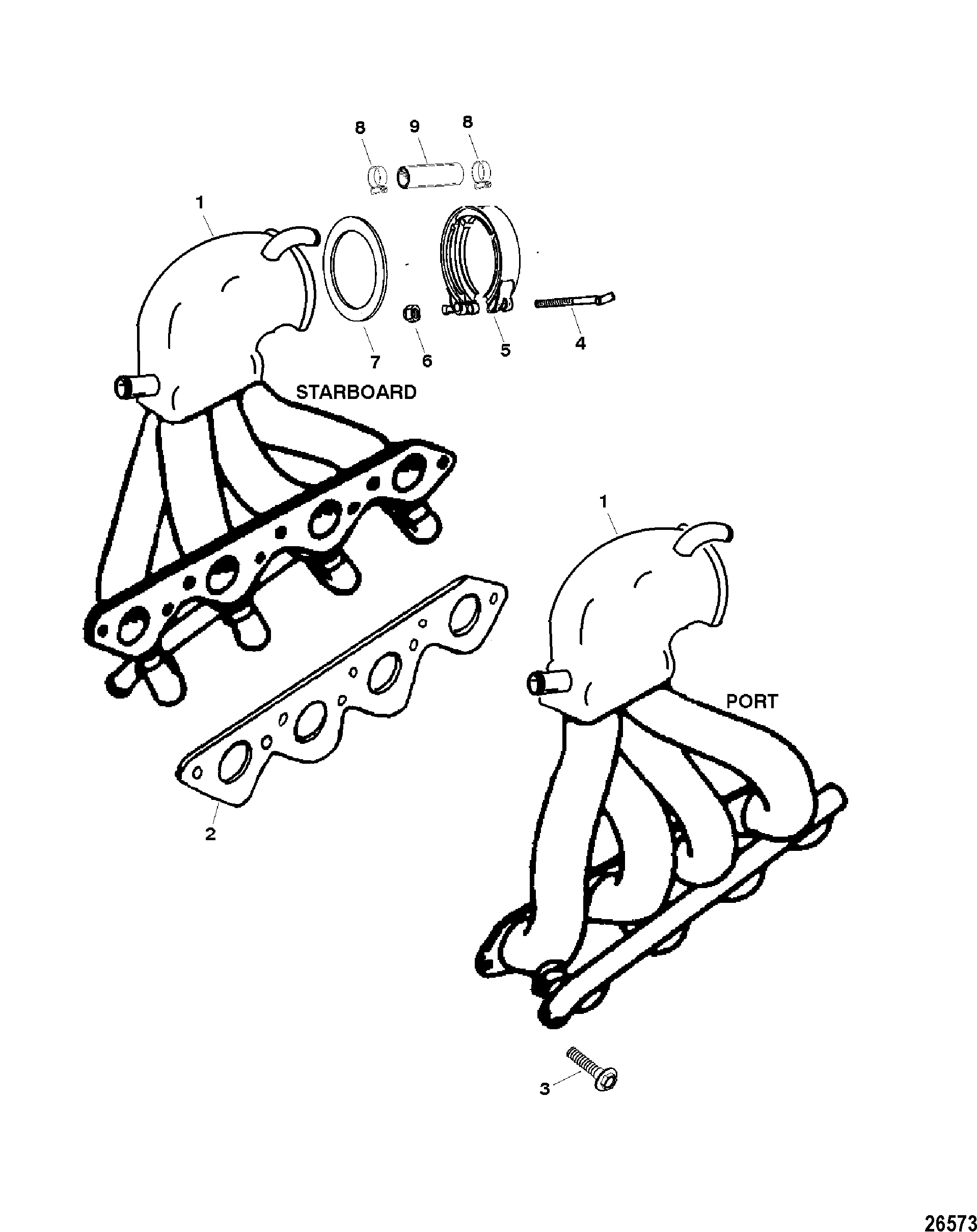

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849109 | HEADER, Exhaust | 1 | This Part is No Longer Available - Port | |||||
| 1 | 849112 | HEADER, Exhaust | 1 | This Part is No Longer Available - Starboard | |||||
| 2 | 27-841234 | GASKET, Exhaust Header | 2 | 27-821129 | |||||
| 3 | 10-821131 | SCREW, (.375-16 x 1.00) | 16 | ||||||
| 4 | 10-848886 | T BOLT, (.250-20) | OPT | ||||||
| 5 | 54-848885 | CLAMP, Band Style | OPT | ||||||
| 6 | 11-8267098 | NUT, (.250-20) | OPT | 11-56374 | |||||
| 7 | 27-848254 | GASKET, Tailpipe | OPT | ||||||
| 8 | 54-180763 | CLAMP, Worm Gear | OPT | ||||||
| 9 | 32-848884 | HOSE, Jumper | OPT |
