600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Oil Pan And Oil Pump

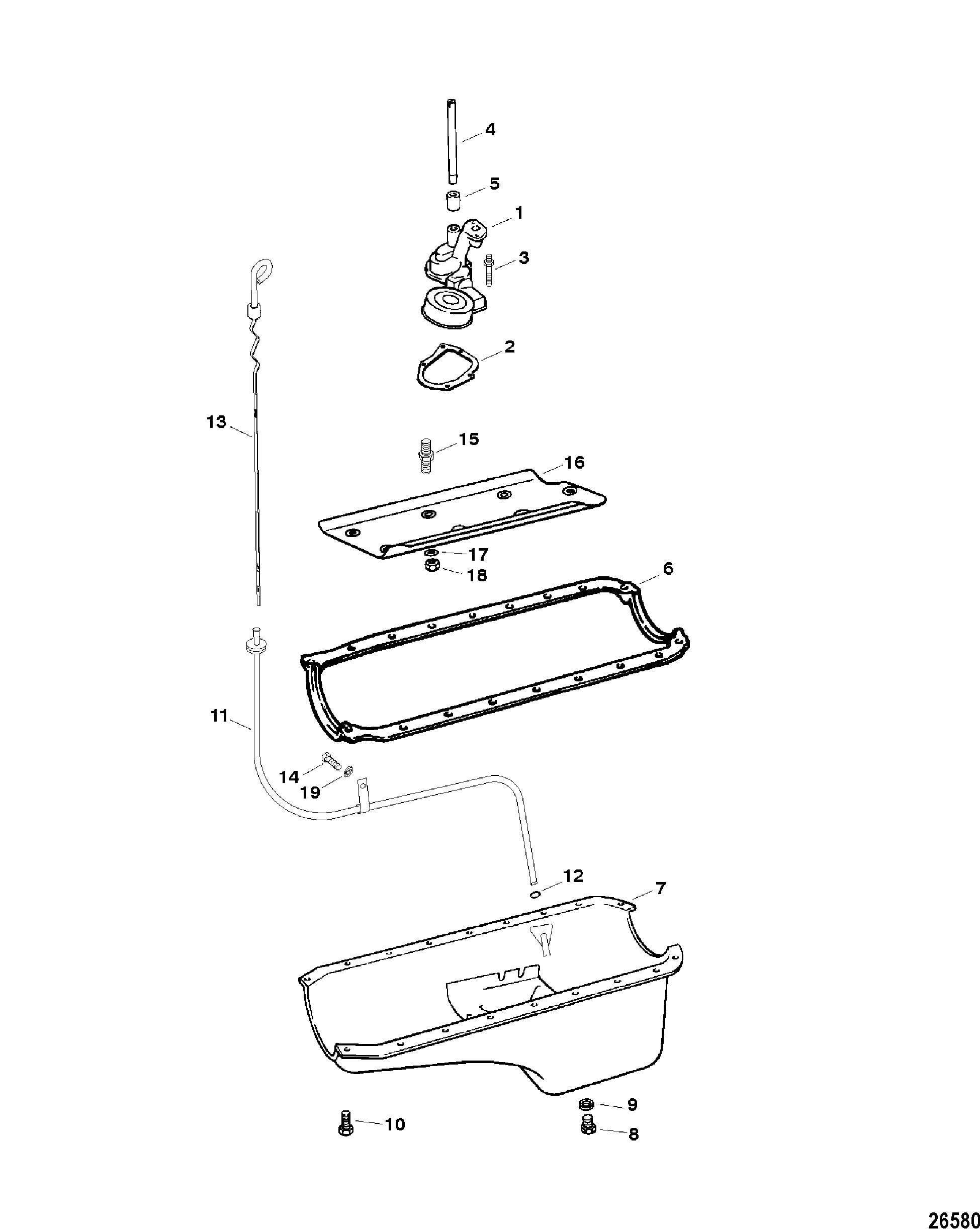

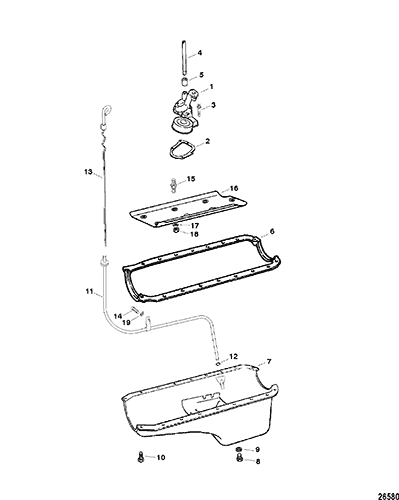

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 827589T1         PUMP ASSEMBLY, Oil 1
5
2 FI5000254         GASKET, Oil Pump Cover 1   This Part is No Longer Available 2
NS 12-20028         WASHER, (.265 x .437 x .060) 1

3 16-845599



STUD 1 16-49108 5
4 14761



SHAFT AND RETAINER 1
5
5 23-36183



RETAINER 1
5
6 27-845628



GASKET 1 27-811566 2,5
7 845668T



PAN ASSEMBLY, Oil 1 850458 5
8 10-809911001



SCREW, Oil Drain (M12 x 1.75) 1 10-809911
9 27-8M0077608



GASKET, Oil Drain Screw 1 27-49955
10 10-808707



SCREW, (.312-18 x .625) 20
5
11 818631A6



TUBE ASSEMBLY, Dipstick 1
5
12 25-62704



O-RING, (.362 x .103) 1
2
13 861942T9



DIPSTICK, Oil Level 1 805567T
14 10-817505



SCREW, (.250-20 x .620) Stainless Steel 1
5
15 16-811683



STUD, (.375-16/.500-12 x 5.500) 5
5
16 843945T



BAFFLE 1 811682 5
17 12-20553



WASHER, (.406 x .734 x .063) 5
5
18 11-37500



NUT 5
5
19 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 1
5
- 27-818572A98



GASKET SET, Engine Overhaul 1
