600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Fuel Pump And Fuel Filter

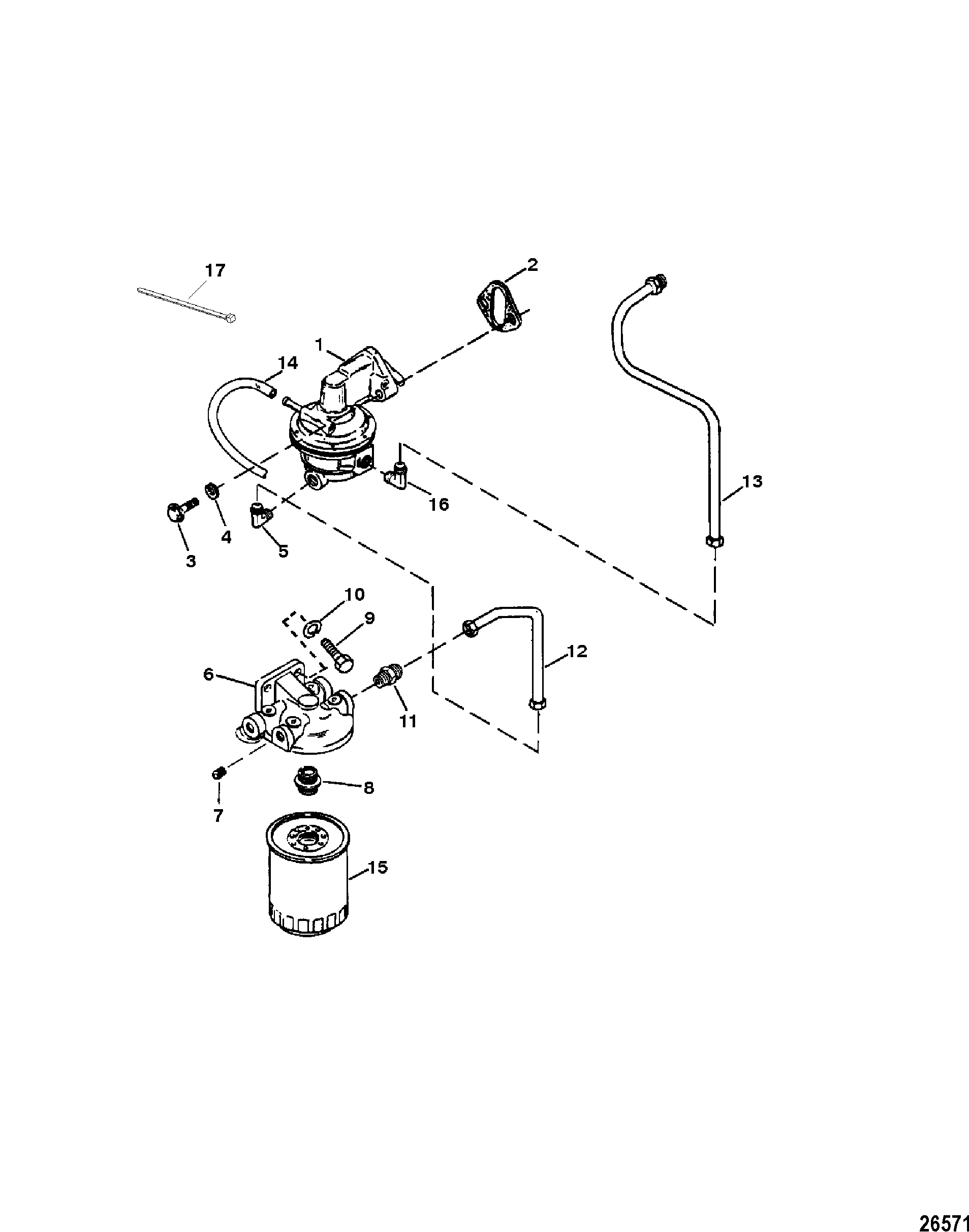

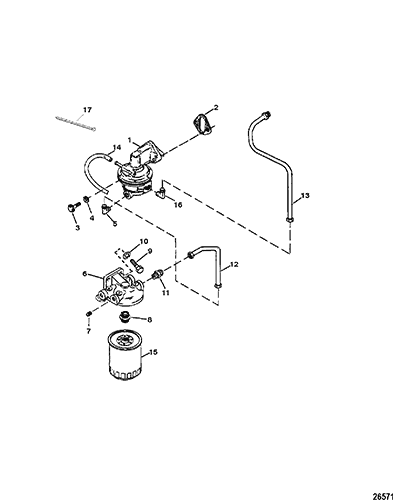

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861677T | PUMP ASSEMBLY, Fuel | 1 | 818383T | |||||
| 2 | 27-34213 | 676-9-61041 | 700-31360 | GASKET, Fuel Pump | 1 | 3 | |||
| 3 | 10-34354 | SCREW, (.375-16 x 1.50) | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER, (.375) | 2 | ||||||
| 5 | 22-93385 | FITTING, (90 Degree) | 2 | ||||||
| 6 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | ||||||
| 7 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 3 | ||||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 9 | 10-28782 | SCREW, (.312-18 x .880) | 2 | ||||||
| 10 | 13-26993 | LOCKWASHER, (.312) | 2 | ||||||
| 11 | 22-33821 | CONNECTOR | 2 | ||||||
| 12 | 32-848602 | LINE, Fuel - Filter To Pump | 1 | ||||||
| 13 | 32-848595 | LINE, Fuel - Fuel Pump To Carburetor | 1 | ||||||
| 14 | 32-8M8023638 | TUBING (36.00 Inches) Fuel Pump To Carburetor | 1 | 32-84862864 | |||||
| 15 | 35-802893Q01 | FILTER, Fuel/Water Separator | 1 | 35-807172 | |||||
| 16 | 22-817395 | FITTING, 45 Degree | 1 | ||||||
| 17 | 56762 | TIE STRAP, (4.00 Inches) | 5 | ||||||
| - | 27-818188A98 | GASKET SET, Engine Overhaul | 1 | 27-818188A96 |
