600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Mount Plates

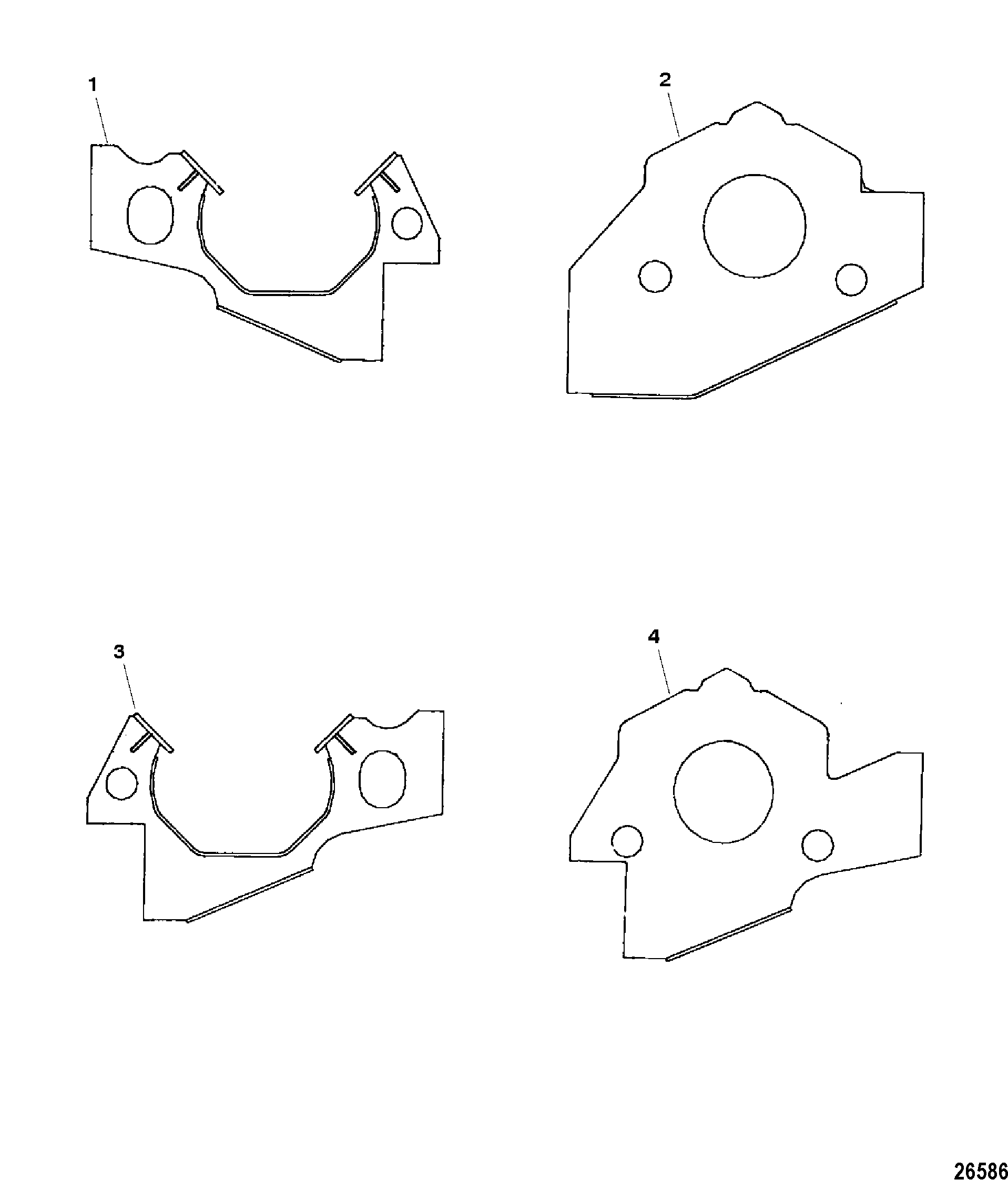

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849310T         MOUNT, Engine - Front - Starboard - Staggered AR 816308
2 847807T         MOUNT, Engine - Rear - Side By Side AR 847807 This Part is No Longer Available
3 849335T         MOUNT, Engine - Front - Port - Staggered AR 816307
4 847808T         MOUNT, Engine - Rear - Staggered AR 847808
- 10-86518         SCREW, (.375-16 x 1.00) 6
- 12-20553     700-21675   WASHER, (.406 x .734 x .063) 6
