600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Power Steering Components

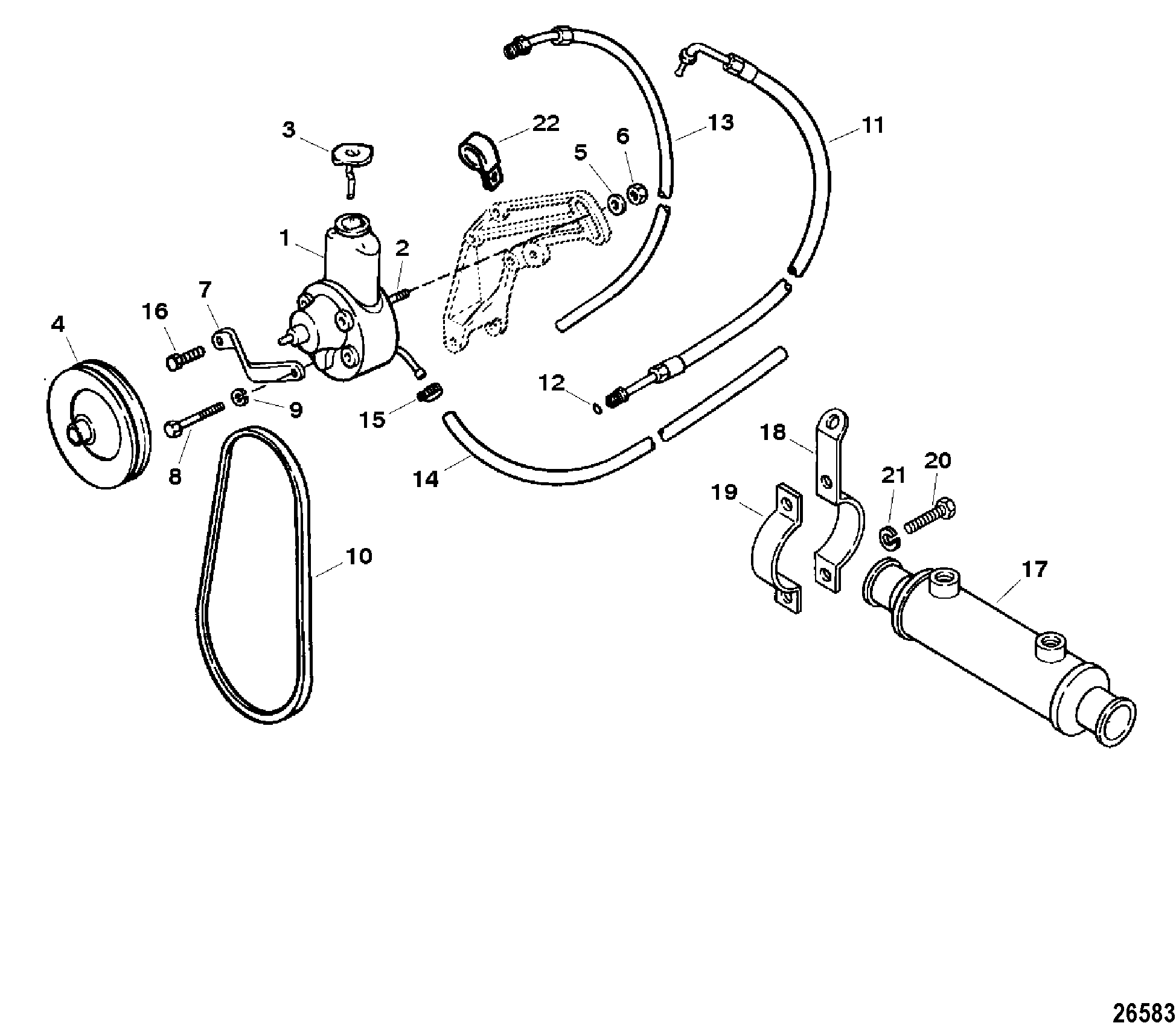

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 16792A25         PUMP ASSEMBLY, Power Steering - Blue 1

2 16-41877         STUD, (M10) 1

3 36-95805         CAP 1

4 738733         PULLEY, Blue 1   This Part is No Longer Available
5 12-34567



WASHER (.453 x .875 x .12) Brace Slot 2

5 12-45175



WASHER, (.406 x .750 x .104) 1

6 11-90517



NUT, (M10) 2

7 847765



BRACE 1

8 10-40001188



SCREW, (M10 x 20) 1

9 13-400248



LOCKWASHER, (M10) 1

10 57-96834Q



V BELT 1 57-96834T
11 32-98494



HOSE ASSEMBLY, Fittings On Both Ends 1

12 25-89879



O-RING, (.301 x .064) 1

13 32-9884339



HOSE ASSEMBLY, (72.00 Inches Bulk), Fitting On One End - Cut As Required 1

14 32-8M0062341



HOSE, (53.00 Inches Bulk), Pump To Oil Cooler - Cut As Required 1 32-5251914
15 54-180761



CLAMP, Worm Gear 3

16 10-35047



SCREW, (.375-16 x 1.250) Stainless Steel 1

17 99356A2



COOLER, Oil - Power Steering 1

18 63820F3



BRACKET, Long Style 1 638203
19 563281



BRACKET, Short Style 1
20 10-49668



SCREW, (.250-20 x .750) 2
21 13-26992



LOCKWASHER, (.250) 2
22 54-848183



J CLIP, Power Steering Hose 1
- 54-42553



J CLIP 2
