600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Oil Cooler And Oil Filter

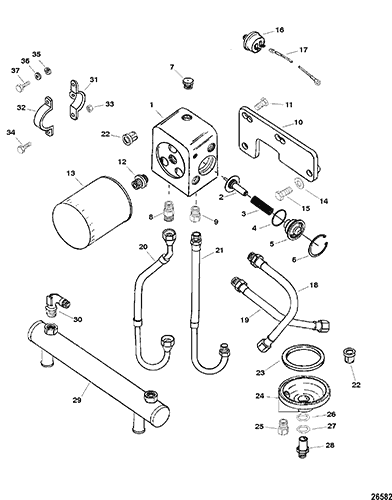

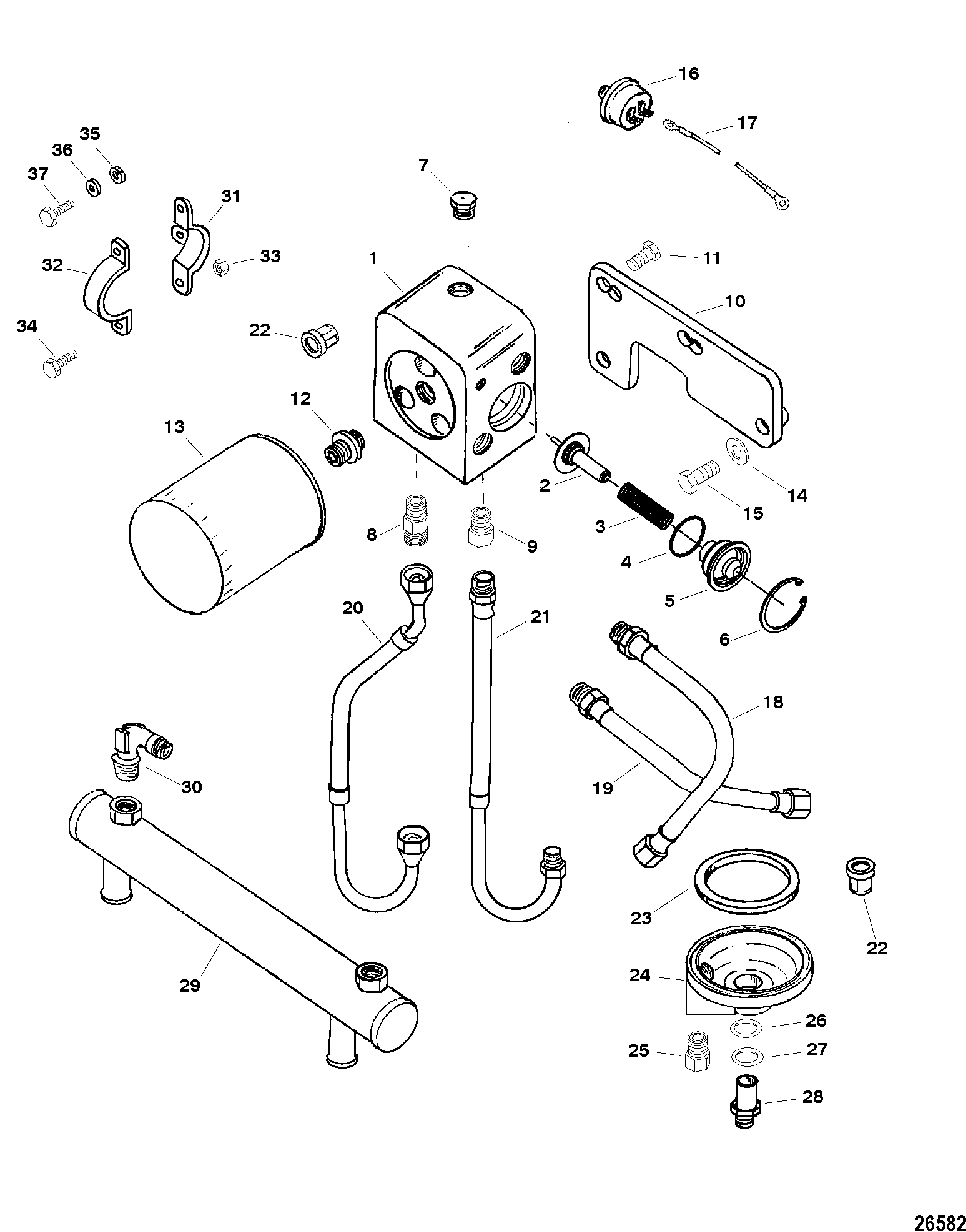

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 848555T



ADAPTOR, Oil Filter 1 848555
2 816163



THERMOSTAT 1

3 24-816162



SPRING 1

4 25-864701



O-RING, (1.112 x .103) 1 25-47632
5 8161651



COVER, Oil Thermostat 1

6 53-848571



RING, Retaining, Snap 1

7 22-32804



PLUG, (.500-14) 1

8 22-806186



FITTING 1

9 22-805563



CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) 1

10 8485562



BRACKET, Oil Adaptor 1

11 10-99204



SCREW, (.437-14 x 1.00) 2

12 22-805632



CONNECTOR, Oil Filter 1

13 35-16595Q



FILTER, Oil 1 35-16595
14 12-45176



WASHER, (.453 x .812 x .105) 2

15 10-825427



SCREW, (.437-14 x 1.250) 2

16 87-94009



SWITCH, Choke 1

17 84-848879A1



CABLE ASSEMBLY, Sender To Choke 1

18 32-8485742



HOSE ASSEMBLY (14.500 Inches) 1

19 32-848577



HOSE ASSEMBLY (19.00 Inches) 1

20 32-848573



HOSE ASSEMBLY, Remote Oil To Adaptor 1

21 32-848572



HOSE ASSEMBLY, Remote Oil To Adaptor 1

22 99889



VALVE, By Pass 2

23 27-91892



GASKET 1
3
24 35-818400A1



ADAPTOR 1

25 22-805563



CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) 1

26 25-90196



O-RING, (.921 x .139) 1

27 12-55822



WASHER 1

28 22-806121



FITTING 1

29 816482T



COOLER ASSEMBLY, Oil 1 816482
30 22-706811



ELBOW, 90 Degree 1
Cooler Front
30 22-47630



ELBOW, 90 Degree 1
Cooler Rear
31 12820



BRACKET, Oil Cooler 2

32 56328A1



BRACKET, Oil Cooler 2

33 11-30506



NUT, (.250-28) 4

34 10-60300



SCREW, (.250-28 x .750) 4

35 12-20553



WASHER, (.406 x .734 x .063) 2

36 13-35048



LOCKWASHER, (.375) 2

37 10-34353



SCREW, (.375-16 x 1.00) 2

- 27-818188A98



GASKET SET, Engine Overhaul 1 27-818188A96
