900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Carburetor And Linkage

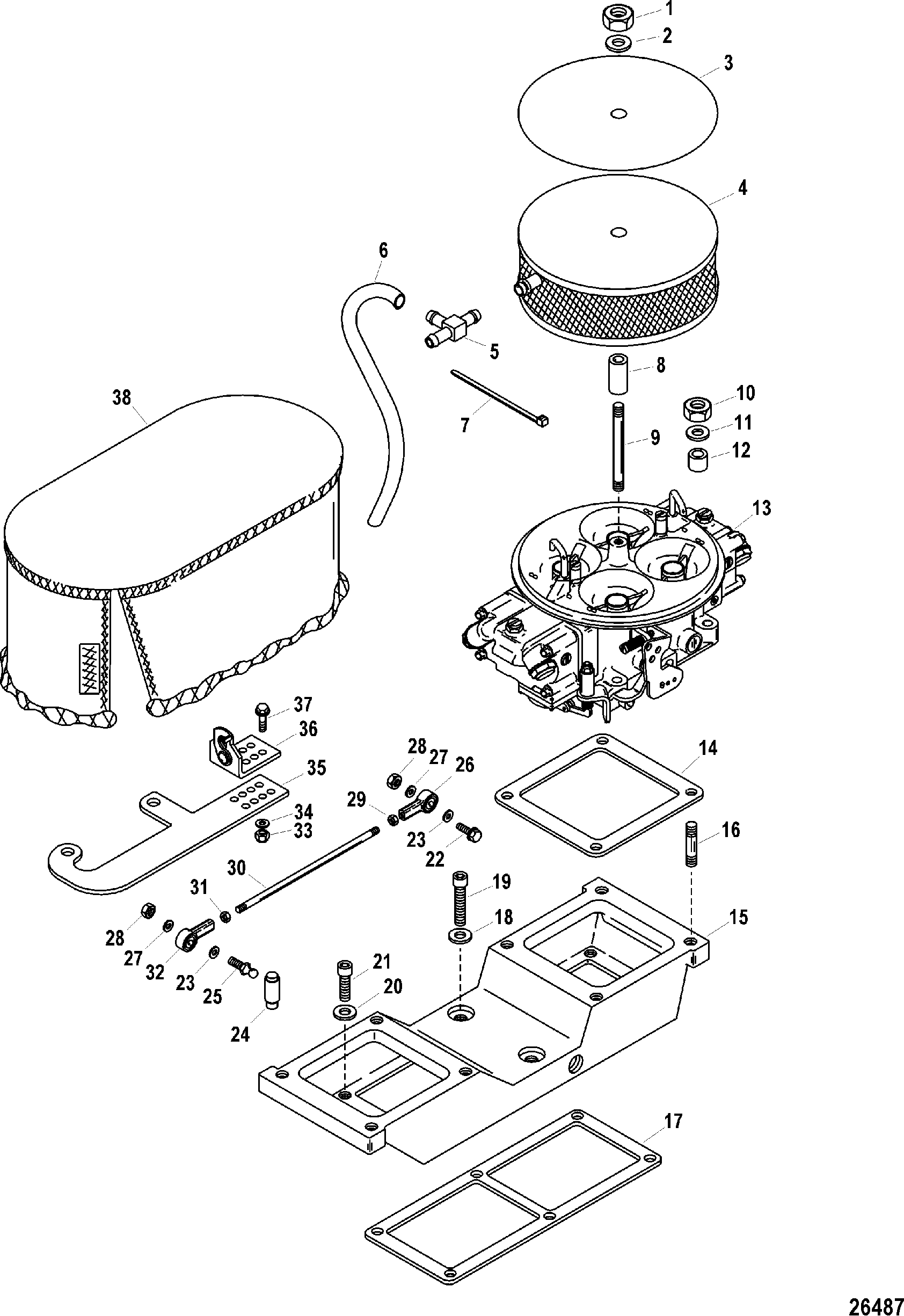

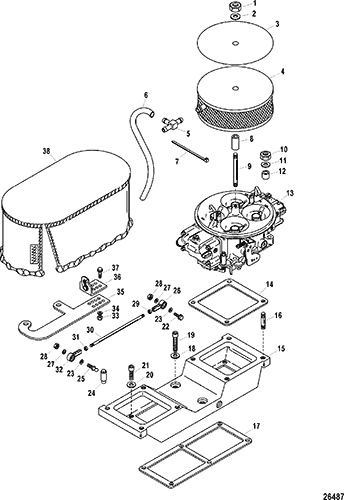

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Carburetor And Linkage
- Crankshaft - Piston - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Flywheel Housing
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates
- Oil Pan And Oil Pump
- Power-Assisted Steering Pump Assembly
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Switches
- Starter Motor And Alternator
- Starter Motor Components (50-808011A1)
- Supercharger Assembly
- Supercharger Components
- Thermostat Housing And Oil Cooler
- Transmission And Components (Driveline)
- Transmission And Components (Plug In)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 11-82670911 | NUT, (.312-24) Stainless Steel | 2 | 11-35814 | |||||
| 2 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 2 | ||||||
| 3 | 37-849344 | DECAL | 1 | NOTE: Front Carburetor | |||||
| 3 | 37-849345 | DECAL | 1 | NOTE: Rear Carburetor | |||||
| 4 | 849343 | ARRESTOR, Flame | 2 | ||||||
| 5 | 22-73318 | TEE, Plastic | 1 | ||||||
| 6 | 32-8M8023638 | TUBING, (54.00 Inches Bulk), Fuel Pump Vent - Cut 48.00 Inches | 1 | 32-84862872 | |||||
| 7 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | AR | |||||
| 8 | 23-840194 | SPACER, Arrestor Stud | 2 | ||||||
| 9 | 16-840195 | STUD, (.312-24 x 3.440), Flame Arrestor | 2 | This Part is No Longer Available | |||||
| 10 | 11-82670911 | NUT, (.312-24) Stainless Steel | 8 | ||||||
| 11 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 8 | ||||||
| 12 | 23-849083 | SPACER, Carburetor Mounting | 4 | ||||||
| 13 | 846000A5 | CARBURETOR ASSEMBLY | 2 | This Part is No Longer Available | |||||
| - | 1399-650896 | JET (.118) Primary | 4 | ||||||
| - | 1399-650898 | JET (.125) Secondary | 4 | ||||||
| - | 1396-9860 | POWER VALVE | 1 | ||||||
| - | 27-42270A1 | GASKET SET, Bowl | 1 | ||||||
| - | 8M0050786 | REBUILD KIT, Carburetor | 1 | 822386 | |||||
| - | 35-93568 | FILTER, Inlet | 2 | ||||||
| - | 24-48143 | SPRING, Filter | 2 | ||||||
| 14 | 27-42270A1 | GASKET, Carburetor Base | 2 | 27-12732 | 2 | ||||
| 15 | 818731A2 | ADAPTOR ASSEMBLY, Carburetor | 1 | This Part is No Longer Available | |||||
| 16 | 16-8M0034434 | STUD, (.312-18/.312-24 x 1.750) | 4 | 16-78986 | |||||
| 16 | 16-68167 | STUD, (.312-18/.312-24 x 2.560) | 4 | ||||||
| 17 | 27-848080 | GASKET, Adaptor To Supercharger | 1 | 2 | |||||
| 18 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 19 | 10-822168 | SCREW, (.375-16 x 1.750) Stainless Steel | 2 | ||||||
| 20 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 4 | ||||||
| 21 | 10-30206 | 700-22430 | SCREW, (.375-16 x 1.00) Stainless Steel | 4 | |||||
| 22 | 10-36137 | SCREW, (.250-28 x 1.00) | 1 | ||||||
| 23 | 12-39143 | WASHER, (.253 x .625 x .0937) | 2 | ||||||
| 24 | 807484 | BALL JOINT ASSEMBLY, Quick Release, Cable End | 1 | ||||||
| 25 | 16-818708 | STUD (.250-28 x Special) Throttle Cable | 1 | ||||||
| 26 | 847881 | ROD END, Right Hand | 1 | ||||||
| 27 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 28 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 2 | ||||
| 29 | 11-20013 | NUT, (.250-28), Right Hand | 1 | ||||||
| 30 | 818710 | ROD, Throttle Linkage | 1 | ||||||
| 31 | 11-20754 | NUT, (.250-28), Left Hand | 1 | This Part is No Longer Available | |||||
| 32 | 818709 | ROD END, Left Hand | 1 | ||||||
| 33 | 11-8267096 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 34 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 35 | 818705001 | BRACKET, Cable Attaching | 1 | 818705 | |||||
| 36 | 807485T | BRACKET ASSEMBLY, Cable Lock | 1 | ||||||
| 37 | 10-89766 | SCREW, (#10-32 x .620) Stainless Steel | 2 | ||||||
| 38 | 849106 | COVER, Carburetor | 1 | ||||||
| - | 27-840277A1 | GASKET/SEAL SET, Engine Overhaul | 1 | This Part is No Longer Available |
