900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Mount Plates

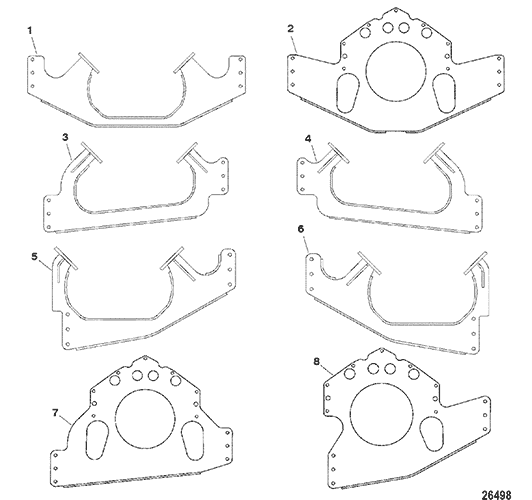

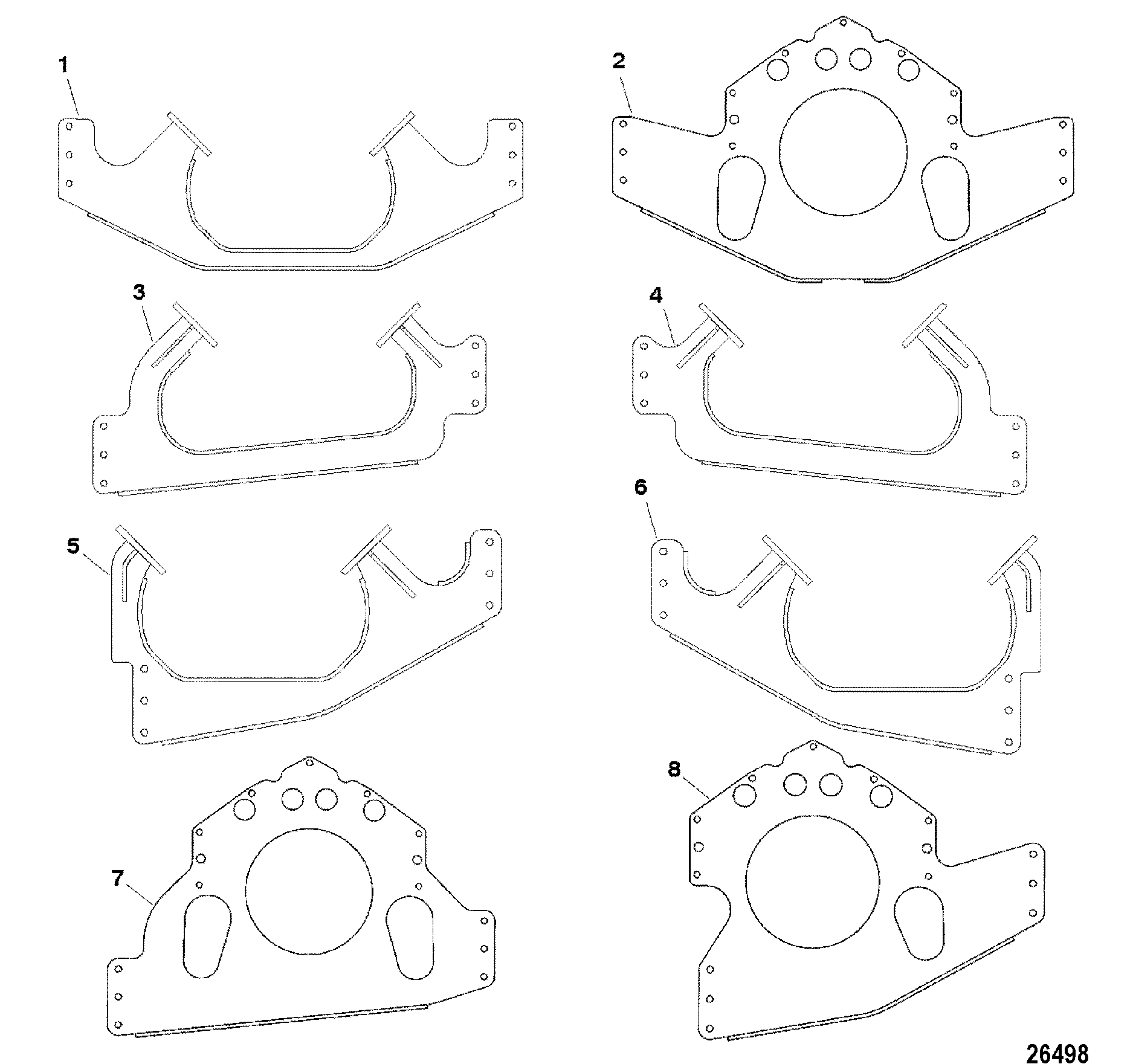

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Carburetor And Linkage
- Crankshaft - Piston - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Flywheel Housing
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates
- Oil Pan And Oil Pump
- Power-Assisted Steering Pump Assembly
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Switches
- Starter Motor And Alternator
- Starter Motor Components (50-808011A1)
- Supercharger Assembly
- Supercharger Components
- Thermostat Housing And Oil Cooler
- Transmission And Components (Driveline)
- Transmission And Components (Plug In)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849143T | MOUNT, Engine, Front - Single | AR | ||||||
| 2 | 844346T | MOUNT, Engine, Rear - Single | AR | 844843T | |||||
| 3 | 849299T | MOUNT, Engine, Front Starboard - Side By Side | AR | ||||||
| 4 | 849339T | MOUNT, Engine, Front Port - Side By Side | AR | ||||||
| 5 | 849310T | MOUNT, Engine, Front Starboard - Staggered | AR | ||||||
| 6 | 849335T | MOUNT, Engine, Front Port - Staggered | AR | ||||||
| 7 | 844844T | MOUNT, Engine, Rear - Side By Side | AR | ||||||
| 8 | 844845T | MOUNT, Engine, Rear - Staggered | AR | ||||||
| - | 10-96861 | SCREW, (.375-16 x 1.125) | 6 | ||||||
| - | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 |
