900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Transmission And Components (Plug In)

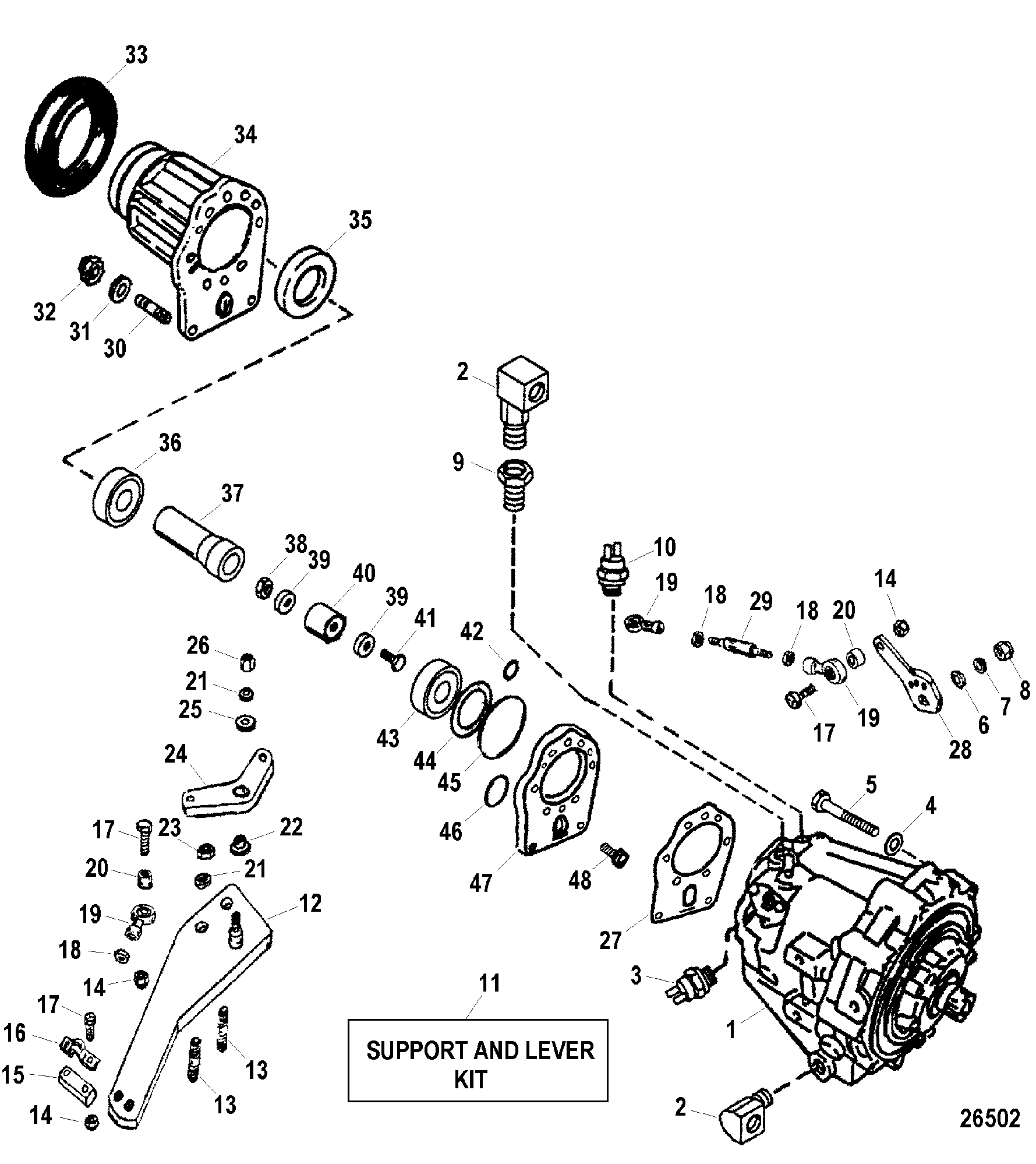

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 842979A04         TRANSMISSION ASSEMBLY, Complete 1 849317A4 This Part is No Longer Available
1 842979A03         TRANSMISSION ASSEMBLY 1 849317A3 This Part is No Longer Available
2 22-47629         ELBOW, 90 Degree, Transmission To Oil Hose 2
3 47613         SWITCH, Neutral 1
4 13-32993         LOCKWASHER, (.437) 6
5 10-60179         SCREW, (.437-14 x 3.500) 6
6 12-20722         WASHER, (.328 x .625 x .060) 1   This Part is No Longer Available
7 13-26993         LOCKWASHER, (.312) 1
8 11-22053         NUT, (.312-24) 1
9 22-88517         FITTING, Reducing 1
10 87-88031         SWITCH ASSEMBLY, Oil Temperature 1
11 847145T1         SUPPORT AND LEVER KIT, Universal Joint 1
12 8M0053746         PLATE ASSEMBLY, Shift Linkage Mount 1 847175
13 16-846453         STUD, (.375-16 x 1.250) 2
14 11-8267096         NUT, (#10-32) 5 11-34059
15 846344         SPACER, Cable Bracket 1
16 54-846341         BRACKET, Shift Cable 1
17 10-34994         SCREW, (#10-32 x 1.00) Stainless Steel 5
18 11-68219         NUT, (#10-32) Stainless Steel 3
19 846786         ROD END 3
20 23-846787         SPACER, Rod End 3
21 12-841388         WASHER, (.410 x .810 x .050) Stainless Steel 3
22 23-812707         BUSHING 1
23 11-826709112         NUT, (.375-16) 2 11-846869
24 847025         ARM, Shift Cable 1
25 12-846783         WASHER, (.562 x 1.250 x .062) Nylon 1
26 11-826709113         NUT, (.375-24) Stainless Steel 1
27 27-47903         GASKET, Transmission To Support Housing 1
28 847052         LEVER, Shift 1
29 16-846964         STUD, (#10-32 x 2.09), Shift Rod 1
30 16-847030         STUD, (.437-14/.437-20 x 3.00) 6
30 16-847031         STUD, (.437-14/.437-20 x 2.750) 2
31 12-842922         WASHER, (.450 x .750 x .060) Stainless Steel 8
32 11-34933   676-9-72004     NUT, (.437-20) Stainless Steel 8 11-82671015
33 846693         SEAL, Housing 1
34 8M0050742         SUPPORT ASSEMBLY, Universal Joint 1 847123A1
34 8M0054154         HOUSING, Universal Joint Support 1 8469611
35 26-846497         SEAL, Inner Coupler 1
36 31-846477A1         BEARING SET, Cup And Cone, Rear Coupler 1
37 8M0050930         SHAFT, Coupling 1 846960 This Part is No Longer Available
38 11-82670910         NUT, (.312-18) Stainless Steel 1
39 12-846967         WASHER, (.376 x 1.430 x .250) 2
40 23-847027         SEAL, Coupler 1
41 10-847209         SHOULDER SCREW, (.375-16) 1
42 25-847033         O-RING, (.620 x .09) 1
43 31-846695A1         BEARING SET, Cup And Cone, Front Coupler 1
44 15-847029A1         SHIM SET, Bearing 1
45 25-841807         O-RING, (3.500 x .103) 1
46 25-847034         O-RING, (1.310 x .09) 1
47 8470121         SPACER, Universal Joint 1
48 10-76769         SCREW, (.375-16 x .880) 3
