900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Electrical Components

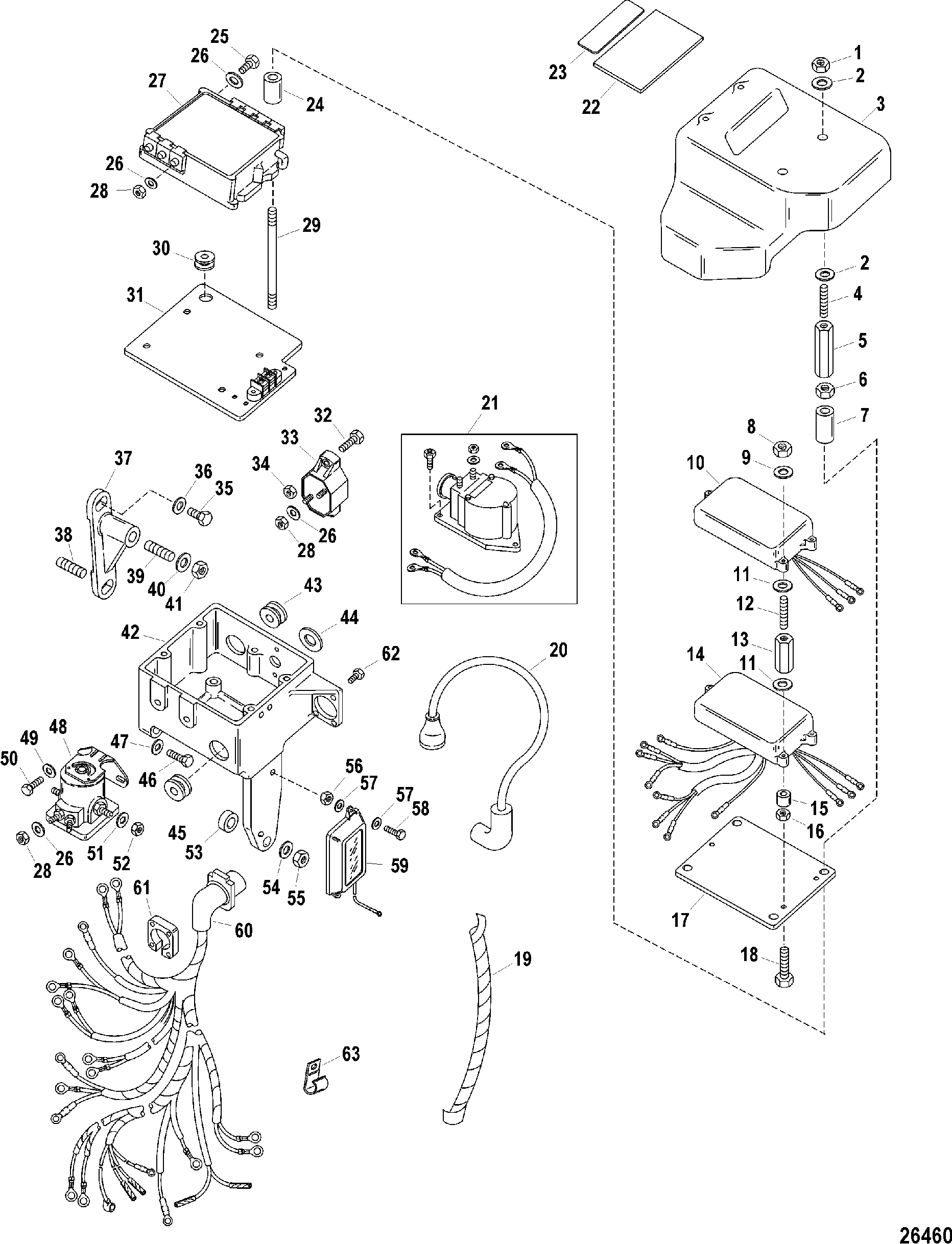

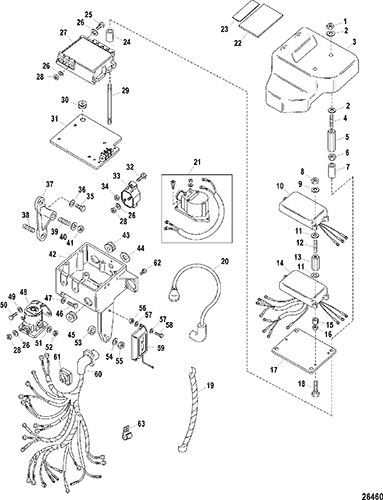

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 11-35888   676-9-72001 700-21180   NUT, (.250-28) Stainless Steel 4
2 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 8
3 65939         COVER 1
4 16-846386         STUD, (.250-28 x 1.120) 4
5 11-840200         NUT, Special 4   This Part is No Longer Available
6 11-29598         NUT, (.250-28) Stainless Steel 4
7 23-848120         SPACER 4
8 11-859124     700-21161   NUT, (#10-32) Stainless Steel 3 11-45812
9 12-30164         WASHER, (.192 x .375 x .0312) Stainless Steel 3
10 859209A1         MODULE, Advance Solenoid 1
11 12-30164         WASHER, (.192 x .375 x .0312) Stainless Steel 6
12 16-30172         STUD (#10-32 x 1.1250) 3
13 11-840199         NUT, Special 3   This Part is No Longer Available
14 825317A6         MODULE, Spark Advance 1   This Part is No Longer Available
15 23-67269         SPACER 3
16 11-68219         NUT, (#10-32) Stainless Steel 3
17 847923         BRACKET, Spark Advance Module 1
18 10-76502         SCREW, (.190-32 x 1.880) 3
19 32-77690         LOOM, (12.00 Inches x .250 Spiral Cut), Cut As Required AR
19 32-77760         LOOM, (12.00 Inches x .500 Spiral Cut), Cut As Required AR
20 84-93529A9         CABLE ASSEMBLY, Coil 1   This Part is No Longer Available
21 332-4895A8         COIL KIT 1
22 37-41358         DECAL, Caution 1
23 37-48100         DECAL, Thunderbolt 1   This Part is No Longer Available
24 23-848119         SPACER 4
25 10-42813         SCREW (#10-32 x .385) 1
26 13-26996         LOCKWASHER, (#10) Stainless Steel 12
27 332-2986A27         SWITCHBOX ASSEMBLY 1
28 11-68219         NUT, (#10-32) Stainless Steel 11
29 16-848140         STUD (.250-20/.250-28 x 5.060) 4
30 25-88033         GROMMET 1
31 848079A1         COVER ASSEMBLY 1 848079A2 This Part is No Longer Available
32 10-66686         SCREW, (#10-32 x 1.00) 2
33 88-11178A01         BREAKER, Circuit - 50 Ampere 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
34 11-61356         NUT, (#10-32) Reduced Hex 2
35 10-818369         SCREW (.375-16 x 1.25 Special) 1   This Part is No Longer Available
36 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 2
37 818811         BRACKET, Electrical Compartment 1   This Part is No Longer Available
38 16-818824         STUD, (.375-16/.375-24 x 1.590) 1
39 16-818824         STUD, (.375-16/.375-24 x 1.590) 1
40 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 2
41 11-82671013         NUT, (.375-24) 2 11-34932
42 691182         BRACKET, Electrical Mount 1   This Part is No Longer Available
43 25-47623         GROMMET 1
44 37-72554         DECAL, Circuit Breaker 1
45 25-57009001         GROMMET 1 25-57009
46 10-358701         SCREW, (.375-16 x 2.00), Compartment To Flywheel Housing 1
47 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 1
48 25661T1         SOLENOID 1
49 13-26992         LOCKWASHER, (.250) Stainless Steel 2
50 10-73286         SCREW, (.250-20 x .500) Stainless Steel 2
51 13-26993         LOCKWASHER, (.312) 2
52 11-28770         NUT, (.312-24) Stainless Steel 2
53 12-848136         WASHER, (.328 x .680 x .190), Used As Spacer 2
54 12-843108         WASHER, (.330 x .560 x .060) Stainless Steel 1
55 11-82670911         NUT, (.312-24) Stainless Steel, Brace To Cooler Cover 1 11-35814
56 11-F1669         NUT, (#6-32) 2
57 12-27882         WASHER 4
58 10-12110         SCREW, (#6-32 x .750) 2
59 79-8M0050399         MONITOR, Maintenance 1 79-859000A2
60 84-849042A2         HARNESS ASSEMBLY, Engine 1
61 26079A2         PLATE KIT, Wire Harness Mount 1
62 10-15001         SCREW, (#8-16 x .875) 4
63 54-78945         J CLAMP, Harness Support 2
