900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Crankshaft - Piston - Connecting Rods

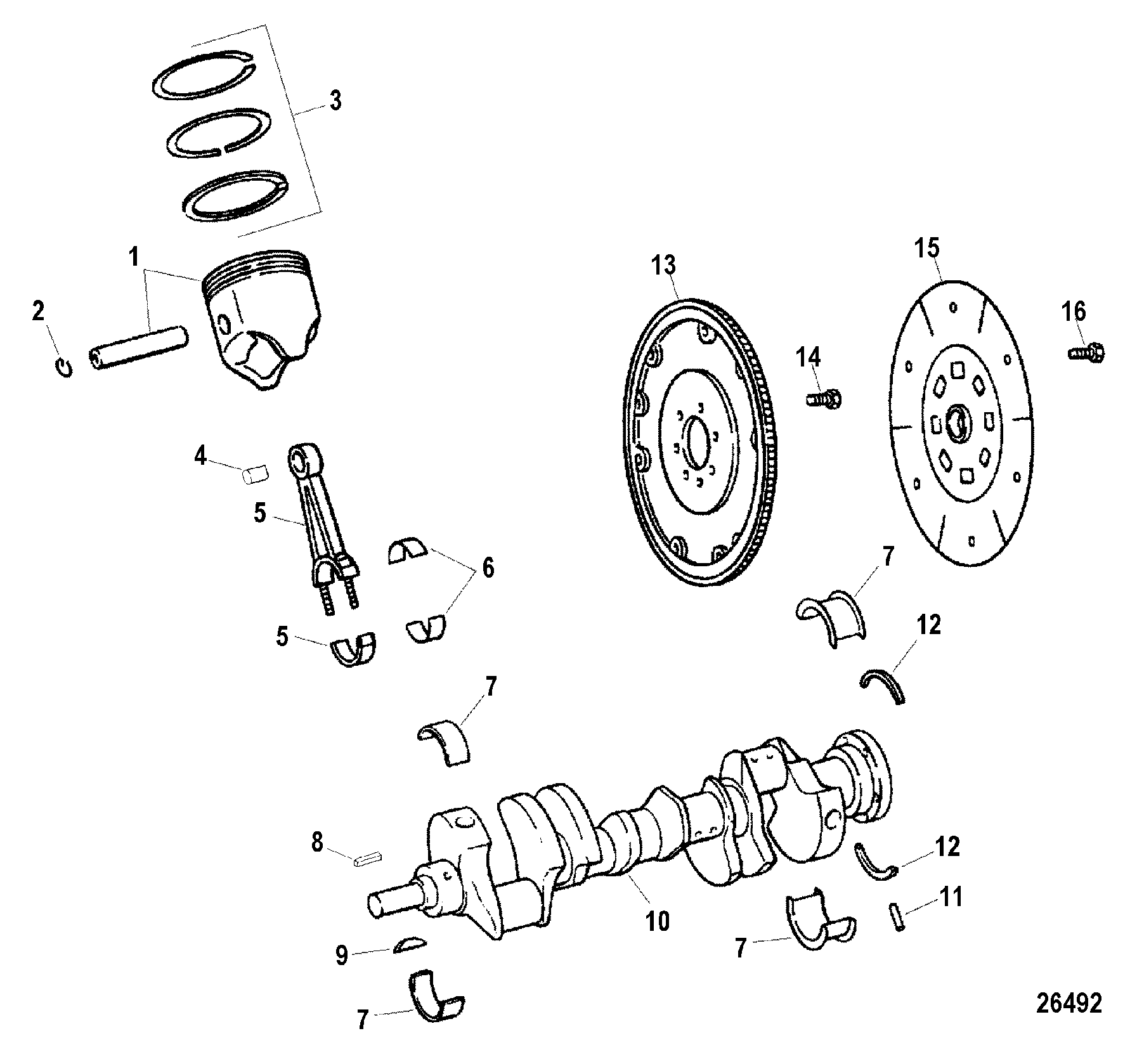

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Carburetor And Linkage
- Crankshaft - Piston - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Flywheel Housing
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates
- Oil Pan And Oil Pump
- Power-Assisted Steering Pump Assembly
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Switches
- Starter Motor And Alternator
- Starter Motor Components (50-808011A1)
- Supercharger Assembly
- Supercharger Components
- Thermostat Housing And Oil Cooler
- Transmission And Components (Driveline)
- Transmission And Components (Plug In)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 2700-849004A4 | PISTON ASSEMBLY | 8 | Standard 5 | |||||
| 1 | 2700-849004A6 | PISTON ASSEMBLY | 8 | .005 Oversize 5 | |||||
| 2 | 40-849390 | CIRCLIP | 2 | 5 | |||||
| 3 | 39-42733 | RING SET, Piston - Standard | 1 | 5 | |||||
| 3 | NSS | NOT SOLD SEPARATE, Piston - .005 Oversize - NOTE: Use Standard Ring Set | 1 | This Part is not sold seperately | |||||
| 4 | 42839 | BUSHING, Connecting Rod Cap | 8 | 5 | |||||
| 5 | 622-821414A01 | CONNECTING ROD ASSEMBLY | 8 | 622-821414 | 5 | ||||
| 6 | 23-8M0030698 | BEARING SET, Connecting Rod - Standard | 4 | 23-841447001 | NOTE: Used In Cylinders 2 - 4 - 6 - 8 5 | ||||
| 6 | 23-8M0030699 | BEARING SET, Connecting Rod - Standard | 4 | 23-841447002 | NOTE: Used In Cylinders 1 - 3 - 5 - 7 5 | ||||
| 6 | 23-8M0030693 | BEARING SET, Connecting Rod - .001 Oversize | AR | 23-841448001 | This Part is No Longer Available - NOTE: Used In Cylinders 2 - 4 - 6 - 8 | ||||
| 6 | 23-8M0030695 | BEARING SET, Connecting Rod - .001 Oversize | AR | 23-841448002 | This Part is No Longer Available - NOTE: Used In Cylinders 1 - 3 - 5 - 7 | ||||
| 6 | 23-8M0030696 | BEARING SET, Connecting Rod - .001 Undersize | AR | 23-841449001 | This Part is No Longer Available - NOTE: Used In Cylinders 2 - 4 - 6 - 8 | ||||
| 6 | 23-8M0030697 | BEARING SET, Connecting Rod - .001 Undersize | AR | 23-841449002 | This Part is No Longer Available - NOTE: Used In Cylinders 1 - 3 - 5 - 7 | ||||
| 6 | 23-841450001 | BEARING SET, Connecting Rod - .010 Undersize | AR | This Part is No Longer Available - NOTE: Used In Cylinders 2 - 4 - 6 - 8 | |||||
| 6 | 23-841450002 | BEARING SET, Connecting Rod - .010 Undersize | AR | This Part is No Longer Available - NOTE: Used In Cylinders 1 - 3 - 5 - 7 | |||||
| 7 | 8M0051198 | BEARING SET, Main - Standard | 1 | 23-842400 | 5 | ||||
| 7 | 8M0053743 | BEARING SET, Main - .001 Oversize | AR | 23-842401 | |||||
| 7 | 23-842402 | BEARING SET, Main - .001 Undersize | AR | ||||||
| 7 | 23-8M0053549 | BEARING SET, Main - .010 Undersize | AR | 23-842403 | |||||
| 8 | 28-818782 | KEY, Crankshaft (.250 Square x 1.66) | 1 | 5 | |||||
| 9 | 28-34466 | KEY, Crankshaft | 3 | 5 | |||||
| 10 | 484-8163761 | CRANKSHAFT | 1 | 5 | |||||
| 11 | 17-843378 | PIN, Dowel (.250) Rear Main Cap | 1 | 17-35312 | 5 | ||||
| 12 | 26-841462 | SEAL SET, Rear Main (2 Per Set) | 1 | 26-891555 | 2,5 | ||||
| 13 | 230-742412 | FLYWHEEL | 1 | This Part is No Longer Available 5 | |||||
| 14 | 10-8M0009552 | SCREW, (.437-20 x 1.00) 12 Point | 6 | 5 | |||||
| 14 | 10-848228 | SCREW, (.500-20 x 1.06) | 1 | 5 | |||||
| 15 | 8M0051206 | DRIVEPLATE ASSEMBLY | 1 | 816618 | |||||
| 16 | 10-35091 | SCREW, (.375-16 x 1.00) | 12 | ||||||
| - | 27-840277A1 | GASKET/SEAL SET, Engine Overhaul | 1 | This Part is No Longer Available |
