900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Cylinder Block And Camshaft

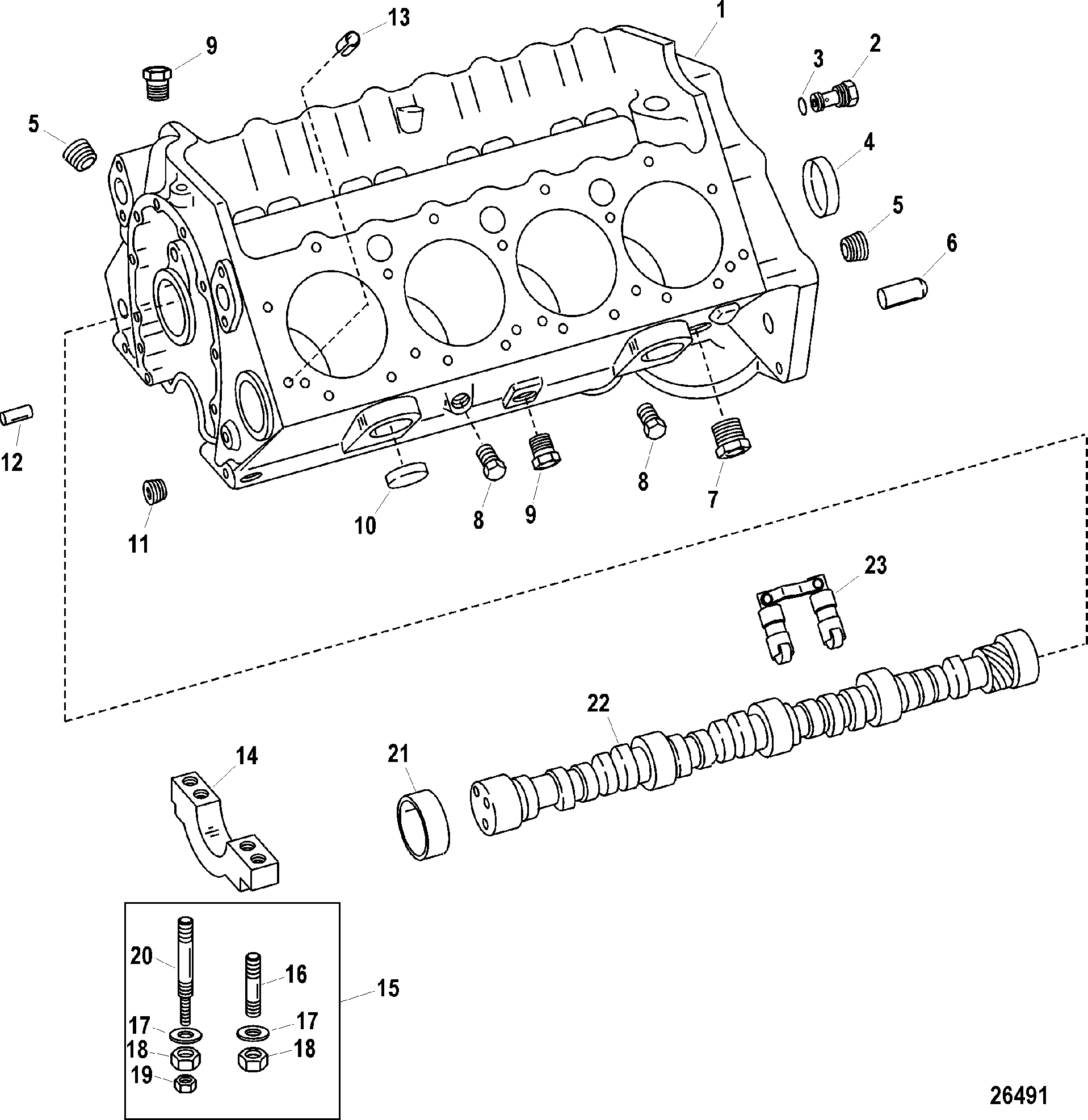

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849040A7         PARTIAL ENGINE ASSEMBLY 1   This Part is No Longer Available
1 889-843210A12         CYLINDER BLOCK ASSEMBLY 1 17826A14 This Part is No Longer Available 5
2 22-968351         FITTING ASSEMBLY, Oil Restrictor 2   This Part is No Longer Available 5
3 25-62702         O-RING, (.301 x .070) 2   2,5
4 19-94140         EXPANSION PLUG, Camshaft 1   5
5 22-47540         PLUG, Pipe - Allen Head (.375-18) 2   5
6 17-843379         PIN, Dowel, Flywheel Housing 2 17-72382 5
7 22-64013         FITTING, (.375 Male To .125 Female) 1   5
8 22-328022         PLUG, Pipe (.125-27) Brass 4   5
9 22-36382     700-21887   FITTING, (.250-18 x .62) Brass 3   5
10 22-69300         EXPANSION PLUG, (1.750 Diameter) 8   5
11 22-32561         PLUG, Pipe - Allen Head (.250-18) 3   5
12 17-843378         PIN, Dowel, Timing Cover 2 17-35312 5
13 17-52190         PIN, Dowel - Cylinder Head 4   5
14 186811         CAP, Main - Steel 4   5
15 814440A1         STUD KIT, Main Cap 1   This Part is No Longer Available 5
16 16-816252         STUD, (.500-13/.500-20 x 4.400) 10   5
16 16-816253         STUD, (.500-13/.500-20 x 3.620) 10   5
17 12-816258         WASHER, (.500 x .875 x .120) Special 20   5
18 11-816255         NUT, (.500-20), Main Cap 19   5
18 11-816256         NUT, (.500-20) 12 Point, Main Cap 1   5
19 11-816257         NUT, Special - Windage Tray 18   5
20 16-816254         STUD, Special - Windage Tray 9   5
21 23-85684         BEARING SET, Camshaft 1   5
22 496-849325         CAMSHAFT 1   5
23 841362A01         LIFTER ASSEMBLY, Roller Tappet - Pair 8 822834A4 5
- 27-840277A1         GASKET/SEAL SET, Engine Overhaul 1   This Part is No Longer Available
