900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Oil Pan And Oil Pump

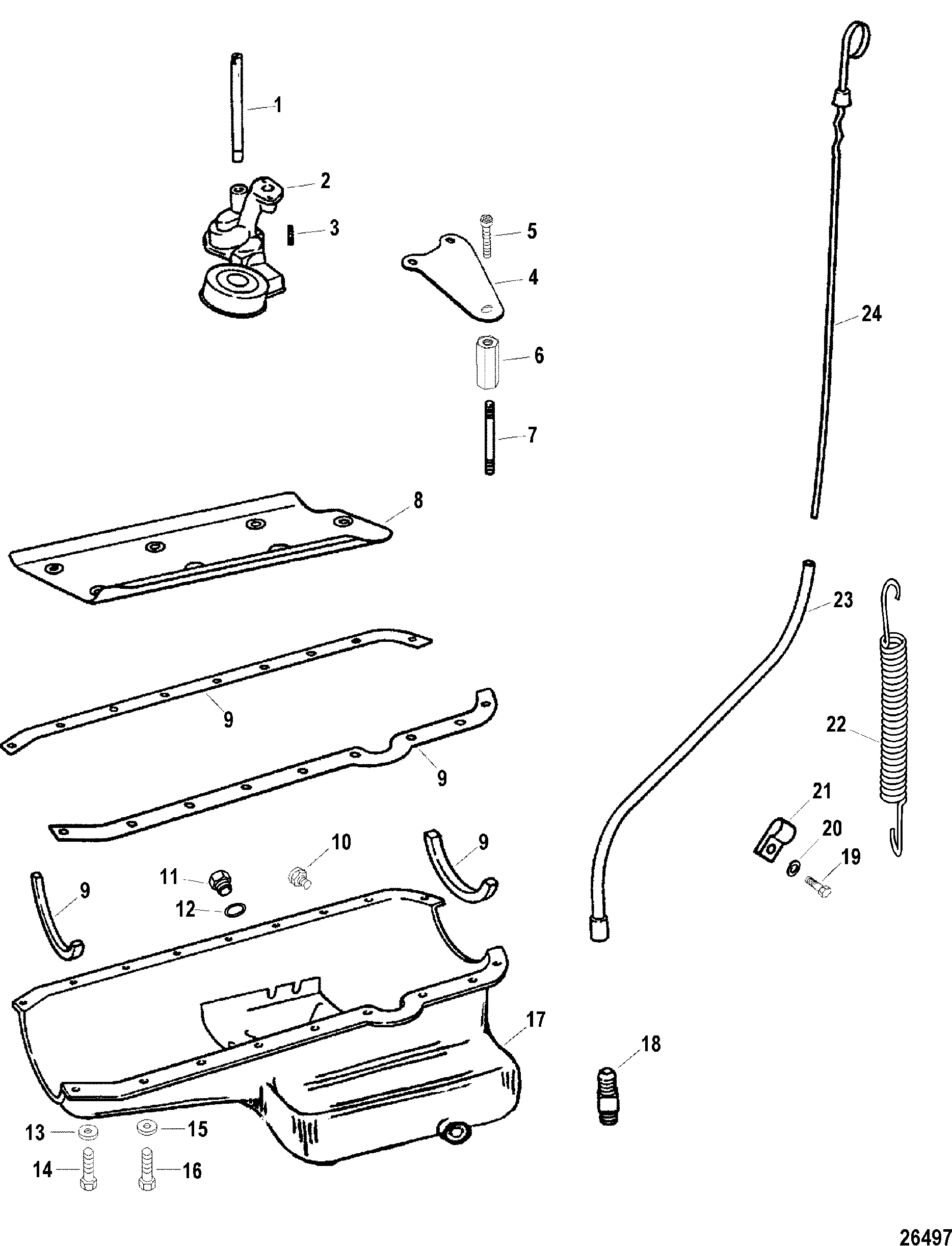

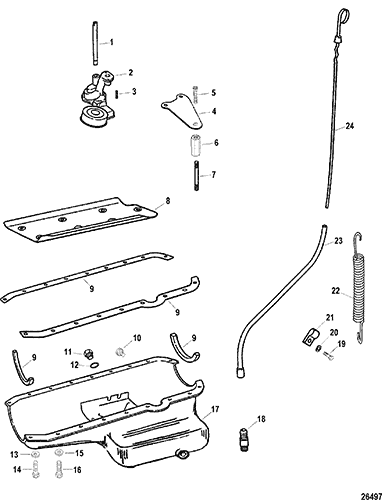

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Carburetor And Linkage
- Crankshaft - Piston - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Flywheel Housing
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates
- Oil Pan And Oil Pump
- Power-Assisted Steering Pump Assembly
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Switches
- Starter Motor And Alternator
- Starter Motor Components (50-808011A1)
- Supercharger Assembly
- Supercharger Components
- Thermostat Housing And Oil Cooler
- Transmission And Components (Driveline)
- Transmission And Components (Plug In)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 848511 | SHAFT, Oil Pump | 1 | 5 | |||||
| 2 | 98337A7 | PUMP ASSEMBLY, Oil | 1 | This Part is No Longer Available 5 | |||||
| 3 | 814444 | STUD KIT | 1 | 5 | |||||
| 4 | 849529A1 | BRACE KIT, Oil Pump | 1 | 5 | |||||
| 5 | 10-849660 | SCREW, (.375-24 x 1.00) | 1 | ||||||
| 6 | 11-849530 | NUT, Special | 1 | ||||||
| 7 | 16-816254 | STUD, Special | 1 | ||||||
| 8 | 848543 | WINDAGE TRAY | 1 | 5 | |||||
| 9 | 27-848305 | GASKET SET, Oil Pan | 1 | 2,5 | |||||
| 10 | 19-8154731 | PLUG, Drain (.875-14) | 1 | 5 | |||||
| 11 | 22-36373 | PLUG, (.375-18) Hex - Steel | 2 | 5 | |||||
| 12 | 25-849088 | O-RING, (.755 x .097) | 2 | 5 | |||||
| 13 | 12-20546 | WASHER, (.330 x .500 x .060) | 14 | 5 | |||||
| 14 | 10-861846 | SCREW, (.312-18 x .750) | 12 | 10-47576 | 5 | ||||
| 14 | 10-54523 | SCREW, (.312-18 x 1.00) | 2 | 5 | |||||
| 15 | 12-20028 | WASHER, (.265 x .437 x .060) | 2 | 5 | |||||
| 16 | 10-92160 | SCREW, (.250-20 x .750) Stainless Steel | 2 | 5 | |||||
| 17 | 817025T1 | PAN, Oil | 1 | 5 | |||||
| 18 | 22-42277 | FITTING | 1 | This Part is No Longer Available 5 | |||||
| 19 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 1 | 5 | |||||
| 20 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | 5 | |||||
| 21 | 54-822279 | CLIP, Oil Tube Support | 1 | 5 | |||||
| 22 | 24-849398 | SPRING | 1 | 5 | |||||
| 23 | 847599 | TUBE, Oil Dipstick | 1 | 5 | |||||
| 24 | 94010 | DIPSTICK | 1 | This Part is No Longer Available 5 | |||||
| - | 27-840277A1 | GASKET/SEAL SET, Engine Overhaul | 1 | This Part is No Longer Available |
