900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Thermostat Housing And Oil Cooler

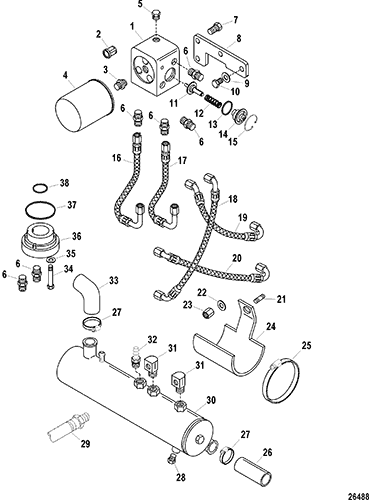

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Carburetor And Linkage
- Crankshaft - Piston - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Flywheel Housing
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates
- Oil Pan And Oil Pump
- Power-Assisted Steering Pump Assembly
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Switches
- Starter Motor And Alternator
- Starter Motor Components (50-808011A1)
- Supercharger Assembly
- Supercharger Components
- Thermostat Housing And Oil Cooler
- Transmission And Components (Driveline)
- Transmission And Components (Plug In)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 848555T | ADAPTOR, Oil Thermostat Housing | 1 | ||||||
| 2 | 99889 | VALVE, Bypass | 1 | ||||||
| 3 | 22-805632 | CONNECTOR, Oil Filter | 1 | ||||||
| 4 | 35-881126K01 | FILTER, Oil | 1 | 35-16595T1 | |||||
| 5 | 22-32804 | PLUG, (.500-14) | 1 | ||||||
| 6 | 22-84772013 | FITTING, Straight | 6 | ||||||
| 7 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 2 | ||||||
| 8 | 8485562 | BRACKET | 1 | ||||||
| 9 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 10 | 10-65210 | SCREW, (.375-16 x 1.00), Bracket To Cylinder Head | 2 | ||||||
| 11 | 816163 | THERMOSTAT, Oil | 1 | ||||||
| 12 | 24-816162 | SPRING | 1 | ||||||
| 13 | 25-864701 | O-RING, (1.112 x .103) | 1 | 25-47632 | 2 | ||||
| 14 | 8161651 | COVER, Oil Thermostat | 1 | ||||||
| 15 | 53-848571 | RING, Retaining | 1 | ||||||
| 16 | 32-821284A15 | HOSE ASSEMBLY (18.88 Inches) Adaptor To Filter Out | 1 | This Part is No Longer Available | |||||
| 17 | 32-821284A16 | HOSE ASSEMBLY (13.38 Inches) Filter To Adaptor Return | 1 | This Part is No Longer Available | |||||
| 18 | 32-821284A20 | HOSE ASSEMBLY (23.18 Inches) Filter To Cooler Out | 1 | ||||||
| 19 | 32-8M0010793 | HOSE ASSEMBLY (19.50 Inches) Return Cooler To Filter | 1 | 32-821284A18 | |||||
| 20 | 32-821284A17 | HOSE ASSEMBLY (23.88 Inches) Cooler To Cooler | 1 | ||||||
| 21 | 16-72742 | STUD, (.312-18/.324-24 x 1.090) | 1 | ||||||
| 22 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | ||||||
| 23 | 11-82670911 | NUT, (.312-24) Stainless Steel | 1 | ||||||
| 24 | 849324 | BRACKET, Oil Cooler | 1 | ||||||
| 25 | 54-815504352 | CLAMP, Worm Gear | 2 | ||||||
| 26 | 32-8M0062665 | HOSE, (48.00 Inches Bulk), Cut 5.00 Inches - Water Pump To Cooler | 1 | 32-5346170 | |||||
| 27 | 54-180766 | CLAMP, Worm Gear | 4 | ||||||
| 28 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 29 | 32-475166 | HOSE ASSEMBLY, (30.00 Inches) | 2 | ||||||
| 30 | 849115T01 | COOLER, Oil, Transmission And Power Steering | 1 | 849115 | |||||
| 31 | 22-47629 | ELBOW, 90 Degree | 2 | ||||||
| 32 | 22-70834 | CONNECTOR, (.375-18) Straight - Brass | 1 | ||||||
| 33 | 32-896998 | HOSE, Molded, Cooler To Flywheel Housing | 1 | 32-64346 | |||||
| 34 | 10-67450 | SCREW, (.312-18 x 2.250) | 2 | 5 | |||||
| 35 | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 2 | 2,5 | |||||
| 36 | 8141531 | ADAPTOR, Oil Filter | 1 | 5 | |||||
| 37 | 25-32507 | O-RING, (3.359 x .139) | 1 | 2,5 | |||||
| 38 | 25-26855 | 676-9-76541 | O-RING, (1.609 x .139) | 1 | 2,5 | ||||
| - | 27-840277A1 | GASKET/SEAL SET, Engine Overhaul | 1 | This Part is No Longer Available |
