900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Intake Manifold And Front Cover

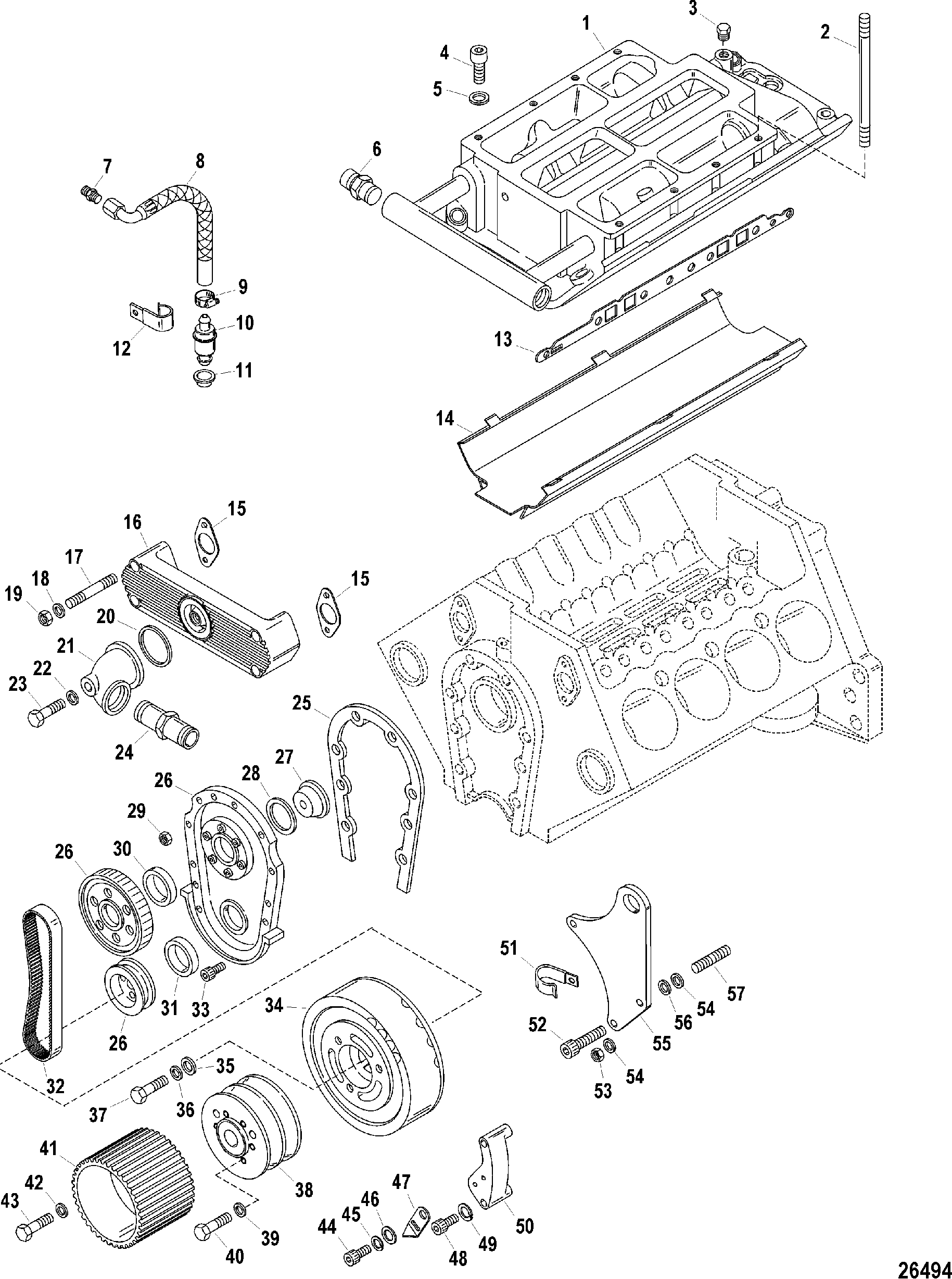

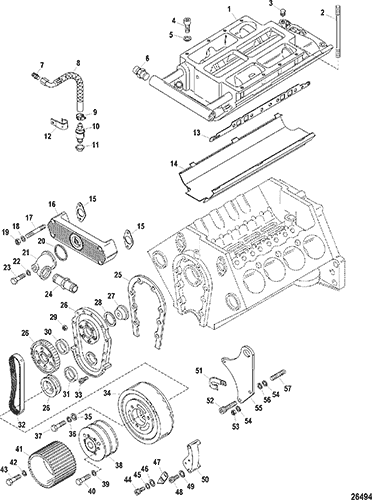

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849100002         MANIFOLD, Intake 1 8491001 5
2 16-848788         STUD, (.440-14/.440-20 x 7.380) 2   This Part is No Longer Available
2 16-941389         STUD, (.440-14/.440-20 x 7.00) 6
3 22-32803         PLUG, Pipe (.375-18) Brass 2   5
4 10-817124         SCREW, (.375-16 x 1.500), Stainless Steel - 316 10   5
4 10-843504         SCREW, (.380-16 x 1.500) Stainless Steel, - 18-8 2   5
5 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 12   5
6 22-84771916         FITTING, Straight 2   This Part is No Longer Available
7 22-823195         ADAPTOR, Straight 1   This Part is No Longer Available
8 32-823229A6         HOSE ASSEMBLY, PCV (22.00 Inches) 1   This Part is No Longer Available
9 54-815504104         CLAMP, Worm Gear 1
10 848578         VALVE ASSEMBLY, Crankcase Vent 1
11 25-811553         GROMMET 1   2
12 54-47483         J CLIP 1
13 27-98086A1         GASKET SET, Intake 1   2,5
14 8M0021503         SHIELD, Oil Intake 1 8160732 This Part is No Longer Available 5
15 27-49110         GASKET, Circulating Water Pump Mount 2   2
16 841419         MANIFOLD, Water Inlet 1   This Part is No Longer Available
17 16-8475321         STUD, (.375-16/.375-24 x 5.500) 4
18 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 4
19 11-82671013         NUT, (.375-24) 4 11-34932
20 27-54416         GASKET, Cover 1   2
21 54377         COVER, Water Inlet 1
22 12-33181         WASHER, (.375 x .812 x .062) Copper 1   2
23 10-849397         SCREW, (.375-16 x 3.250) Stainless Steel 1
24 22-84772015         FITTING, Straight 1
25 27-54529   676-9-61601 700-30440   GASKET, Timing Cover 1   2,5
26 822922A1         DRIVE ASSEMBLY, Timing Belt 1   5
27 12-847746         THRUST WASHER, Outer 1
28 12-822934         THRUST WASHER, Inner 1
29 11-823103         NUT, Special - Upper Seal Cover 6
30 26-822933         SEAL, Upper 1   2
31 26-822932         SEAL, Lower 1   2
32 822733         BELT, Timing 1
33 10-92160         SCREW, (.250-20 x .750) Stainless Steel 8   5
34 96479T05         DAMPER 1 964795 5
35 12-818780         WASHER, (.515 x 1.970 x .275) Black Oxide 1   5
36 12-816258         WASHER, (.500 x .875 x .120) Special 1   5
37 10-818734         SCREW, (.500-20 x 4.00) 1   5
38 414503         PULLEY, V Belt 1   5
39 12-47393         WASHER 3   5
40 10-94207         SCREW, (.375-16 x 2.00) 3   5
41 81871752         PULLEY, Supercharger Belt 1   This Part is No Longer Available 5
42 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 6   5
43 10-815687         SCREW, (.375-16 x 1.250) Stainless Steel 6   5
44 10-90188         SCREW, (#10-24 x .500) Stainless Steel 2   5
45 13-26996         LOCKWASHER, (#10) Stainless Steel 2   5
46 12-30164         WASHER, (.192 x .375 x .0312) Stainless Steel 2   5
47 847815         POINTER, Timing 1   5
48 10-822956         SCREW, (.250-20 x 1.870) 2   5
49 13-26992         LOCKWASHER, (.250) Stainless Steel 2   5
50 847814         BODY, Timing Pointer 1   5
51 54-54178         CLAMP, Wire To Front Lift Eye 2   5
52 10-358701         SCREW, (.375-16 x 2.00), Electrical Component Mounting 1
53 11-82671013         NUT, (.375-24) 5 11-34932
54 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 10
55 818706         LIFTING EYE 2   5
56 12-34931         WASHER, (.406 x .734 x .063) Stainless Steel, - Use As Shim 6
57 16-818824         STUD, (.375-16/.375-24 x 1.590) 1   Rear 5
57 16-818825         STUD, (.375-16/.375-24 x 2.00) 1   Rear 5
57 16-818824         STUD, (.375-16/.375-24 x 1.590) 3   Front 5
- 27-840277A1         GASKET/SEAL SET, Engine Overhaul 1   This Part is No Longer Available
