420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Alternator (Mando AR-150)

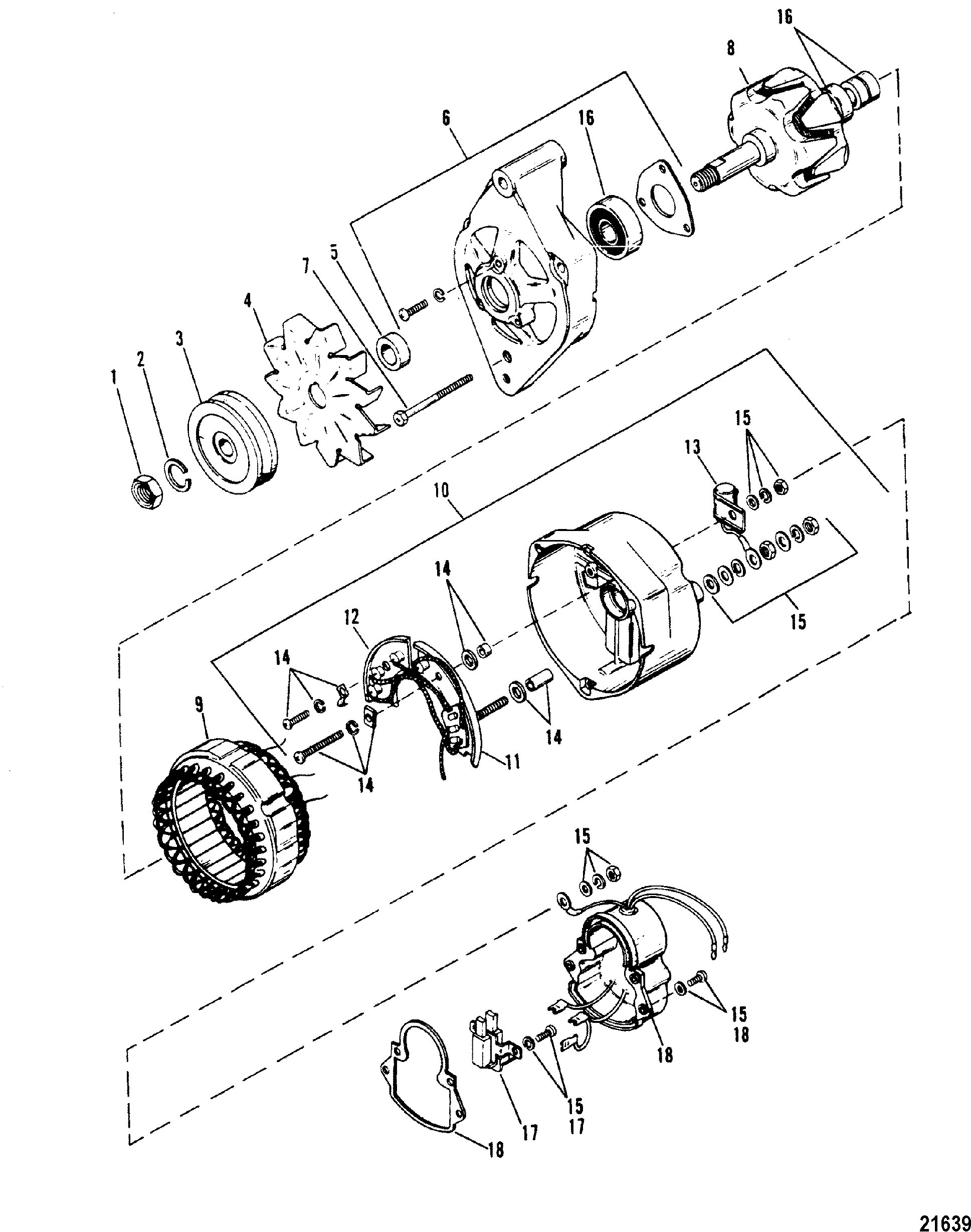

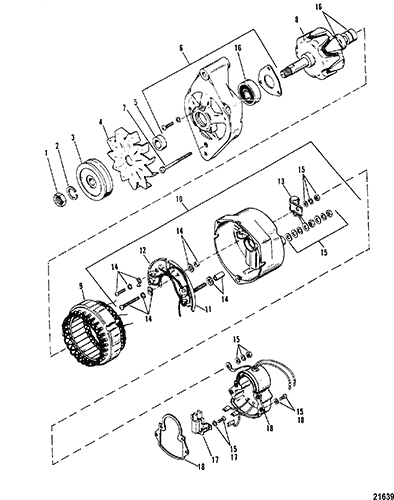

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| - | 817119A4 | 620-3186M | 676-9-19101 | ALTERNATOR ASSEMBLY (Mando AR-150) | 1 | 92497A3 | |||
| 1 | 11-809136 | NUT | 1 | 11-42768 | |||||
| 2 | 13-42769 | LOCKWASHER | 1 | ||||||
| 3 | 809134 | PULLEY | 1 | 42770 | |||||
| 4 | 42771 | FAN | 1 | This Part is No Longer Available | |||||
| 5 | 23-42772 | SPACER | 1 | This Part is No Longer Available | |||||
| 6 | 42774 | BRACKET | 1 | This Part is No Longer Available | |||||
| 7 | 10-42773 | THRU BOLT | 3 | This Part is No Longer Available | |||||
| 8 | 42775 | ROTOR, Includes Bearings | 1 | This Part is No Longer Available | |||||
| 9 | 42776 | STATOR | 1 | This Part is No Longer Available | |||||
| 10 | 42777 | BRACKET | 1 | This Part is No Longer Available | |||||
| 11 | 42778 | HEAT SINK | 1 | This Part is No Longer Available | |||||
| 12 | 42779 | HEAT SINK | 1 | This Part is No Longer Available | |||||
| 13 | 42780 | CONDENSER ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 14 | 42783 | HARDWARE KIT, Internal | 1 | This Part is No Longer Available | |||||
| 15 | 42782 | HARDWARE KIT, External | 1 | This Part is No Longer Available | |||||
| 16 | 42781 | BEARING KIT | 1 | This Part is No Longer Available | |||||
| 17 | 42785 | HOLDER KIT, Includes Springs And Brushes | 1 | ||||||
| 18 | 42785 | REGULATOR KIT | 1 | No longer made, limited availability |
