420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Driveshaft And Tailstock

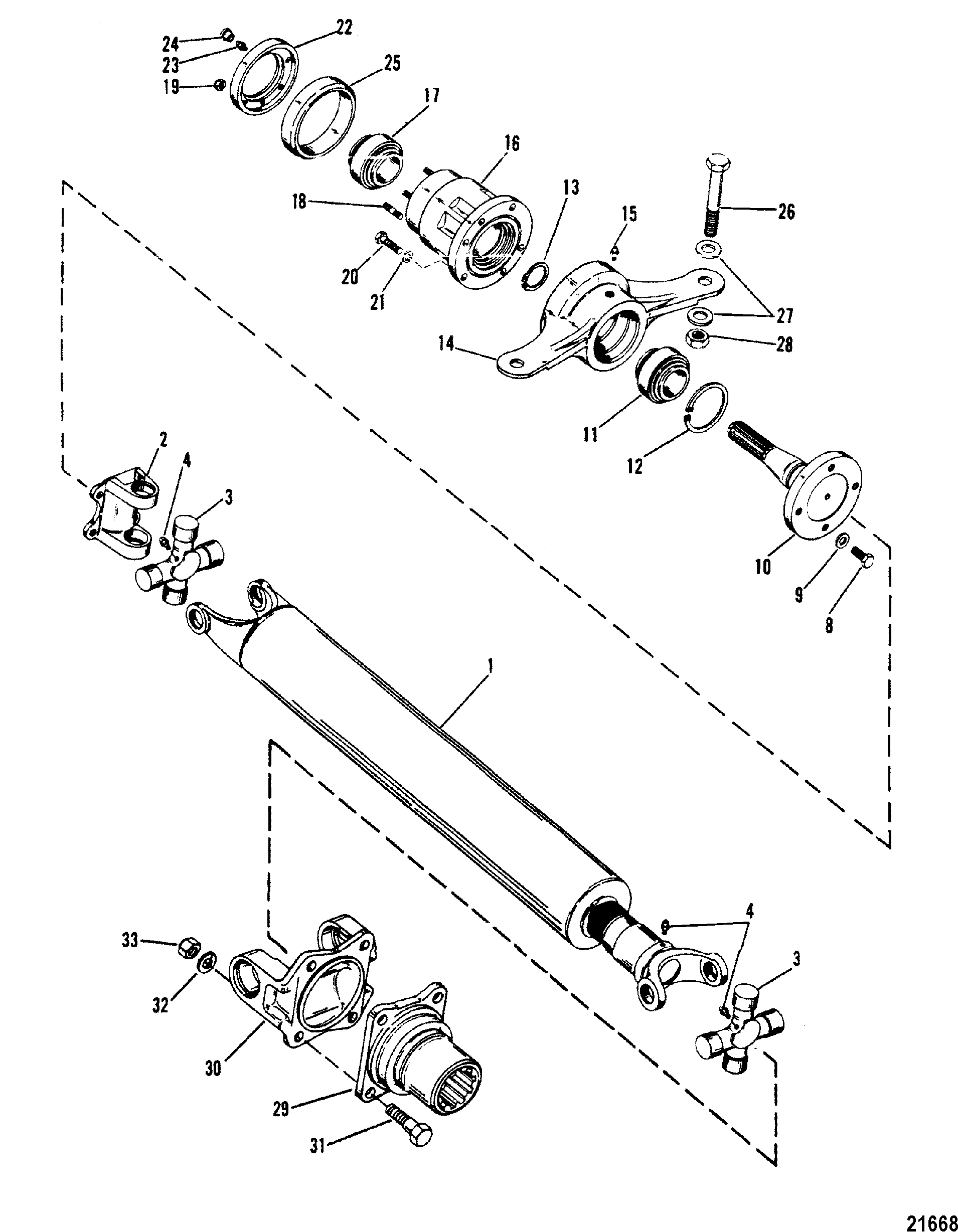

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 45-86978A3         DRIVESHAFT ASSEMBLY, (39.940 Inches) 1 45-86978A1
2 61218         FLANGE, Driveshaft 1

3 61221T         CROSS AND BEARING, With Clips 2 61221
4 22-74036         FITTING, Grease 2

8 10-92154         SCREW, (.437-20 x 1.00) 4   This Part is No Longer Available
9 12-45176         WASHER, (.453 x .812 x .105) Stainless Steel 4

10 68488         SHAFT 1   This Part is No Longer Available
11 879194A03         BEARING, Ball 1 30-62780A1
12 53-68487         RING, Snap 1   This Part is No Longer Available
13 53-68486         RING, Snap 1   This Part is No Longer Available
14 68485A2         HOUSING ASSEMBLY, Tailstock 1   This Part is No Longer Available
15 22-74036         FITTING, Grease 1

16 62739A2         HOUSING ASSEMBLY, Output 1   This Part is No Longer Available
17 879194A03         BEARING, Ball 1 30-62780A1
18 16-32027         STUD 6   This Part is No Longer Available
19 11-24652         NUT, (.250-28) 6

20 10-74824         SCREW, (.312-18 x 1.250) 6

21 13-39107     700-21496   LOCKWASHER, (.312) 6

22 65989         RETAINER 1   This Part is No Longer Available
23 22-74036         FITTING, Grease 1

24 19-77633Q         LUBRICAP 2 19-77633
25 62734         MOUNT 1

26 10-67630         SCREW, (.625-14 x 4.00) 2   This Part is No Longer Available
27 12-36258         WASHER 4   This Part is No Longer Available
28 11-52901         NUT, (.625-18) 2

29 96276T4         YOKE ASSEMBLY 1 96276A2
30 61218         FLANGE, Driveshaft 1

31 10-68743         SCREW, (.437-20 x 1.250) 4   This Part is No Longer Available
32 13-47659         LOCKWASHER, (.437) 4

33 11-22024         NUT, (.437-14) 4
