420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Transmission And Related Parts

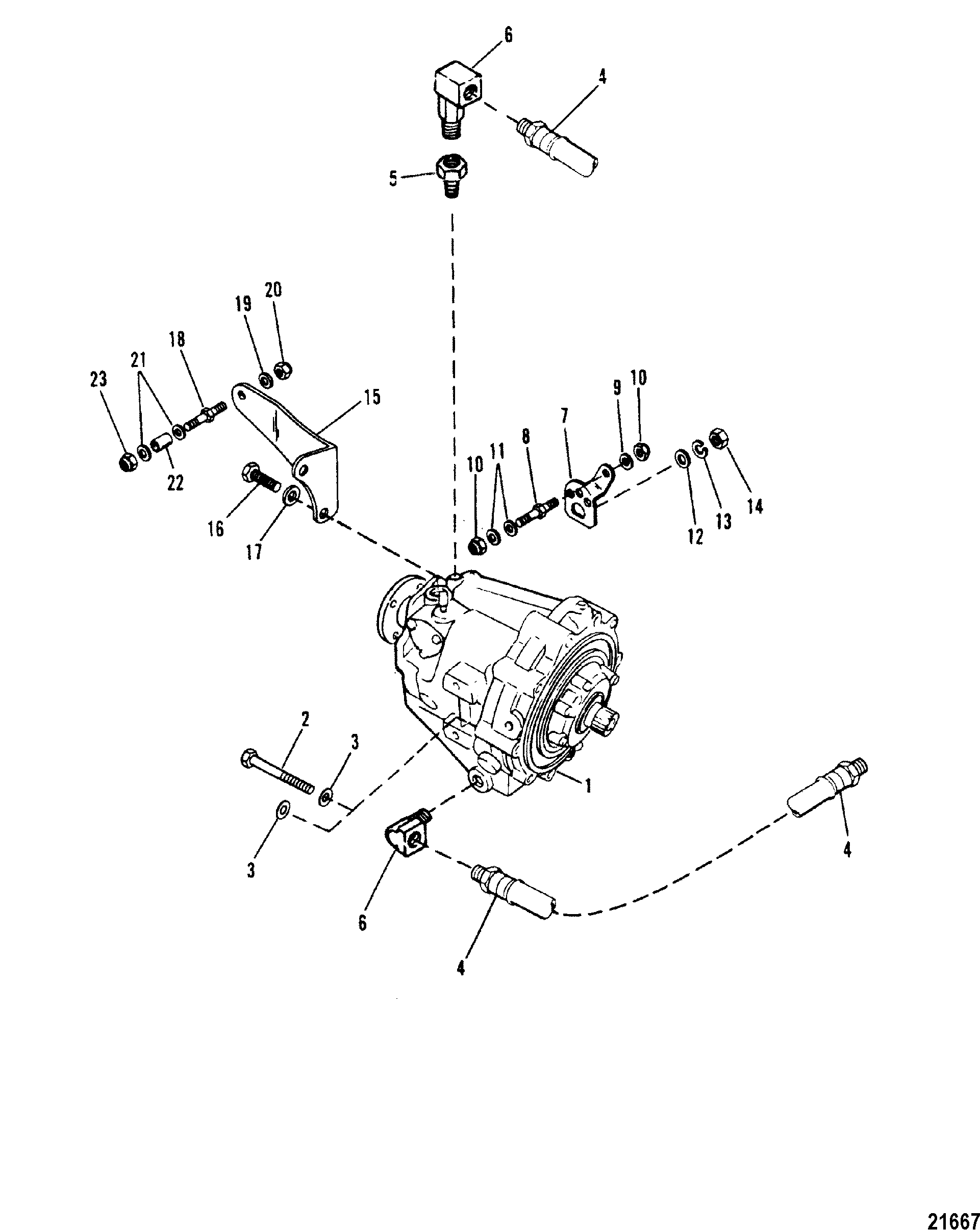

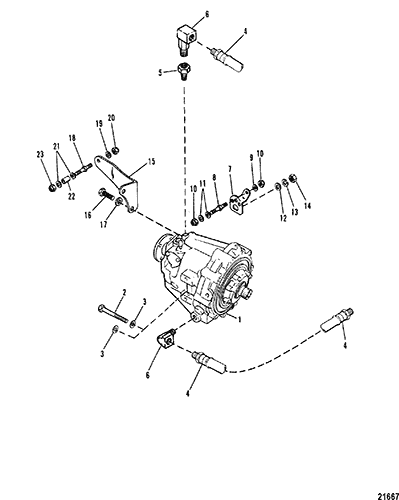

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 47810A19 | TRANSMISSION, Direct Drive - Left Hand | 1 | ||||||
| 2 | 10-60179 | SCREW, (.437-14 x 3.500) | 6 | ||||||
| 3 | 13-32993 | LOCKWASHER, (.437) | 6 | ||||||
| 4 | 32-475166 | HOSE ASSEMBLY, (30.00 Inches) | 2 | ||||||
| 5 | 22-88517 | FITTING, Reducing | 1 | ||||||
| 6 | 22-47629 | ELBOW, 90 Degree | 2 | ||||||
| 7 | 12128 | LEVER, Transmission Shift | 1 | ||||||
| 8 | 16-63335 | STUD, (.250-28 x 2.00) | 1 | This Part is No Longer Available | |||||
| 9 | 12-39143 | WASHER, (.253 x .625 x .0937) | 1 | ||||||
| 10 | 11-8267089 | NUT, (.250-28) | 2 | 11-20361 | |||||
| 11 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | |||||
| 12 | 12-20722 | WASHER, (.328 x .625 x .060) | 1 | This Part is No Longer Available | |||||
| 13 | 13-26993 | LOCKWASHER, (.312) | 1 | ||||||
| 14 | 11-22053 | NUT, (.312-24) | 1 | ||||||
| 15 | 41603 | BRACKET | 1 | This Part is No Longer Available | |||||
| 16 | 10-34350 | SCREW, (.437-14 x 1.250) | 2 | ||||||
| 17 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 18 | 16-63335 | STUD, (.250-28 x 2.00) | 1 | This Part is No Longer Available | |||||
| 19 | 12-39143 | WASHER, (.253 x .625 x .0937) | 1 | ||||||
| 20 | 11-8267089 | NUT, (.250-28) | 1 | 11-20361 | |||||
| 21 | 12-69056 | WASHER, (.255 x .625 x .0312) | 2 | 12-21631 | |||||
| 22 | 23-31866 | SPACER, (.256 x .313 x .625) | 1 | ||||||
| 23 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 |
