420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Electrical Components (0A398941 Thru 0D763854)

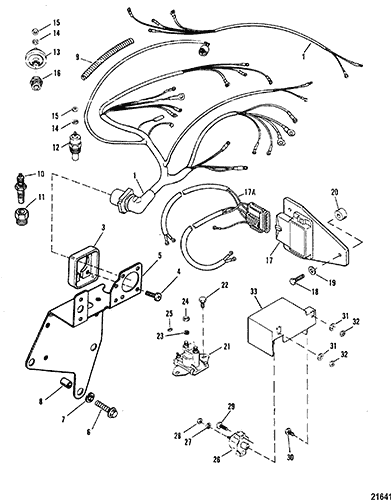

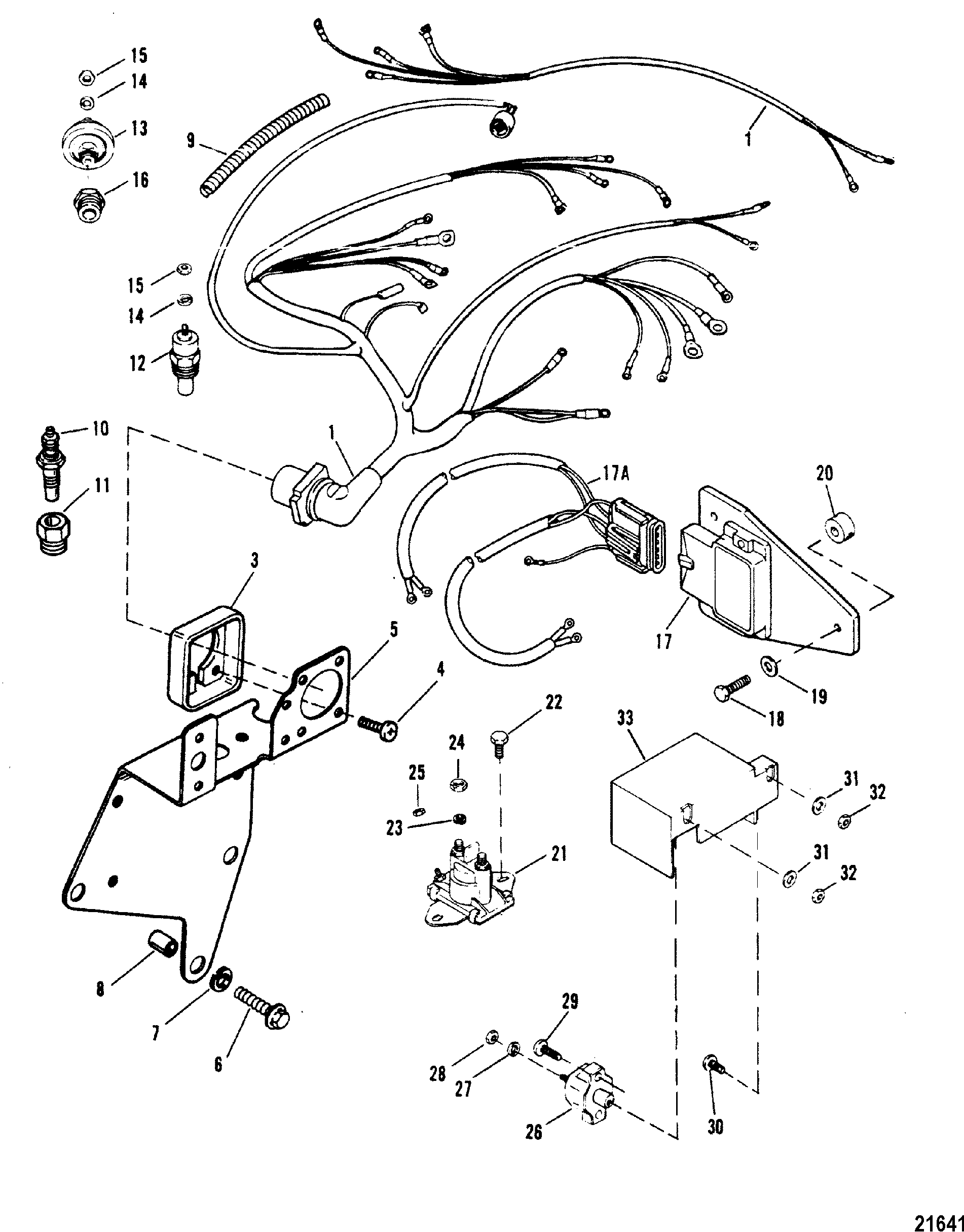

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 84-14338T5 | HARNESS ASSEMBLY | 1 | 84-14338A5 | SN# 0A398941 THRU 0D763854 | ||||
| 3 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 4 | 10-15001 | SCREW, (#8-16 x .875), For Plastic Style Plate | 4 | ||||||
| 4 | 10-34696 | SCREW, (#8-32 x .750), For Metal Style Plate | 4 | ||||||
| 5 | 14037 | BRACKET | 1 | ||||||
| 6 | 10-37612 | SCREW, (.375-16 x 1.250) | 2 | ||||||
| 7 | 13-35048 | LOCKWASHER, (.375) | 3 | ||||||
| 8 | 23-90523 | SPACER, (.420 x .750 x .440) Cad Plate | 3 | ||||||
| 9 | 32-77690 | LOOM, (12.00 Inches x .250 Spiral Cut) (.250) | 1 | ||||||
| 10 | 13611 | SENDER ASSEMBLY, Oil Temperature | 1 | ||||||
| 11 | 22-36492 | BUSHING, Reducer | 1 | ||||||
| 12 | 806490T | SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | |||||
| 12 | 49734 | SENDER ASSEMBLY, Water Temperature - Dual Models | OPT | 49734A1 | |||||
| 13 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 815425 | |||||
| 13 | 37293T | SENDER ASSEMBLY, Oil Pressure - Dual Models | OPT | 37293 | |||||
| 14 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 15 | 11-45076 | NUT, (#10-32) Brass | 2 | ||||||
| 16 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | ||||||
| 17 | 17316A1 | MODULE ASSEMBLY, Ignition | 1 | This Part is No Longer Available | |||||
| 17A | 84-15275A1 | HARNESS ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 18 | 10-76630 | SCREW, (.250-20 x 1.00) | 3 | ||||||
| 19 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 3 | ||||||
| 20 | 23-92152T | SPACER | 3 | 23-92152 | |||||
| 21 | 89-96054T | SOLENOID ASSEMBLY, Starter | 1 | 89-96054 | |||||
| 22 | 10-98253 | SCREW, (.250-20 x .500) | 2 | ||||||
| 23 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 24 | 11-94330 | NUT, (.250-20) Brass | 2 | ||||||
| 25 | 11-26419 | NUT, (#8-32) Brass | 2 | ||||||
| 26 | 88-11178A01 | BREAKER, Circuit - 50 Ampere, 50 Ampere | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 27 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 28 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 29 | 10-45862 | SCREW, (#10-32 x .875) | 2 | ||||||
| 30 | 10-71405 | SCREW, (#10-32 x .440) | 1 | This Part is No Longer Available | |||||
| 31 | 12-56681 | WASHER, (.203 x .500 x .032) | 2 | ||||||
| 32 | 11-61356 | NUT, (#10-32) Reduced Hex | 2 | ||||||
| 33 | 85-96819T | INSULATOR | 1 |
