420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Alternator (Prestolite 8EM2003KA)

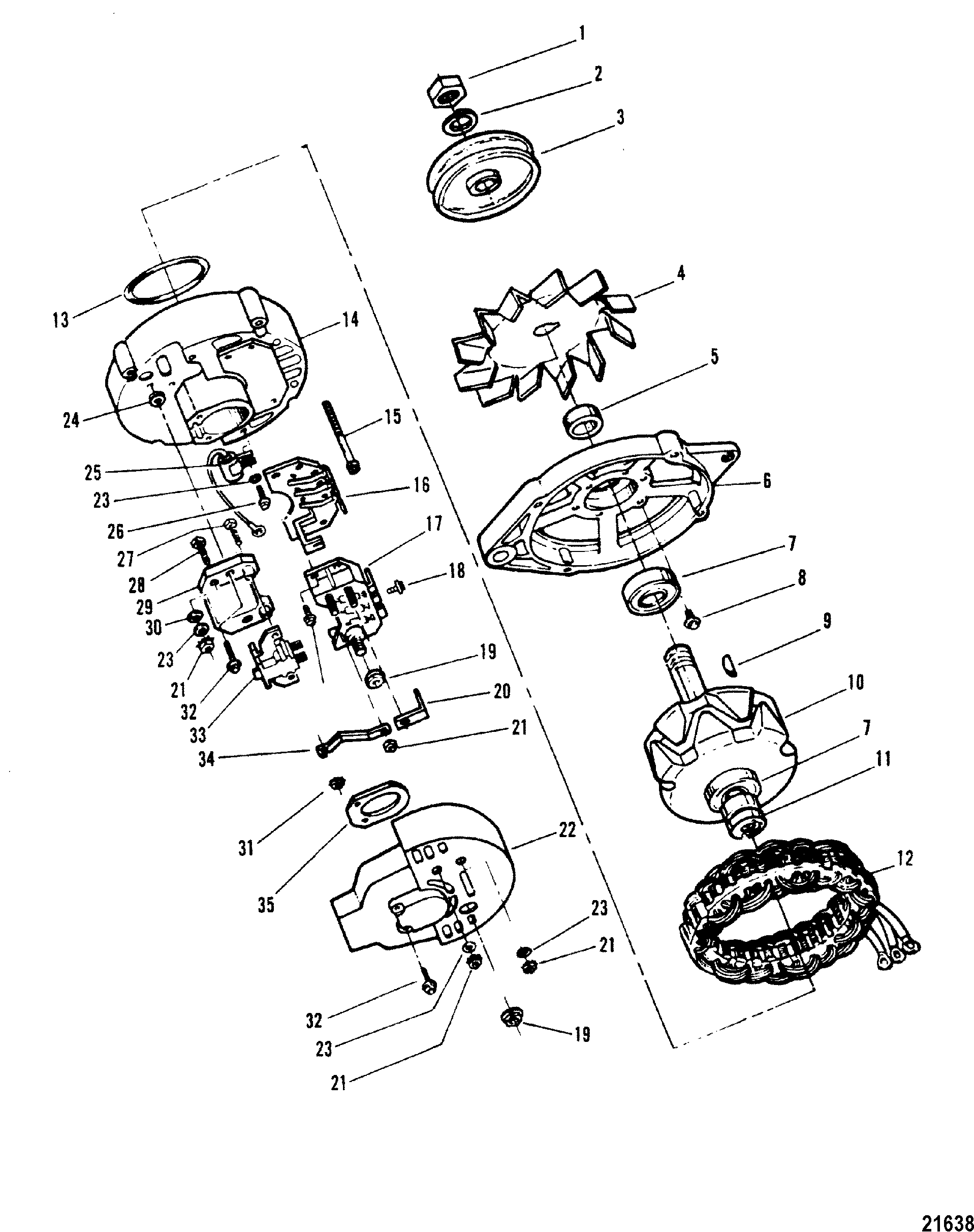

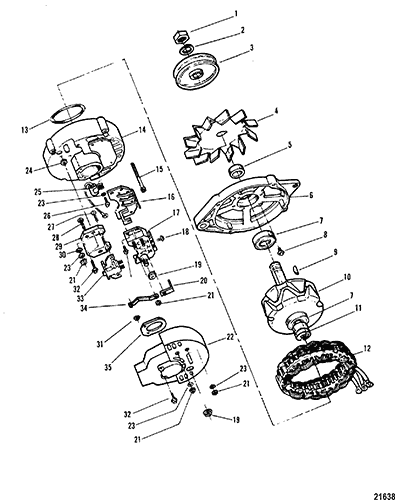

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| - | 817119A4 | 620-3186M | 676-9-19101 | ALTERNATOR ASSEMBLY (Prestolite 8EM2003KA) | 1 | 92497A3 | |||
| 1 | 390-7027 | NUT | 1 | This Part is No Longer Available | |||||
| 2 | 390-7033 | LOCKWASHER | 1 | This Part is No Longer Available | |||||
| 3 | 390-8637 | PULLEY | 1 | This Part is No Longer Available | |||||
| 4 | 390-7004 | FAN | 1 | ||||||
| 5 | 813969 | SPACER | 1 | This Part is No Longer Available | |||||
| 6 | 813961 | HOUSING, Front | 1 | This Part is No Longer Available | |||||
| 7 | 390-7005 | BEARING, Ball | 2 | This Part is No Longer Available | |||||
| 8 | 10-813978A1 | SCREW | 4 | This Part is No Longer Available | |||||
| 9 | 390-7034 | KEY | 1 | This Part is No Longer Available | |||||
| 10 | 813962 | ROTOR | 1 | This Part is No Longer Available | |||||
| 11 | 390-7014 | SLIP RING | 1 | This Part is No Longer Available | |||||
| 12 | 813963 | STATOR | 1 | This Part is No Longer Available | |||||
| 13 | 390-7007 | RETAINER | 1 | This Part is No Longer Available | |||||
| 14 | 813964 | HOUSING, Rear | 1 | This Part is No Longer Available | |||||
| 15 | 10-813975 | THRU BOLT | 4 | This Part is No Longer Available | |||||
| 16 | 813966 | DIODE BRIDGE | 1 | This Part is No Longer Available | |||||
| 17 | 813965 | DIODE FIELD | 1 | This Part is No Longer Available | |||||
| 18 | 10-813981 | SCREW | 3 | This Part is No Longer Available | |||||
| 19 | 11-813976 | NUT | 2 | This Part is No Longer Available | |||||
| 20 | 813973 | STRAP | 1 | This Part is No Longer Available | |||||
| 21 | 390-7021 | NUT | 5 | This Part is No Longer Available | |||||
| 22 | 813971 | COVER | 1 | This Part is No Longer Available | |||||
| 23 | 12-813984 | WASHER | 5 | This Part is No Longer Available | |||||
| 24 | 390-7022 | WASHER | 2 | This Part is No Longer Available | |||||
| 25 | 813972 | CAPACITOR | 1 | This Part is No Longer Available | |||||
| 26 | 10-813982 | SCREW | 1 | This Part is No Longer Available | |||||
| 27 | 10-813979 | SCREW | 2 | This Part is No Longer Available | |||||
| 28 | 10-813983 | SCREW | 2 | This Part is No Longer Available | |||||
| 29 | 813974 | REGULATOR, Voltage | 1 | This Part is No Longer Available | |||||
| 30 | 12-813985 | WASHER | 2 | This Part is No Longer Available | |||||
| 31 | 11-813977 | NUT | 2 | This Part is No Longer Available | |||||
| 32 | 10-813980 | SCREW | 8 | This Part is No Longer Available | |||||
| 33 | 813968 | BRUSH ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 34 | 813967 | STRAP (D+) | 1 | This Part is No Longer Available | |||||
| 35 | 27-813970 | GASKET, Felt | 1 | This Part is No Longer Available |
