420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Starter And Alternator Mounting

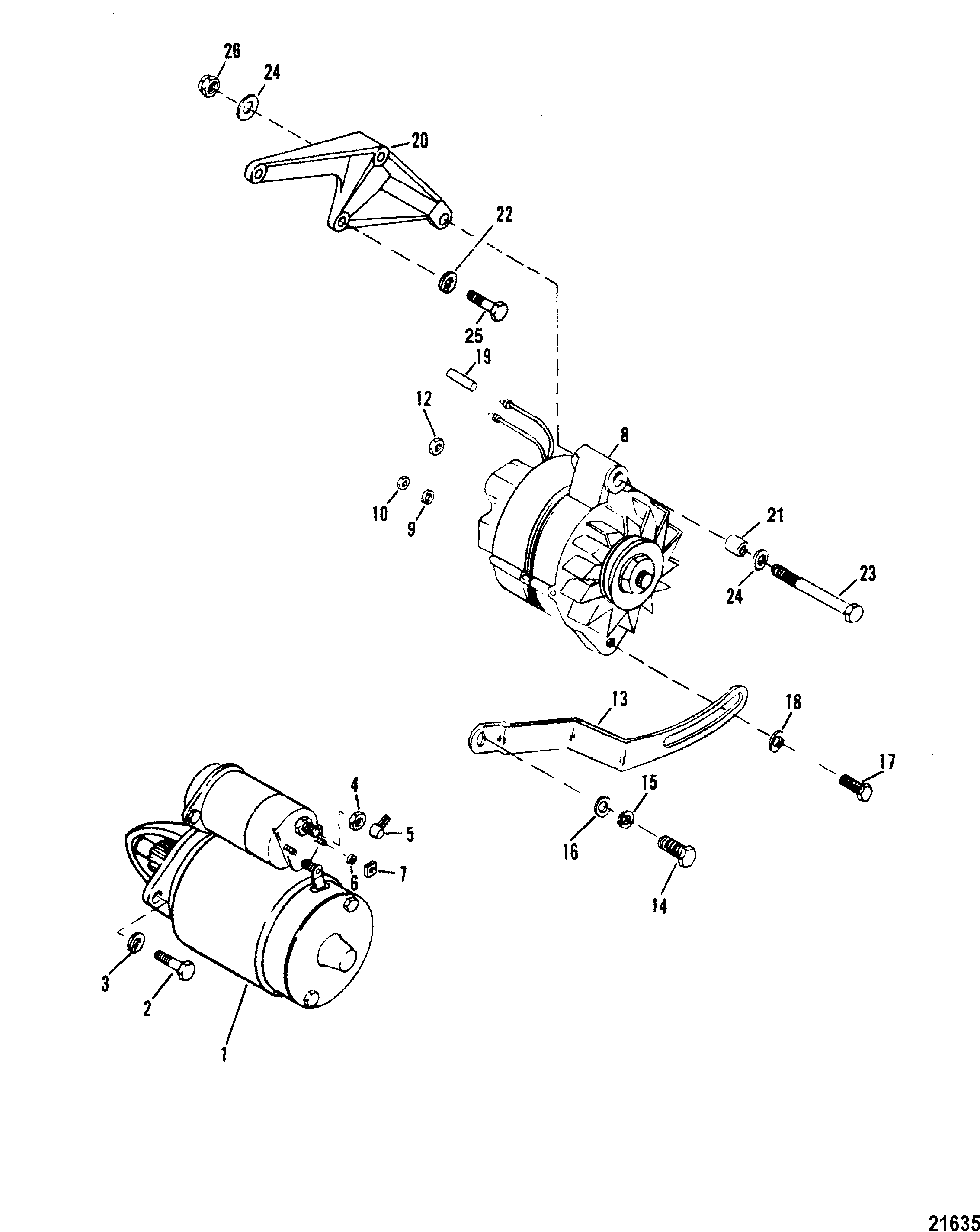

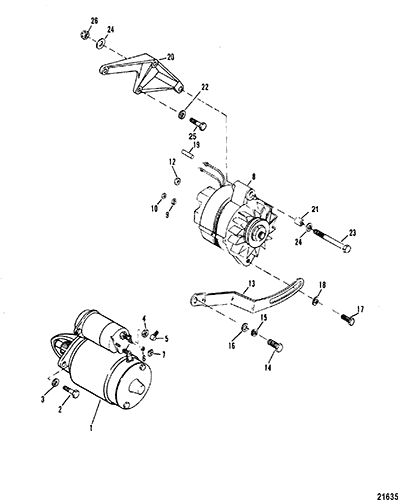

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 50-808011A05 | STARTER MOTOR ASSEMBLY | 1 | 50-17251A3 | Components Of Gasket Sets [27- 13218A 1] / [27-808730A92] | ||||
| 2 | 10-47461 | SCREW, (.437-14 x 1.00) | 2 | Component Of Gasket Set [27- 13218A 1] | |||||
| 3 | 13-32993 | LOCKWASHER, (.437) | 2 | Component Of Gasket Set [27-808730A92] | |||||
| 4 | 11-86226 | NUT, (.375-16) | 1 | ||||||
| 4 | 11-4013610 | NUT, (M10) (M10) | 1 | 11-400266 | |||||
| 5 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | |||||
| 6 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 1 | ||||||
| 6 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 7 | 11-26419 | NUT, (#8-32) Brass | 1 | ||||||
| 7 | 11-400211 | NUT, (M5) Stainless Steel | 1 | ||||||
| 8 | 817119A4 | 620-3186M | 676-9-19101 | ALTERNATOR | 1 | ||||
| 9 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 10 | 11-79989 | NUT, (#10-24) Stainless Steel | 1 | ||||||
| 12 | 11-20890 | NUT, (.250-20) | 1 | ||||||
| 13 | 85013T | BRACE, Alternator Adjusting | 1 | ||||||
| 14 | 10-47461 | SCREW, (.437-14 x 1.00) | 1 | ||||||
| 15 | 13-32993 | LOCKWASHER, (.437) | 1 | ||||||
| 16 | 12-27025 | WASHER | 1 | ||||||
| 17 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 1 | ||||||
| 18 | 12-26168 | WASHER | 1 | ||||||
| 19 | 5790811 | SLEEVE, (10.00 Inches Bulk), Cut As Required | 1 | ||||||
| 20 | 806394A1 | BRACKET | 1 | ||||||
| 20 | 815251T1 | BRACKET ASSEMBLY | 1 | 815251A1 | This Part is No Longer Available Gil Exhaust System With Mando Alternator | ||||
| 21 | 23-33186 | BUSHING | 1 | ||||||
| 22 | 13-35048 | LOCKWASHER, (.375) | 3 | ||||||
| 23 | 10-48308 | SCREW, (.375-24 x 3.750) | 1 | ||||||
| 24 | 12-20553 | WASHER, (.406 x .734 x .063) | 3 | ||||||
| 25 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 | ||||||
| 25 | 10-34353 | SCREW, (.375-16 x 1.00) | 2 | ||||||
| 26 | 11-23161 | NUT, (.375-24) | 1 |
