420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Power Steering Cylinder Assembly

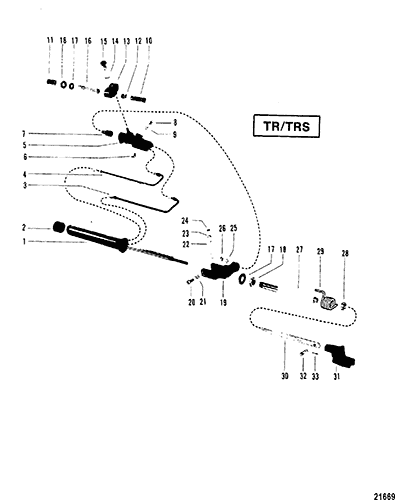

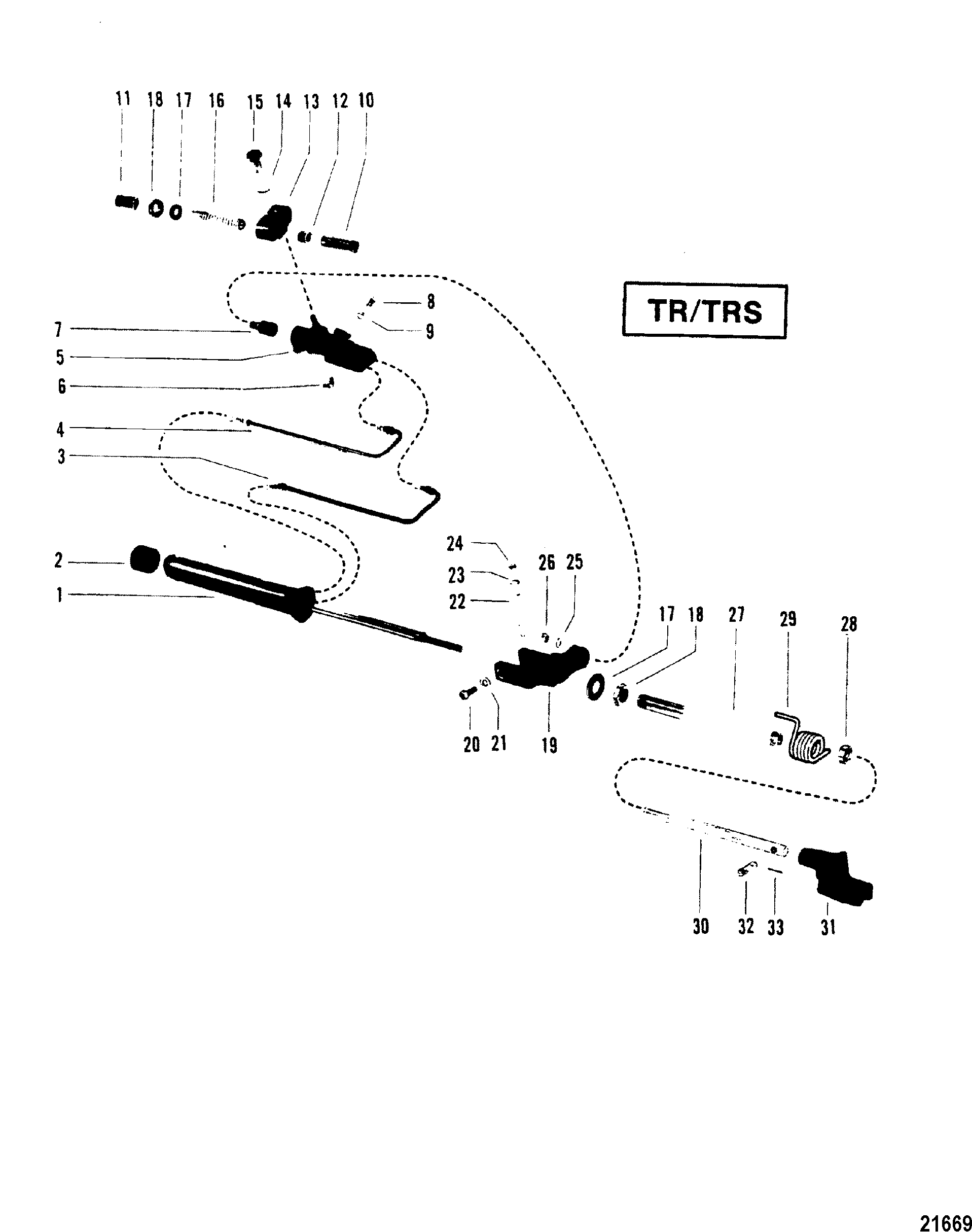

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| - | 55110A1 | CYLINDER ASSEMBLY, Power Steering | 1 | This Part is No Longer Available | |||||
| 1 | 57969A12 | CYLINDER ASSEMBLY, Booster | 1 | This Part is No Longer Available | |||||
| 2 | 26059 | CAP, Booster Cylinder | 1 | This Part is No Longer Available | |||||
| 3 | 32-57633 | TUBE, Extending | 1 | This Part is No Longer Available | |||||
| 4 | 32-57634 | TUBE, Retracting | 1 | This Part is No Longer Available | |||||
| 5 | 816458A1 | VALVE ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 6 | 22-67305 | FITTING, Grease | 1 | No longer made, limited availability | |||||
| 7 | 16-55109T | STUD | 1 | This Part is No Longer Available | |||||
| 8 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 | ||||||
| 9 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 10 | 23-60652 | SLEEVE, Adjusting | 1 | This Part is No Longer Available | |||||
| 11 | 64414 | GUIDE, Cable Tube | 1 | This Part is No Longer Available | |||||
| 12 | 23-60773 | SLEEVE, Cable Tube | 1 | This Part is No Longer Available | |||||
| 13 | 55110T | ADAPTOR, Cable Tube - Dual | 1 | 55110 | This Part is No Longer Available | ||||
| 14 | ORDLOCAL | ORDER PART LOCAL, Lockwasher (.750 Internal) | 1 | ||||||
| 15 | 11-55111 | NUT, Dual Adaptor To Power Steering Valve | 1 | This Part is No Longer Available | |||||
| 16 | 32-55112 | TUBE, Cable Guide | 1 | This Part is No Longer Available | |||||
| 17 | 12-37985 | WASHER | 2 | This Part is No Longer Available | |||||
| 18 | 11-37984 | NUT, (.875-14) | 2 | ||||||
| 19 | 57286 | BRACKET, Mounting | 1 | This Part is No Longer Available | |||||
| 20 | 10-31832 | BOLT, (.500-20 x 1.00) | 2 | ||||||
| 21 | 13-31848 | LOCKWASHER, (.500) | 2 | ||||||
| 22 | 10-57968 | SCREW, (.375-24 x 3.00) | 1 | This Part is No Longer Available | |||||
| 23 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 24 | 11-46335 | NUT, (.375-24) | 1 | ||||||
| 25 | 12-20959 | WASHER | 1 | ||||||
| 26 | 11-898832 | NUT, (.500-20) | 1 | 11-28040 | |||||
| 27 | 57971 | TUBE, Mounting | 1 | This Part is No Longer Available | |||||
| 28 | 11-55983 | NUT, (.875-14) | 1 | This Part is No Longer Available | |||||
| 29 | 24-78498 | SPRING | 1 | This Part is No Longer Available | |||||
| 30 | 57970 | ROD, Extender | 1 | 57970T | This Part is No Longer Available | ||||
| 31 | 87854T | ADAPTOR, Cable End, Right Hand | 2 | This Part is No Longer Available | |||||
| 32 | 17-52798 | PIN, Clevis | 2 | ||||||
| 33 | 18-46950 | COTTER PIN | 2 |
