Your shopping cart is currently empty.
420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)

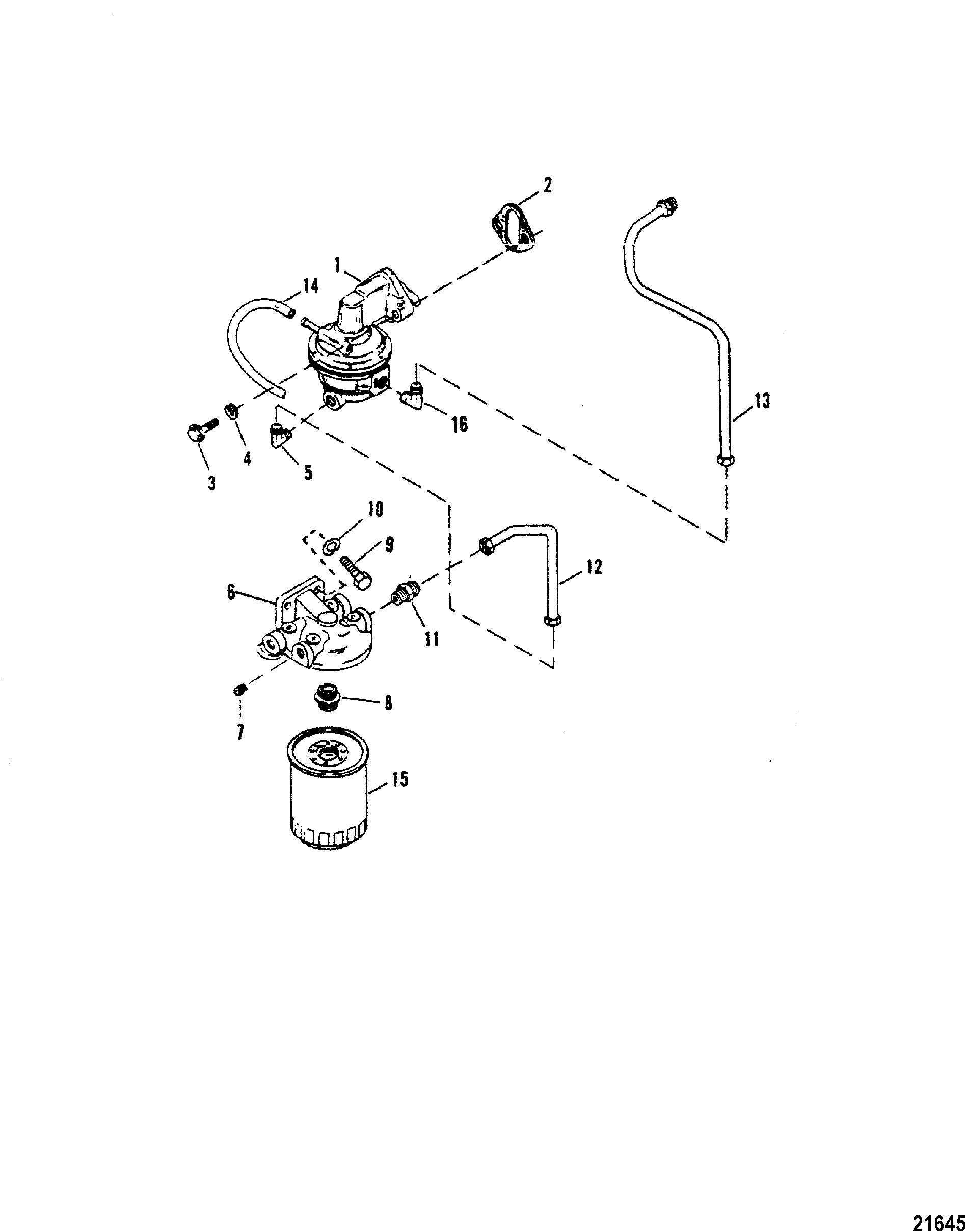

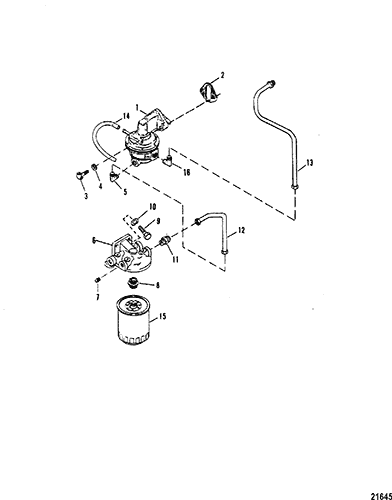

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 861677T | PUMP ASSEMBLY | 1 | 818383T | |||||
| 2 | 27-34213 | GASKET, Fuel Pump | 1 | 3 | |||||
| 3 | 10-34354 | SCREW, (.375-16 x 1.50) | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER, (.375) | 2 | ||||||
| 5 | 22-93385 | FITTING, (90 Degree) | 2 | ||||||
| 6 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | ||||||
| 7 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 3 | ||||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 9 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 2 | ||||||
| 10 | 13-26993 | LOCKWASHER, (.312) | 1 | ||||||
| 11 | 22-33821 | CONNECTOR | 2 | ||||||
| 12 | 32-848602 | LINE, Fuel, Filter To Pump | 1 | 32-847598 | |||||
| 13 | 32-822843 | LINE, Fuel, Fuel Pump To Carburetor | 1 | 32-822842 | This Part is No Longer Available | ||||
| 14 | 32-9337070 | TUBING, (48.00 Inches Bulk), Cut As Required | 1 | This Part is No Longer Available | |||||
| 15 | 35-802893Q01 | FILTER, Fuel | 1 | 35-8052691 | |||||
| 16 | 22-817395 | FITTING, 45 Degree | 1 |
