Your shopping cart is currently empty.
420 GM 454 V8 1987-1989 - Serial 0A398941 Thru 0B622418 - Transmission And Shift Linkage

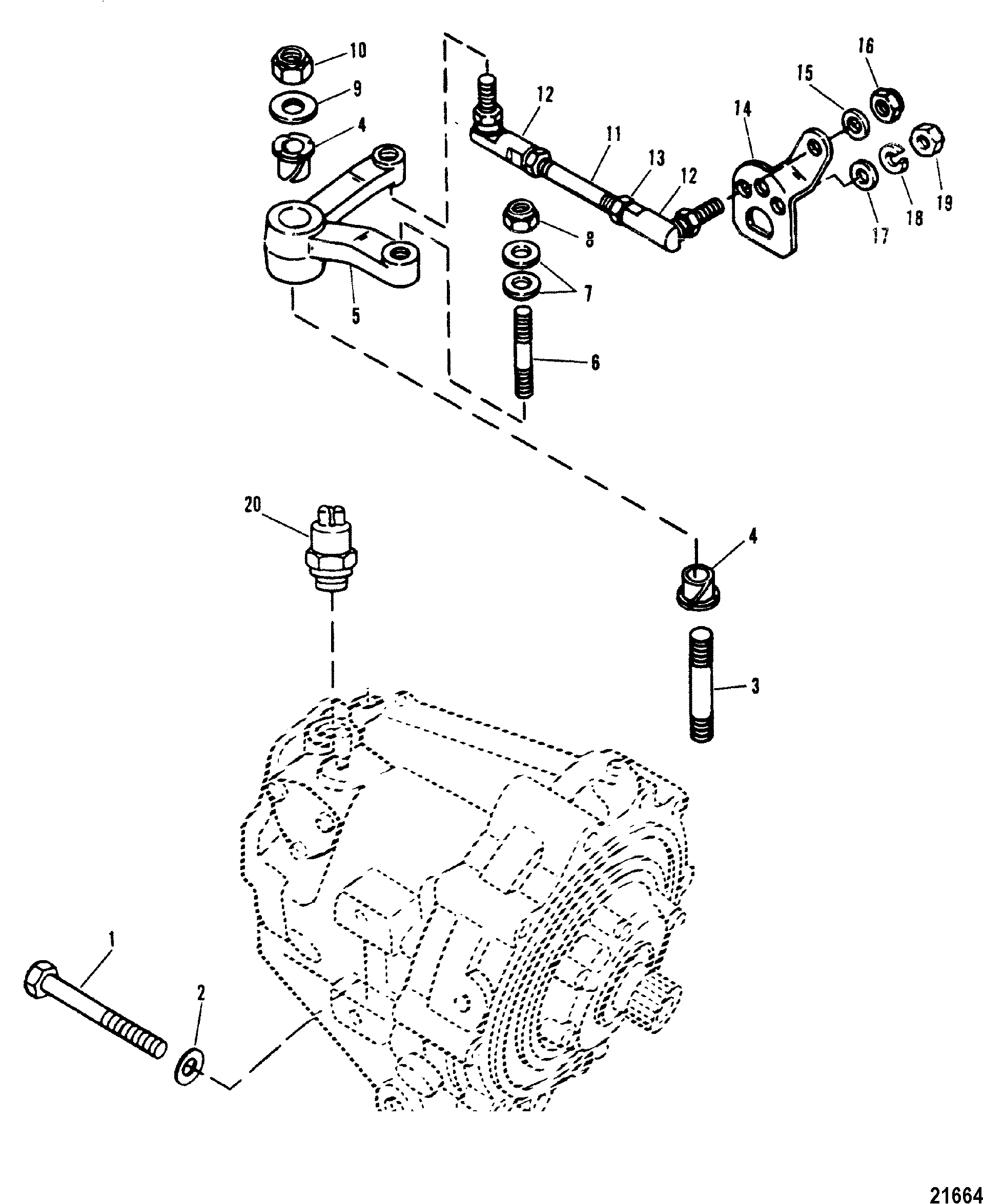

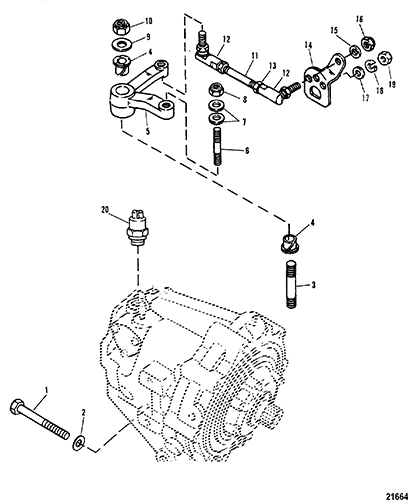

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Alternator (Mando AR-150)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Electrical Components (0A398941 Thru 0D763854)
- Electrical Components (0D763855 Thru 0D937011)
- Exhaust Cover (420)
- Exhaust Manifold - Elbow (420 GIL System)
- Exhaust Manifold - Elbow (425 GIL System)
- Exhaust Manifold - Elbow (Mercruiser System)
- Flywheel Housing
- Fuel Pump And Fuel Filter (0A398941 Thru 0D725499)
- Fuel Pump And Fuel Filter (0D763855 Thru 0D937011)
- Intake Manifold And Front Cover
- Mount Plates (Engine)
- Oil Cooler (0A398941 Thru 0D725499)
- Oil Cooler (0D725500 Thru 0D937011)
- Oil Pan And Oil Pump (0A398941 Thru 0D725499)
- Oil Pan And Oil Pump (0D725500 Thru 0D937011)
- Power Steering Components
- Power Steering Cylinder Assembly
- Seawater Pump Assembly (0A398941 Thru 0D725499)
- Seawater Pump Assembly (0D725500 Thru 0D937011)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing (420)
- Thermostat Housing (425)
- Transmission And Related Parts
- Transmission And Shift Linkage
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 10-60179 | SCREW, (.437-14 x 3.500) | 6 | ||||||
| 2 | 13-32993 | LOCKWASHER, (.437) | 6 | ||||||
| 3 | 16-8M0034438 | STUD, (.375-24/.375-16 x 2.250) | 1 | 16-87163 | |||||
| 4 | 23-26954 | BUSHING | 2 | ||||||
| 5 | 98301A3 | SHIFT CRANK ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 6 | 16-728091 | STUD, (.250-20/.250-28 x 1.620) | 1 | 16-72809 | |||||
| 7 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel | 2 | ||||||
| 8 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 1 | ||||
| 9 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 1 | ||||||
| 10 | 11-82671013 | NUT, (.375-24) | 1 | 11-34932 | |||||
| 11 | 98299A2 | SHIFT ROD ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 12 | 73393 | BALL JOINT | 2 | This Part is No Longer Available | |||||
| 13 | 11-25168 | NUT, (.250-28) | 2 | This Part is No Longer Available | |||||
| 14 | 12128 | LEVER, Transmission Shift | 1 | ||||||
| 15 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel | 1 | |||||
| 16 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 1 | ||||
| 17 | 12-20722 | WASHER, (.328 x .625 x .060) | 1 | This Part is No Longer Available | |||||
| 18 | 13-26993 | LOCKWASHER, (.312) | 1 | ||||||
| 19 | 11-22053 | NUT, (.312-24) | 1 | ||||||
| 20 | 87-88031 | SWITCH ASSEMBLY, Temperature | 1 |
