5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Crankshaft And Flywheel

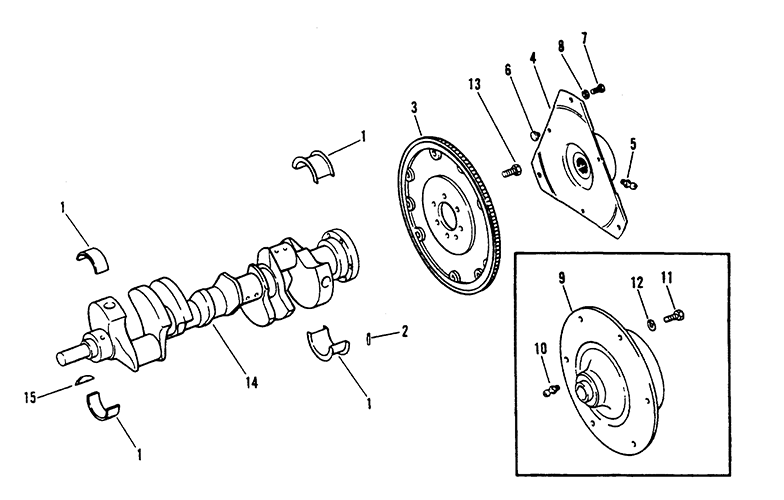

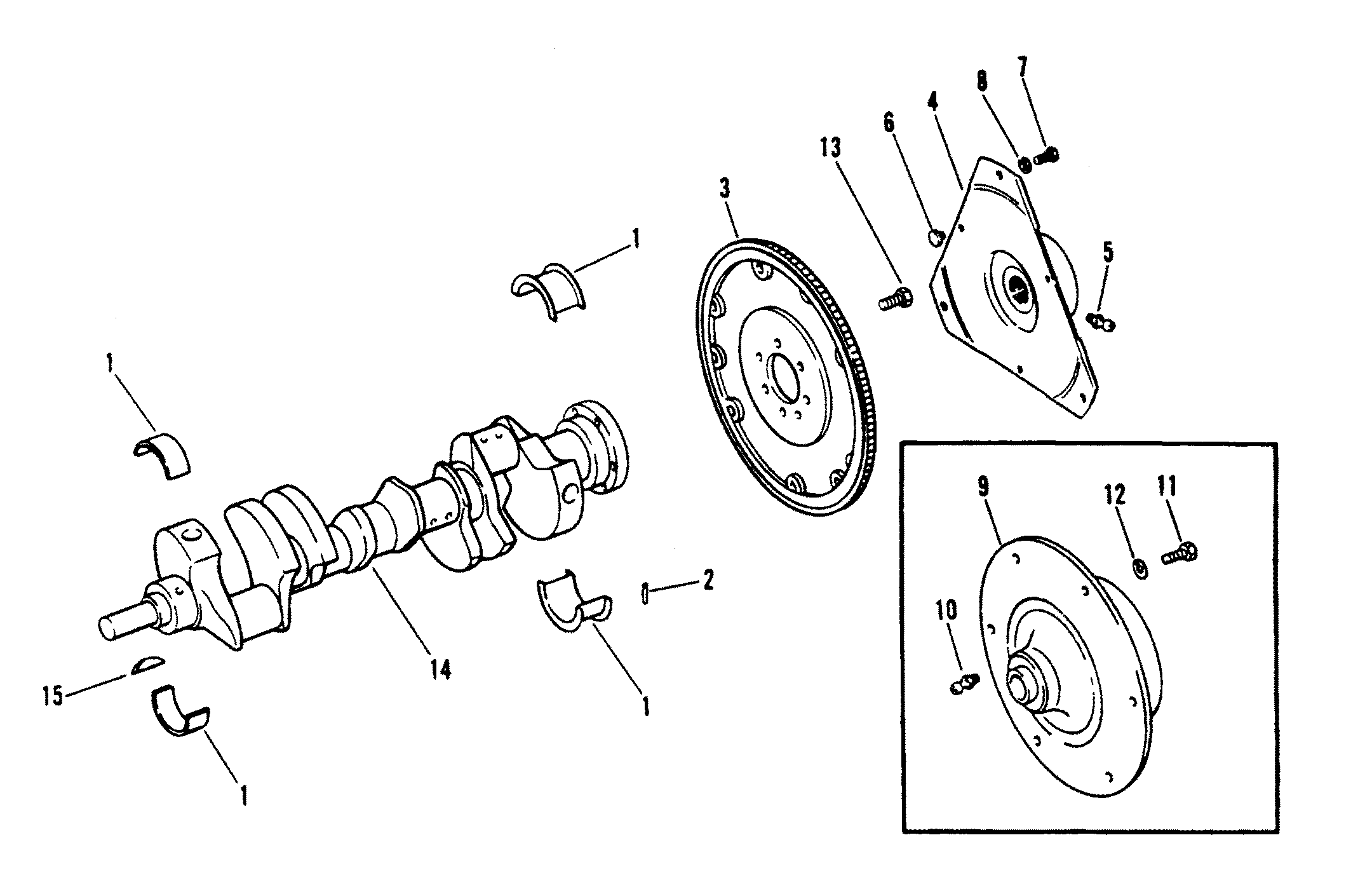

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 23-818465



BEARING SET (STANDARD) 1

1 23-818466



BEARING SET (.001 U.S.) AR

1 23-818467



BEARING SET (.010 U.S.) AR

1 23-818468



BEARING SET (.020 U.S.) AR

2 17-843378



DOWEL PIN (1/4" DIA.) 2 17-35312
3 8M0047213



FLYWHEEL 1 222-9520
4 18643A5
676-9-72507
700-11532

COUPLING 1
ALPHA
5 22-74036



FITTING 1
ALPHA
6 18644



RUBBER BUMPER 3
ALPHA
7 10-14883



SCREW 3
ALPHA
8 12-13510



WASHER 3
ALPHA
9 861523A9
676-9-72503

525-861523A9
COUPLING ASSEMBLY 1 18311A17 BRAVO
10 22-49099



GREASE FITTING 2
BRAVO
11 10-14883



SCREW 6
BRAVO
12 12-20572



WASHER 6
BRAVO
13 10-845757



SCREW 6 10-49845
14 429-9521T



CRANKSHAFT 1 429-9521 This Part is No Longer Available
15 28-34466



KEY 2
