5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Throttle Linkage

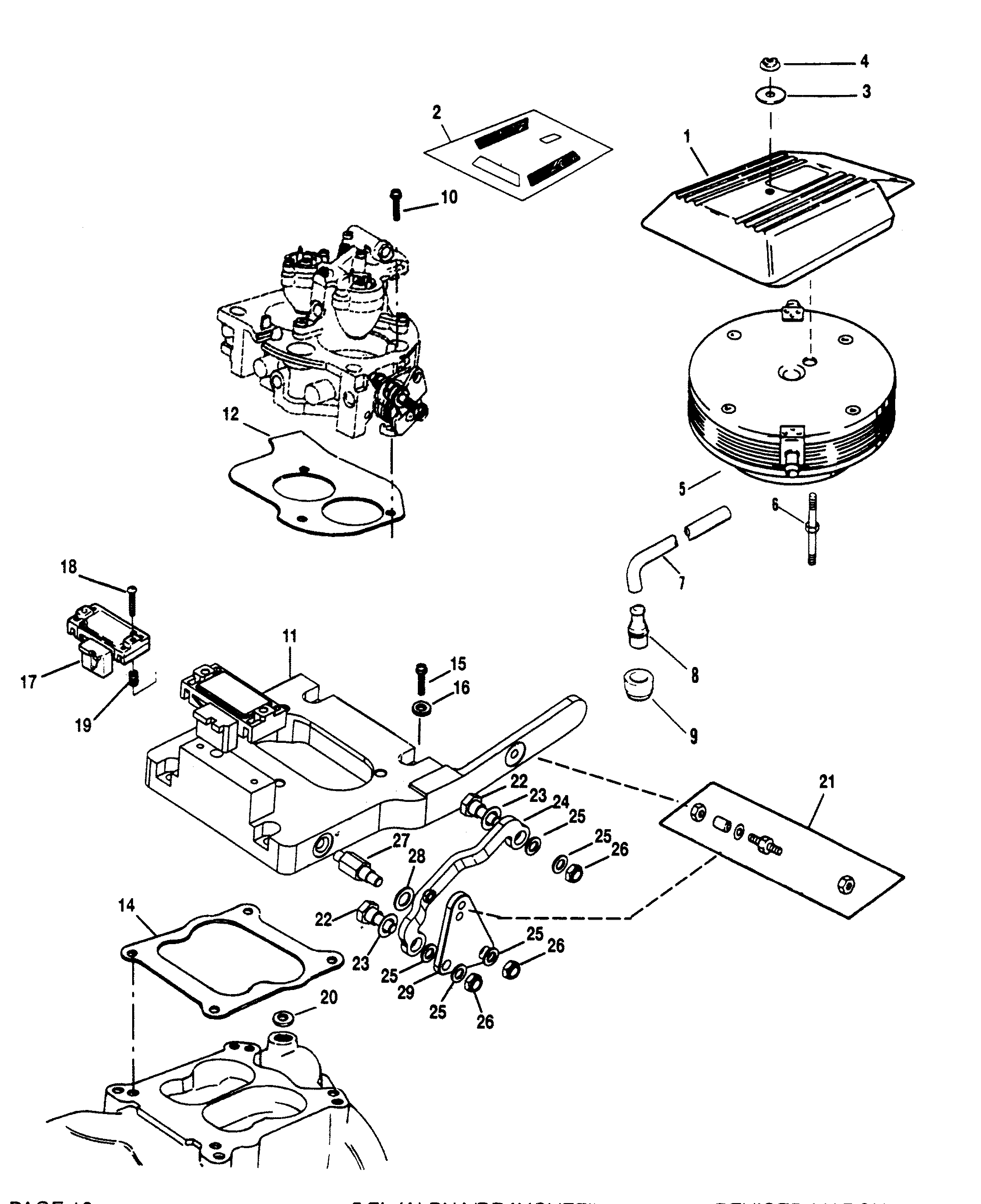

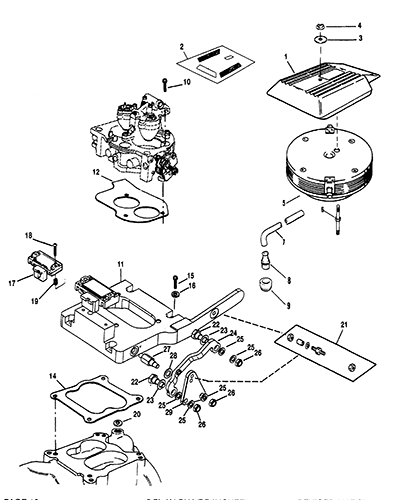

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18484A3 | COVER | 1 | ||||||
| 2 | 37-812776A31 | DECAL SET | 1 | This Part is No Longer Available | |||||
| 3 | 12-86400 | WASHER | 1 | ||||||
| 4 | 11-826709109 | 525-11-826709109 |
NUT | 1 | 11-35045 | ||||
| 5 | 806637A1 | FLAME ARRESTOR | 1 | 806637T | This Part is No Longer Available | ||||
| 6 | 16-806703 | STUD | 1 | ||||||
| 7 | 32-1589424 | HOSE | 2 | 32-1589418 | |||||
| 8 | 97850T | ELBOW (90 DEGREES) | 2 | 97850 | |||||
| 9 | 25-52188 | GROMMET | 2 | ||||||
| 10 | 10-805390 | SCREW | 3 | ||||||
| 11 | 806954A1 | ADAPTOR ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 12 | 27-806640 | GASKET | 1 | 2 | |||||
| 13 | 22-805691 | FITTING | 1 | ||||||
| 14 | 27-524572 | GASKET | 1 | 2 | |||||
| 15 | 10-79436 | SCREW | 4 | ||||||
| 16 | 12-843108 | WASHER | 4 | ||||||
| 17 | 864856A1 | 676-9-33601 |
MAP SENSOR | 1 | 805217A1 | ||||
| 18 | 10-807120 | SCREW | 2 | ||||||
| 19 | 26-805412 | SEAL | 1 | ||||||
| 20 | 22-48358T | PLUG | 1 | 22-48358 | |||||
| 21 | 16-97477A3 | STUD KIT | 2 | ||||||
| 22 | 10-806946 | BOLT | 2 | ||||||
| 23 | 12-861854 | 525-12-861854 |
WASHER | 2 | 12-91964 | ||||
| 24 | 807097T | CONNECTOR | 1 | 806917T | |||||
| 25 | 12-20084 | WASHER | 5 | ||||||
| 26 | 11-826709111 | 700-21664 |
NUT | 3 | 11-45592 | ||||
| 27 | 806915 | SHAFT | 1 | ||||||
| 28 | 12-79552 | WASHER | 1 | ||||||
| 29 | 806916T | PLATE | 1 | ||||||
| - | 27-75611A88 | 700-39017 | ENGINE GASKET SET - Overhaul | 1 |
