5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Starter Motor

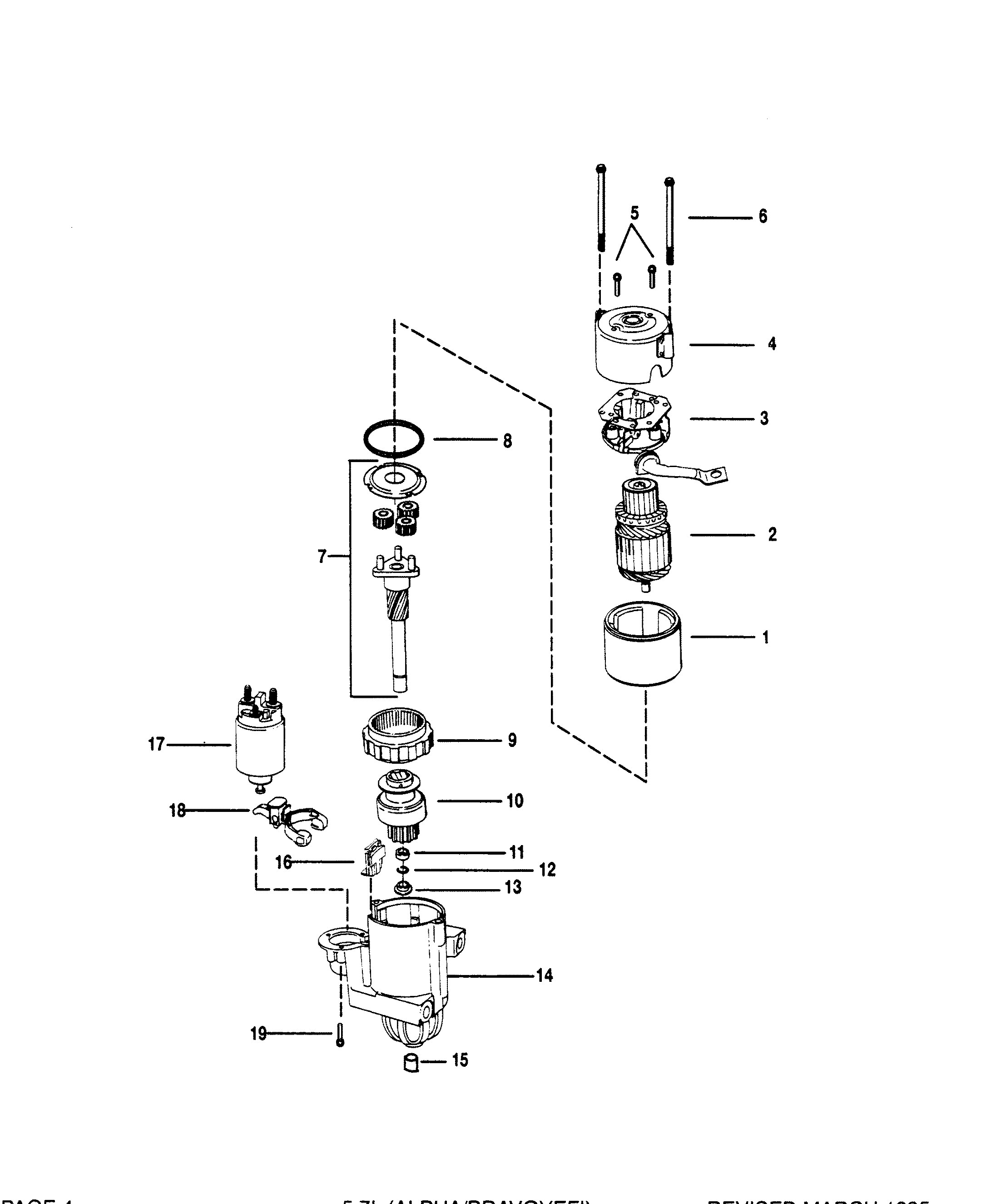

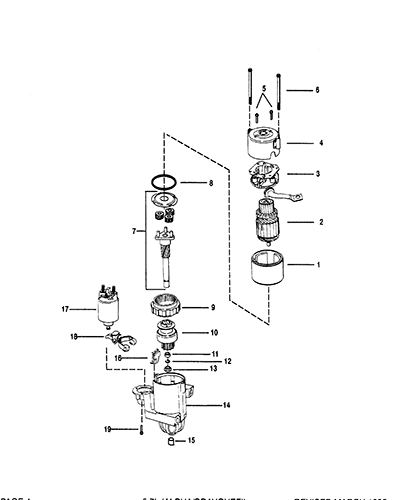

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | 620-5399M | 676-9-15907 | 602-10099MD | STARTER MOTOR | 1 | 50-806964A3 | ||
| 2 | NSS | NOT SOLD SEPARATE, ARMATURE | 1 | This part is not sold separate | |||||
| 3 | NSS | NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING | 1 | This part is not sold separate | |||||
| 4 | NSS | NOT SOLD SEPARATE, FRAME | 1 | This part is not sold separate | |||||
| 5 | NSS | NOT SOLD SEPARATE, SCREW | 2 | This part is not sold separate | |||||
| 6 | NSS | NOT SOLD SEPARATE, THRU BOLT | 2 | This part is not sold separate | |||||
| 7 | NSS | NOT SOLD SEPARATE, SHAFT AND GEAR | 1 | This part is not sold separate | |||||
| 8 | NSS | NOT SOLD SEPARATE, GASKET | 1 | This part is not sold separate | |||||
| 9 | NSS | NOT SOLD SEPARATE, GEAR | 1 | This part is not sold separate | |||||
| 10 | NSS | NOT SOLD SEPARATE, DRIVE | 1 | This part is not sold separate | |||||
| 11 | 33291 | COLLAR | 1 | ||||||
| 12 | 53-33290 | RETAINING RING | 1 | ||||||
| 13 | NSS | NOT SOLD SEPARATE, THRUST COLLAR | 1 | This part is not sold separate | |||||
| 14 | 809459 | DRIVE HOUSING | 1 | This Part is No Longer Available | |||||
| 15 | 23-814476 | BUSHING | 1 | This Part is No Longer Available | |||||
| 16 | NSS | NOT SOLD SEPARATE, GROMMET | 1 | This part is not sold separate | |||||
| 17 | 809463A1 | 676-9-15125 |
700-72450 |
SOLENOID | 1 | 8094631 | |||
| 18 | NSS | NOT SOLD SEPARATE, LEVER | 1 | This part is not sold separate | |||||
| 19 | NSS | NOT SOLD SEPARATE, SCREW | 3 | This part is not sold separate |
