5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Exhaust System

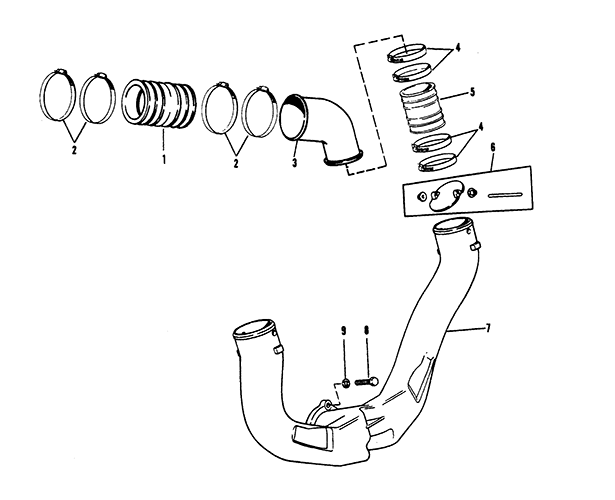

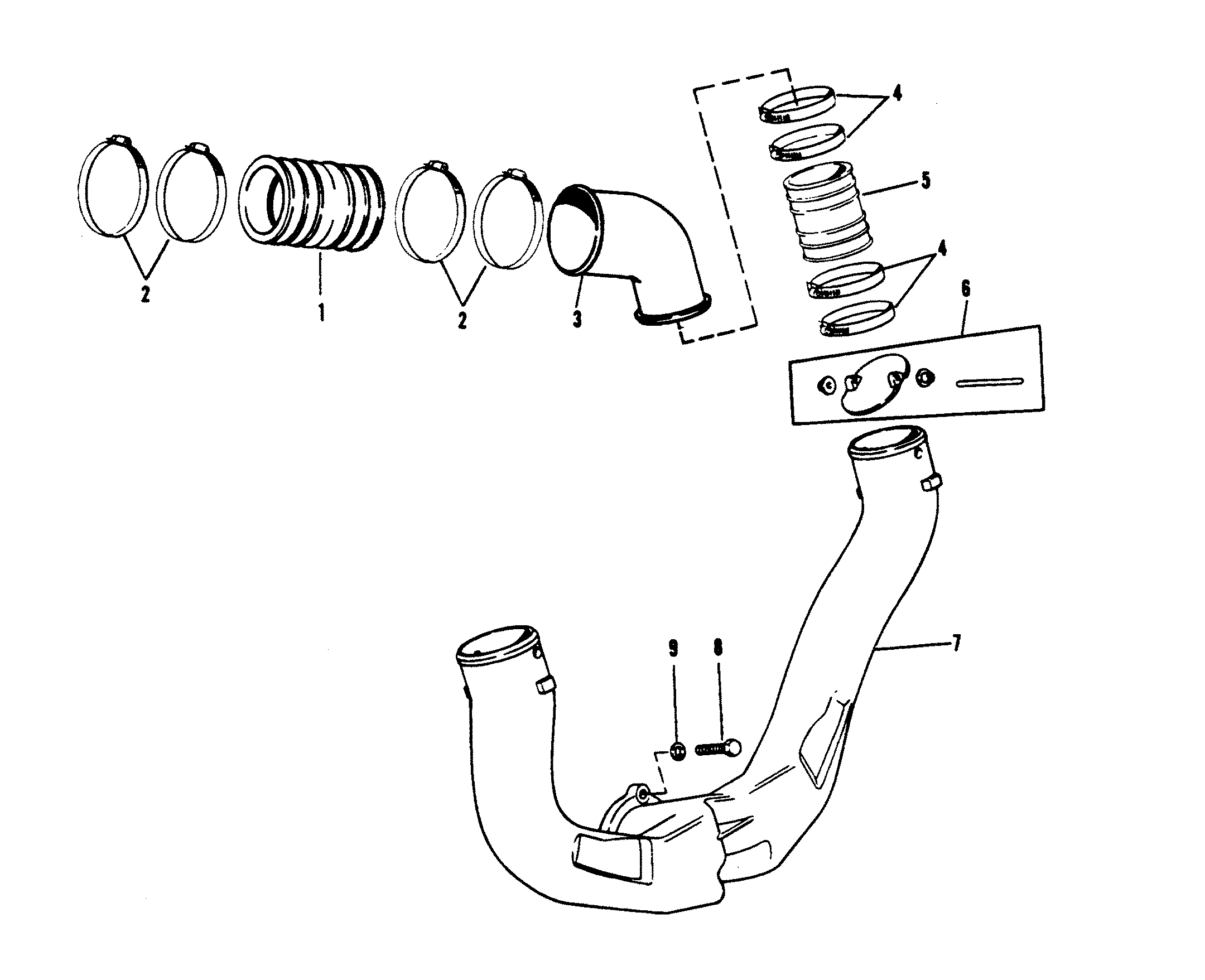

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-44348001



TUBE 2 32-44348T
2 54-815504372

700-01100

CLAMP 8

3 11086T



EXHAUST ELBOW (PORT) 1

3 14343T



EXHAUST ELBOW (STARBOARD) 1

4 54-815504372

700-01100
CLAMP 8

5 32-14358001



EXHAUST TUBE 2 32-14358T
6 807166A3
676-9-42802


WATER SHUTTER 1 14348A1
7 807130A4



EXHAUST PIPE 1 44266T1
8 10-58640



SCREW 4

9 13-41471



LOCKWASHER 4
