5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Thermostat Housing (Standard Cooling)

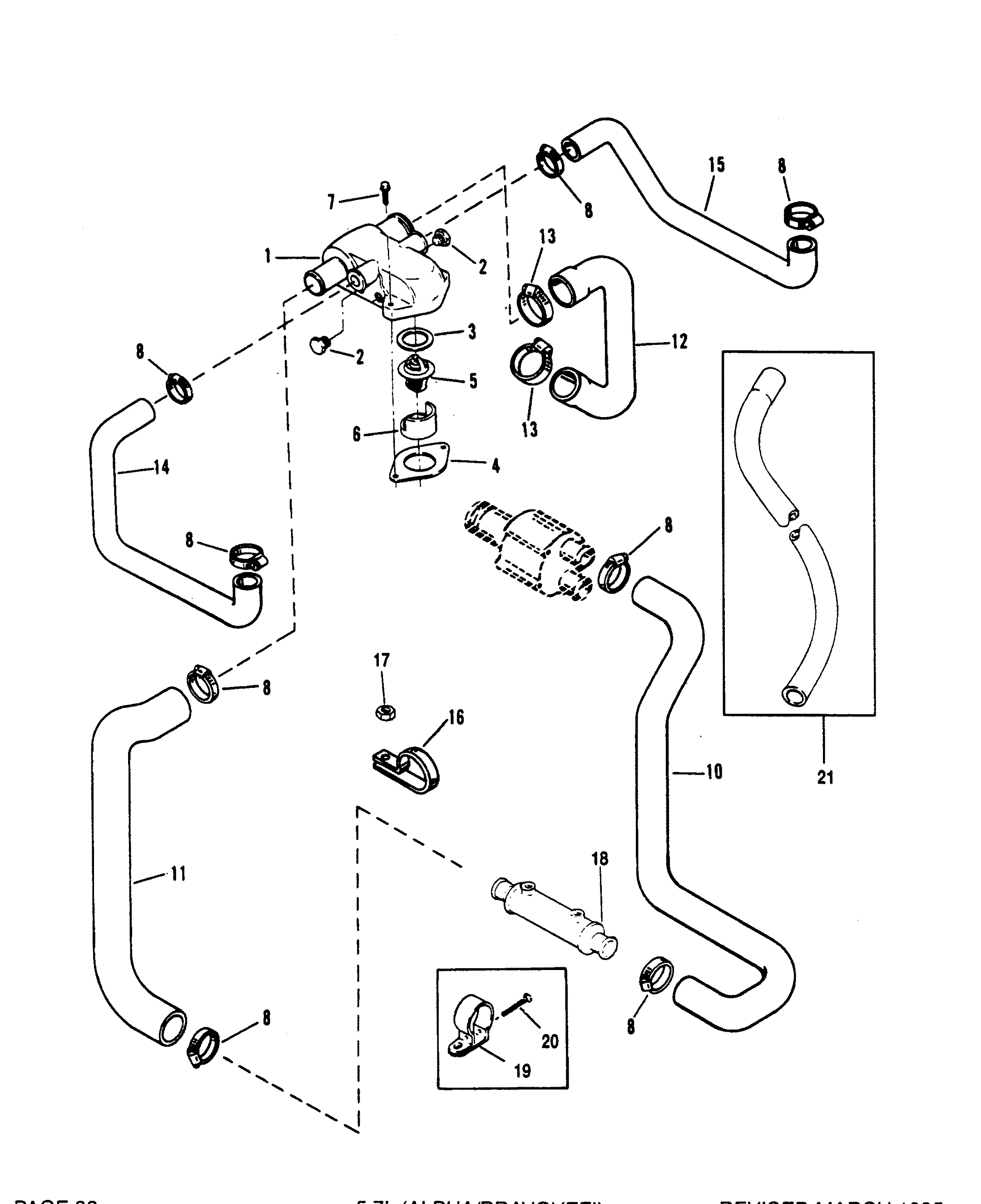

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806235A1 | THERMOSTAT HOUSING ASSEMBLY | 1 | ||||||
| 2 | 22-32803 | 700-21894 |
PIPE PLUG | 2 | |||||
| 3 | 27-806871 | 700-13101 |
GASKET | 1 | 2 | ||||
| 4 | 27-530451 | GASKET | 1 | 2 | |||||
| 5 | 807252T2 | 676-9-43002 |
700-13100 |
THERMOSTAT | 1 | 8072522 | |||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-98794 | 676-9-78129 |
700-28300 |
525-10-98794 |
SCREW | 2 | |||
| 8 | 54-815504220 | CLAMP | AR | ||||||
| 10 | 32-887952 | HOSE-OIL COOLER TO SEA PUMP (BRAVO) | 1 | ||||||
| 11 | 32-806856 | 676-9-44054 |
HOSE-OIL COOLER TO THERMOSTAT HOUSING | 1 | |||||
| 12 | 32-861590A05 | 676-9-44053 |
HOSE-THERMOSTAT HOUSING TO WATER PUMP | 1 | 32-806825 | ||||
| 13 | 54-815504232 | CLAMP | 2 | ||||||
| 14 | 32-8066351 | HOSE-THERMOSTAT HOUSING (PORT) | 1 | ||||||
| 15 | 32-8066361 | HOSE-THERMOSTAT HOUSING (STARBOARD) | 1 | ||||||
| 16 | 54-47715 | CLIP | 1 | ||||||
| 17 | 11-29250 | NUT | 1 | ||||||
| 18 | 99356A2 | 542-99356A2 |
COOLER | 1 | |||||
| 19 | 65970T1 | BRACKET | 1 | ||||||
| 20 | 10-41408 | SCREW | 1 | ||||||
| 21 | 32-96246A4 | 676-9-44074 |
HOSE-OIL COOLER TO DRIVE UNIT (ALPHA) | 1 | |||||
| - | 27-75611A88 | 700-39017 |
ENGINE GASKET SET - Overhaul | 1 |
