5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Cylinder Head And Rocker Cover

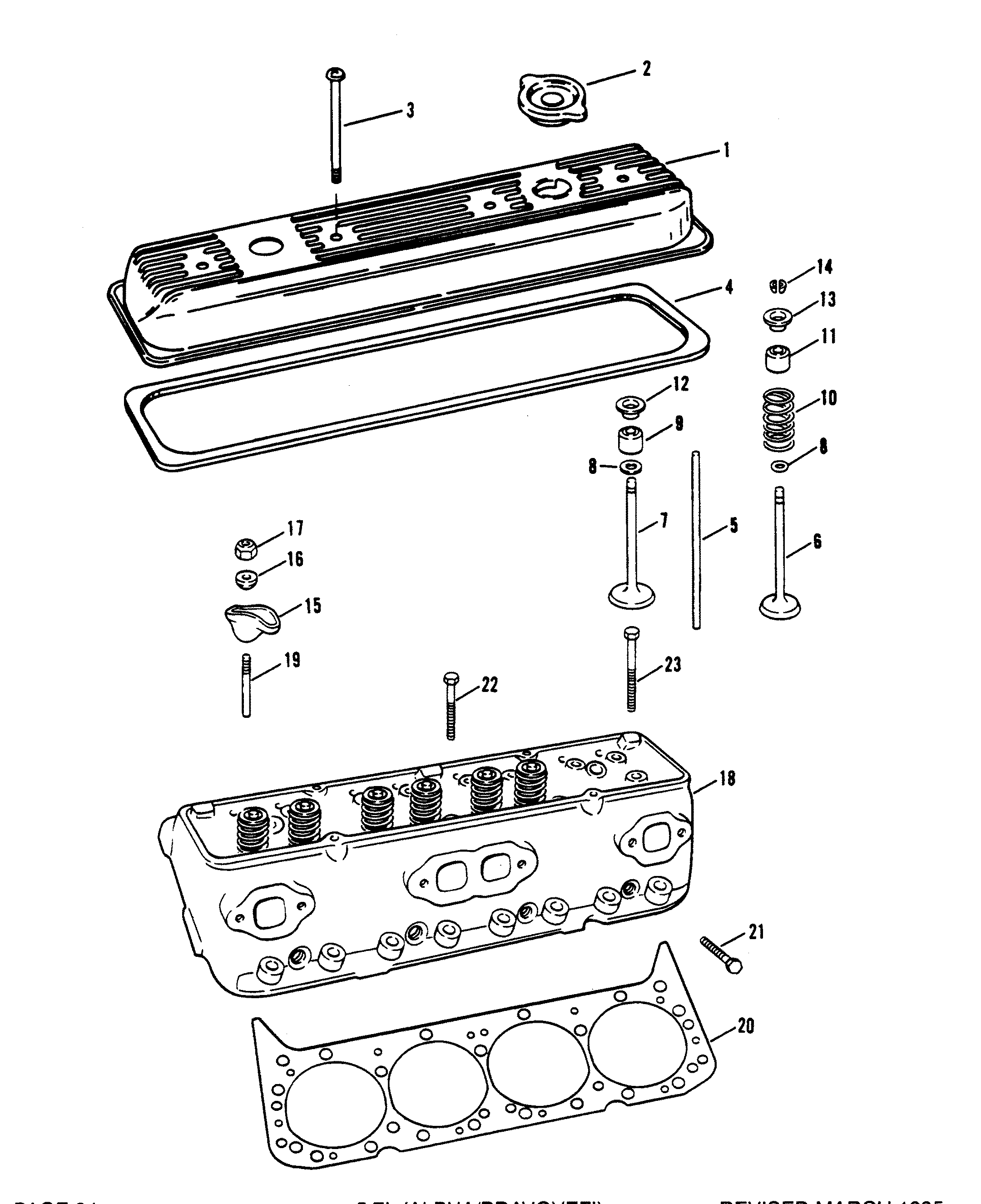

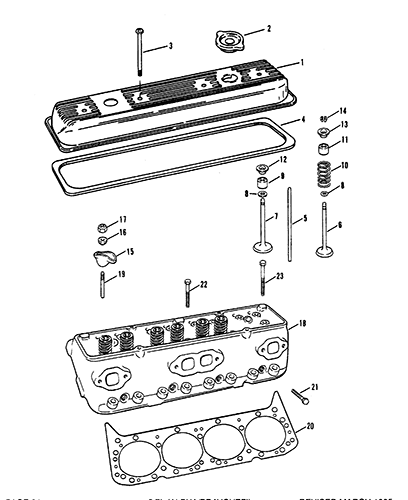

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 809995 | ROCKER COVER | 2 | 814505A1 | |||||
| 2 | 36-18710002 | CAP | 2 | 36-18710 | |||||
| 3 | 10-17344 | SCREW | 8 | ||||||
| 4 | 27-17467 | 676-9-61305 |
700-30357 |
GASKET | 2 | 2 | |||
| 5 | 17339 | PUSH ROD | 16 | ||||||
| 6 | 87284 | EXHAUST VALVE (STANDARD) | 8 | ||||||
| 6 | 883265 | EXHAUST VALVE (.015 O.S.) | AR | 87301 | This Part is No Longer Available | ||||
| 7 | 97661 | INLET VALVE (STANDARD) | 8 | ||||||
| 7 | 97662 | INLET VALVE (.015 O.S.) | AR | This Part is No Longer Available | |||||
| 8 | 26-34217 | SEAL (INLET AND EXHAUST) | 16 | 2 | |||||
| 9 | 8M0050563 | SEAL (INLET) | 8 | 26-97664 | 2 | ||||
| 9 | 26-852936 | SEAL (EXHAUST) | 8 | This Part is No Longer Available | |||||
| 10 | 24-48347 | SPRING (INLET AND EXHAUST) | 16 | ||||||
| 11 | 34518001 | SHIELD | 16 | 34518 | |||||
| 12 | 48348 | CAP | 8 | This Part is No Longer Available | |||||
| 13 | 11965 | ROTATOR (EXHAUST) | 8 | This Part is No Longer Available | |||||
| 14 | 28-547971 | KEY | 32 | 28-54797 | |||||
| 15 | 35329 | ROCKER ARM | 16 | ||||||
| 16 | 35331 | BALL UNIT | 16 | ||||||
| 17 | 11-34516 | NUT | 16 | ||||||
| 18 | 938-883490R1 | CYLINDER HEAD ASSEMBLY | 2 | 938-9718 | |||||
| 19 | 16-34522 | STUD (.003 O.S.) | AR | ||||||
| 19 | 16-34521 | STUD (.013 O.S.) | AR | This Part is No Longer Available | |||||
| 20 | 75611001 | GASKET | 2 | 27-75611 | 2 | ||||
| 21 | 10-11968 | BOLT (1-3/4") | 16 | ||||||
| 22 | 10-119671 | BOLT (3") | 4 | 10-11967 | |||||
| 23 | 10-11966 | BOLT (3-3/4") | 14 | ||||||
| - | 27-75611A88 | 700-39017 |
ENGINE GASKET SET - Overhaul | 1 |
