5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Exhaust Manifold And Exhaust Elbow (Bravo)

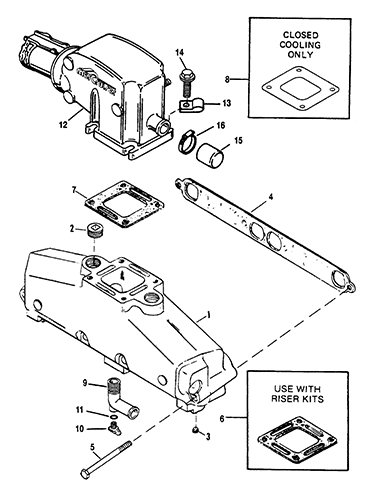

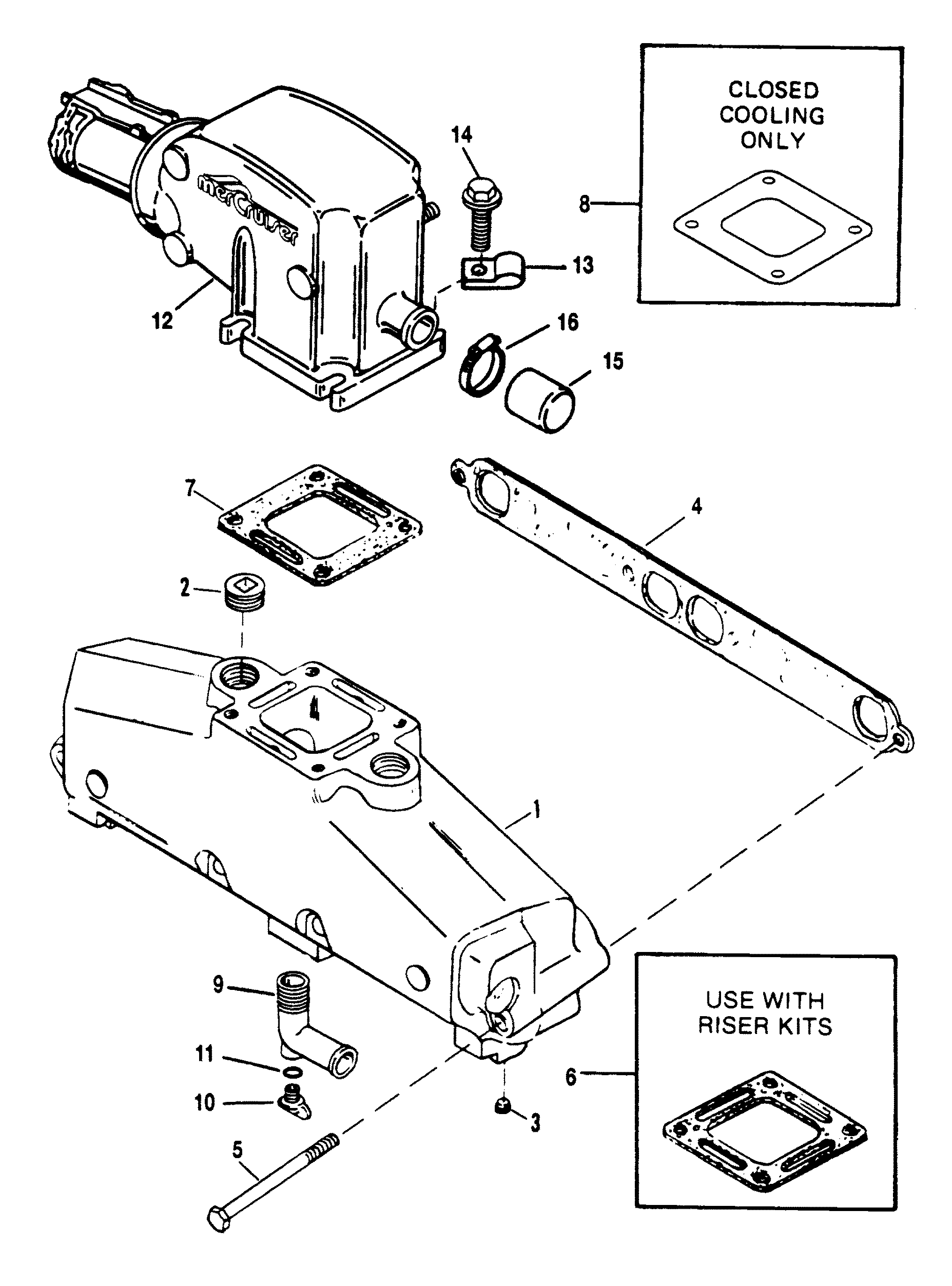

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 860246A15 | 654-7114A, | 654-7114 | EXHAUST MANIFOLD ASSEMBLY | 2 | 87114A19 | ||||
| 2 | 22-41622 | 676-9-41205 |
700-21892 |
PLUG | AR | 22-33198A1 | ||||
| 3 | 22-36382 | 700-21887 |
PIPE PLUG | 4 | ||||||
| 4 | 27-33395 | 676-9-61401 | 700-31100 | GASKET | 2 | 2 | ||||
| 5 | 10-53728 | 700-21745 |
SCREW (4-5/8") | 8 | ||||||
| 6 | 27-863726 | 676-9-61414 |
GASKET (USE WITH RISER KITS) | 2 | 27-818832 | |||||
| 7 | 27-863724 | 676-9-61413
|
GASKET (STANDARD COOLING) | 2 | 27-41813 | 2 | ||||
| 8 | 27-8637251 | GASKET (CLOSED COOLING) | 2 | 27-41811 | 2 | |||||
| 9 | 22-862210A01 | 676-9-41206 |
700-13991 |
DRAIN ELBOW | 2 | 22-806926A1 | ||||
| 10 | 22-806608A02 | 700-13992 |
DRAIN PLUG | 2 | 22-806608A1 | |||||
| 11 | 25-32509 | QUAD RING | 2 | 25-806609 | ||||||
| 12 | 816900A5 | EXHAUST ELBOW ASSEMBLY (PORT) | 1 | This Part is No Longer Available Click here for service bulletin | ||||||
| 12 | 816900A9 | EXHAUST ELBOW ASSEMBLY (STARBOARD) | 1 | This Part is No Longer Available Click here for service bulletin | ||||||
| 13 | 54-73668 | J-CLIP (PORT) | 1 | |||||||
| 14 | 10-98534 | SCREW (2-1/4") | 2 | |||||||
| 14 | 10-865982005 | SCREW (1") | 6 | 10-12244 | ||||||
| 15 | 19-805727001 | RUBBER CAP | 2 | 19-805727 | ||||||
| 16 | 54-815504220 | CLAMP | 2 | |||||||
| - | 807476A7 | RISER EXTENSION KIT (3") | 1 | 93320A7 | EACH KIT CONTAINS 2 RISERS | |||||
| - | 807477A5 | 700-50600 |
RISER EXTENSION KIT (6") | 1 | 93322A5 | EACH KIT CONTAINS 2 RISERS | ||||
| - | 27-75611A88 | 700-39017 | ENGINE GASKET SET - Overhaul | 1 |
