5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Shift Bracket (Alpha)

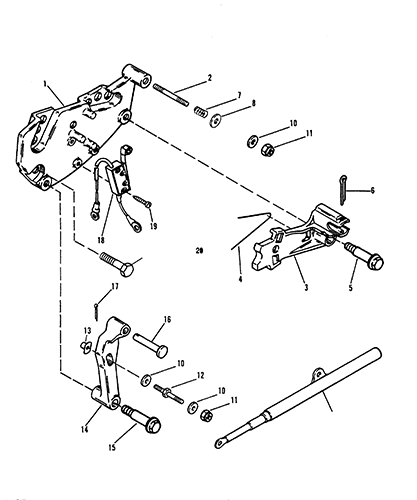

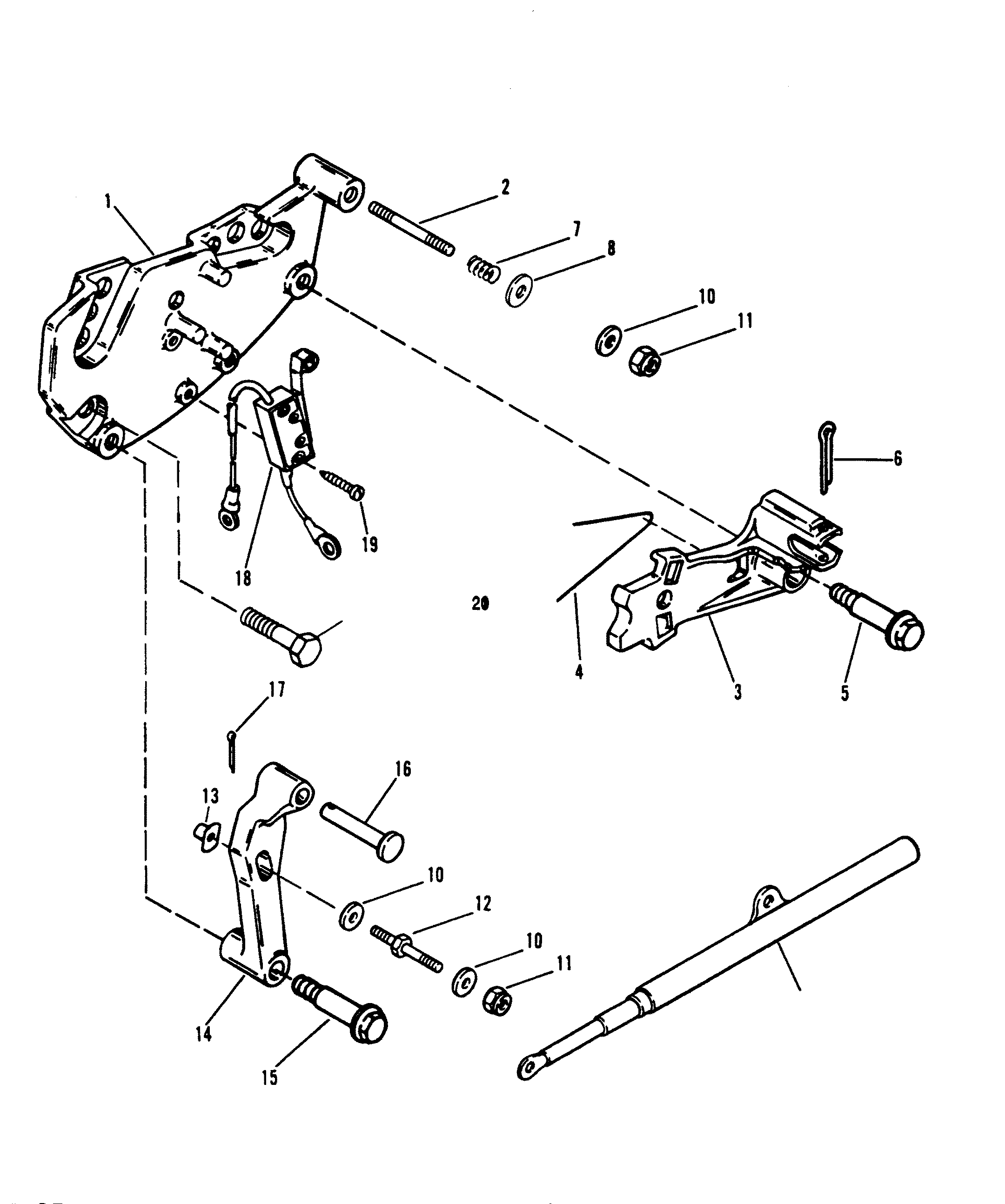

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807962A15



SHIFT BRACKET ASSEMBLY 1 99237A10
2 16-8140021



STUD (2-7/8") 1
No longer made, limited availability
3 13051A4



ACTUATING LEVER ASSEMBLY 1
This Part is No Longer Available
4 24-862850



SPRING 1 24-45599
5 10-13743



SHOULDER SCREW 1

6 18-328571



COTTER PIN 1 18-32857
7 24-98880



SPRING 1

8 12-56720



WASHER 1

10 12-35462



WASHER 3

11 11-8267119



NUT 2 11-13438
12 16-96112



STUD 1

13 11-63341



TEE NUT 1

14 13898T06



SHIFT LEVER ASSEMBLY 1 13898A3
15 10-13743



SHOULDER SCREW 1

16 17-814001



SHOULDER PIN 1

17 18-210711



COTTER PIN 1 18-21071
18 87-806702A3



SWITCH ASSEMBLY 1
This Part is No Longer Available
19 10-30902



SCREW 2

20 813995A1



SPRING GUIDE ASSEMBLY 1

21 10-657461



SCREW 3
